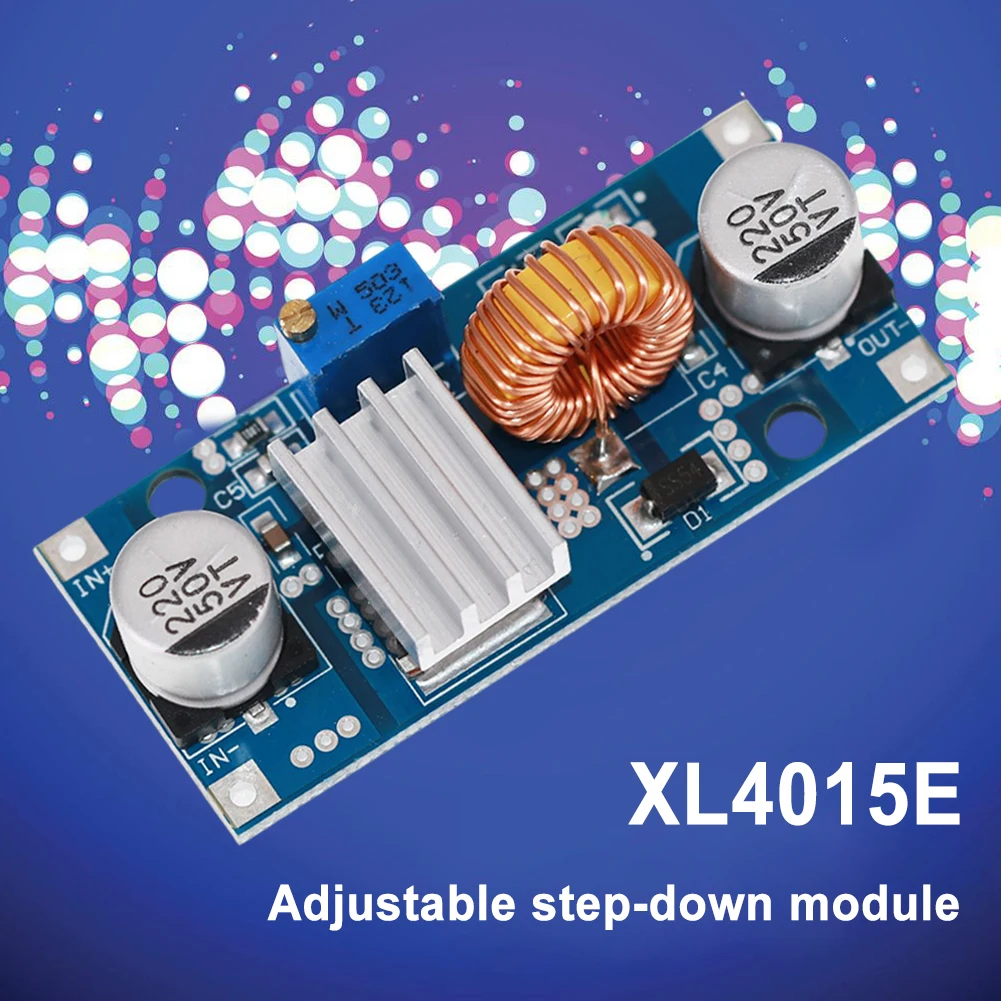

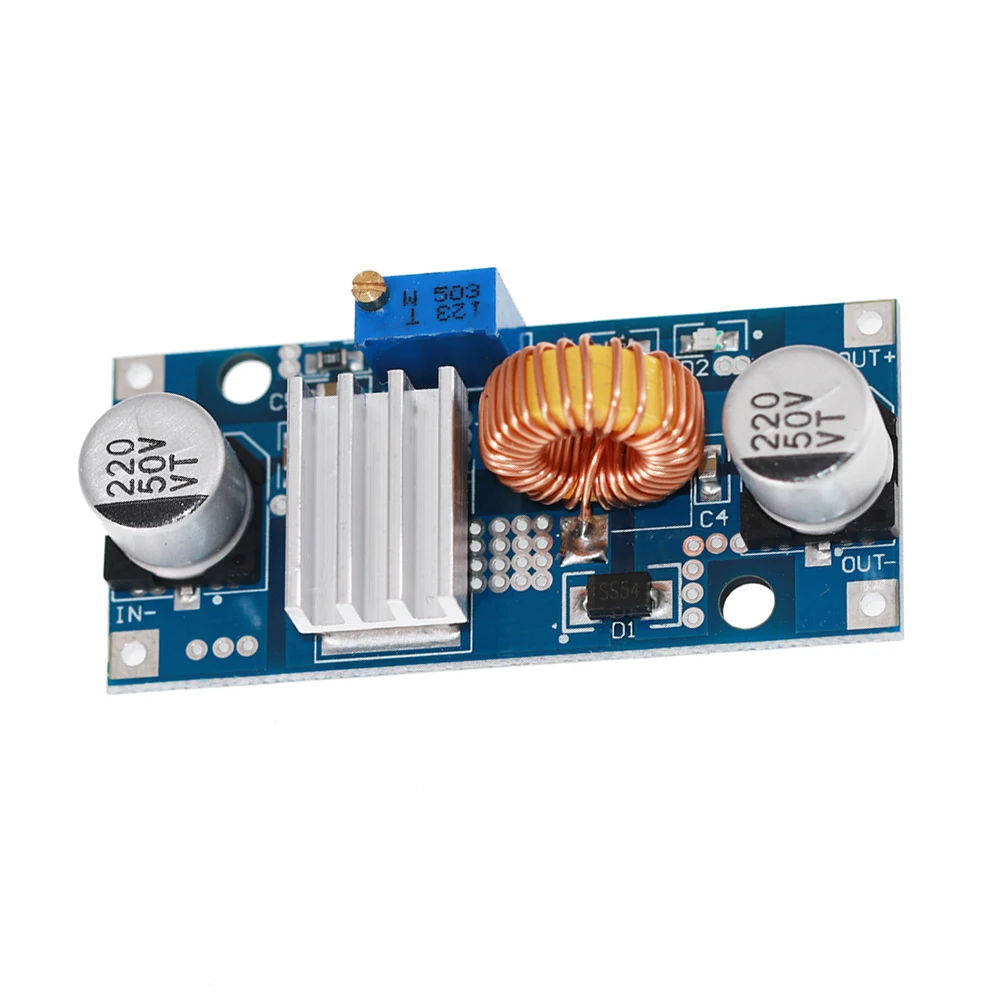

XL4015E 5A 4-38V DIY Adjustable Regulated Power Supply 12V To 3.3V/5V Adjustable Step-Down Module 36V To 12V 24V To 5V/12V

XL4015E 5A 4-38V DIY Adjustable Regulated Power Supply DC-DC Adjustable Step-Down Module 12V To 3.3V/5V 36V To 12V 24V To 5V/12V

Features:

1.High Power and Efficiency: With a maximum output current of 5A and up to 96% efficiency, this XL4015E adjustable module provides high power and efficient voltage regulation for various applications.
2.Wide Voltage Range: The module supports input voltages ranging from 4V to 38V, making it suitable for use with different power sources, including batteries, power transformer, and other industrial devices.
3.Versatile Applications: This non-isolated module can be used for various voltage reduction applications, such as DIY adjustable power supplies, automotive power supplies, and industrial equipment power supplies, among others.
4.Built-in Protections: The module comes with built-in short-circuit protection and over-temperature protection, ensuring safe operation during usage.
5.Compact Design: The module has a compact design, measuring only 542318mm and weighing 16g, making it easy to install and transport. The power indicator light and free heatsink add to the convenience of the product.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Supply Voltage: 4-38 V
Dissipation Power: 75W
Model Number: Adjustable Power Supply Module
Module performance and features:
Module properties: non-isolated step-down module (BUCK)
Input voltage: 4-38V (please try not to exceed 38V input)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A, it is recommended to use within 4.5A
Output power: It is recommended to use within 75W.
Working temperature: -40-85 degrees
Working frequency: 180KHz
Conversion efficiency: up to 96% (efficiency is related to input and output voltage, current, and differential pressure)
Load regulation: S (I) ≤ 0.8%
Voltage adjustment rate: S(u)≤0.8%
Power Indicator: Yes
Short circuit protection: yes (limit current 8A)
Over-temperature protection: Yes (automatically shut down the output after over-temperature)
Input reverse connection protection: None, (if necessary, please connect a high-current diode in series)
Installation method: 2 pieces of 3mm screws
Wiring method: welding, V-IN is input, V-OUT is output
Module size: 54*23*18mm 2.13*0.91*0.91in
Weight: 16g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
