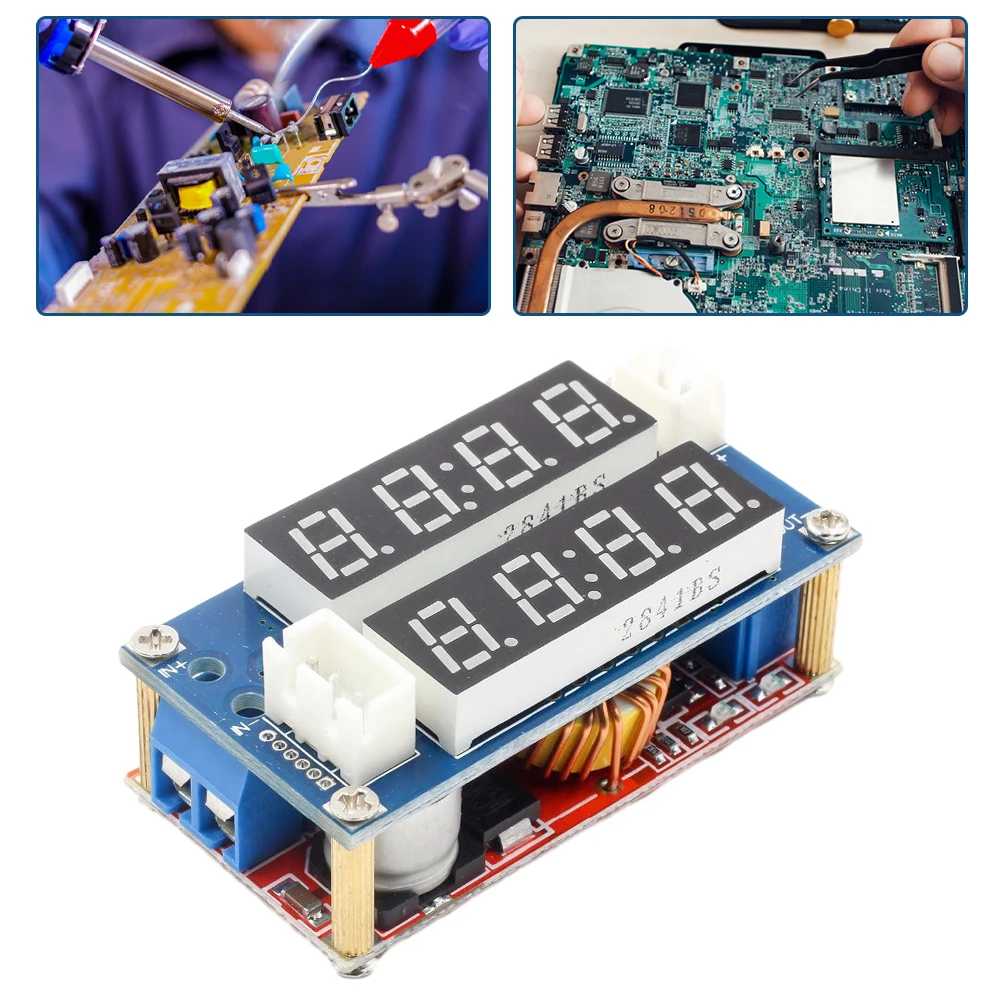

XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 1
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 2

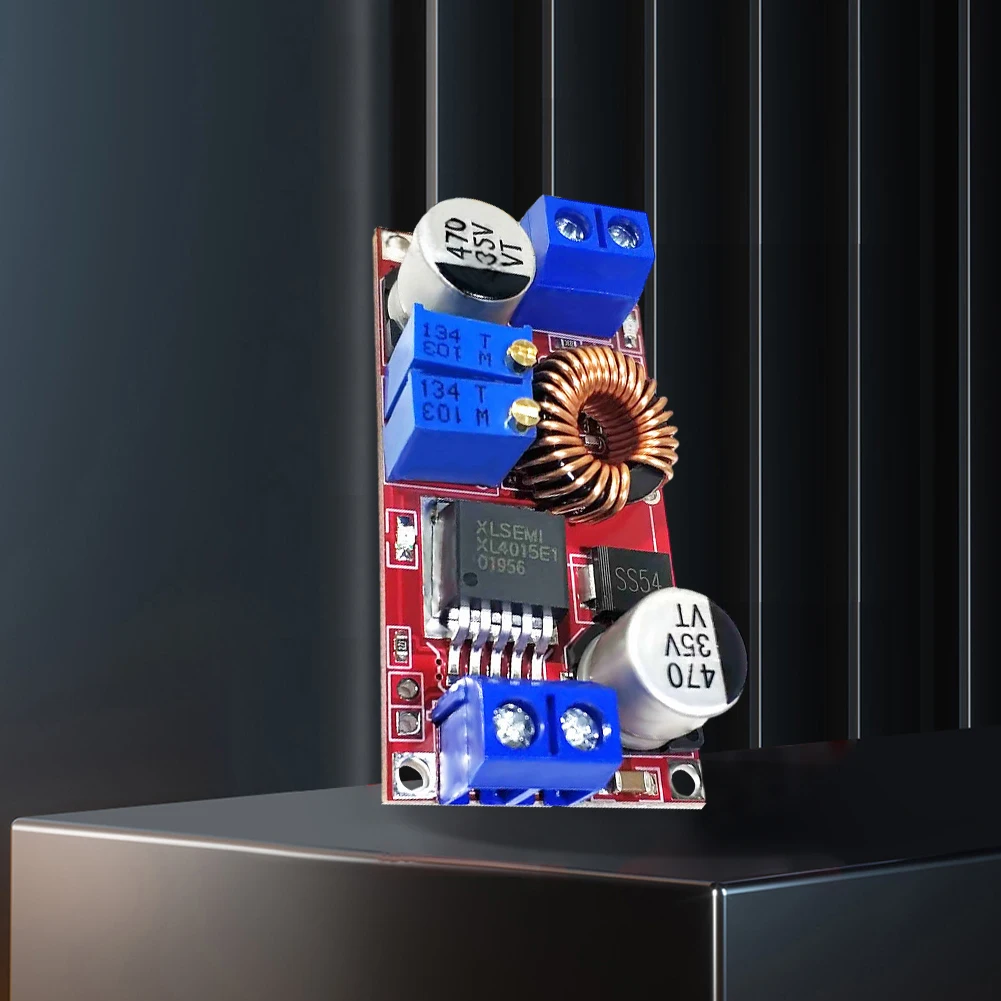

XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 3

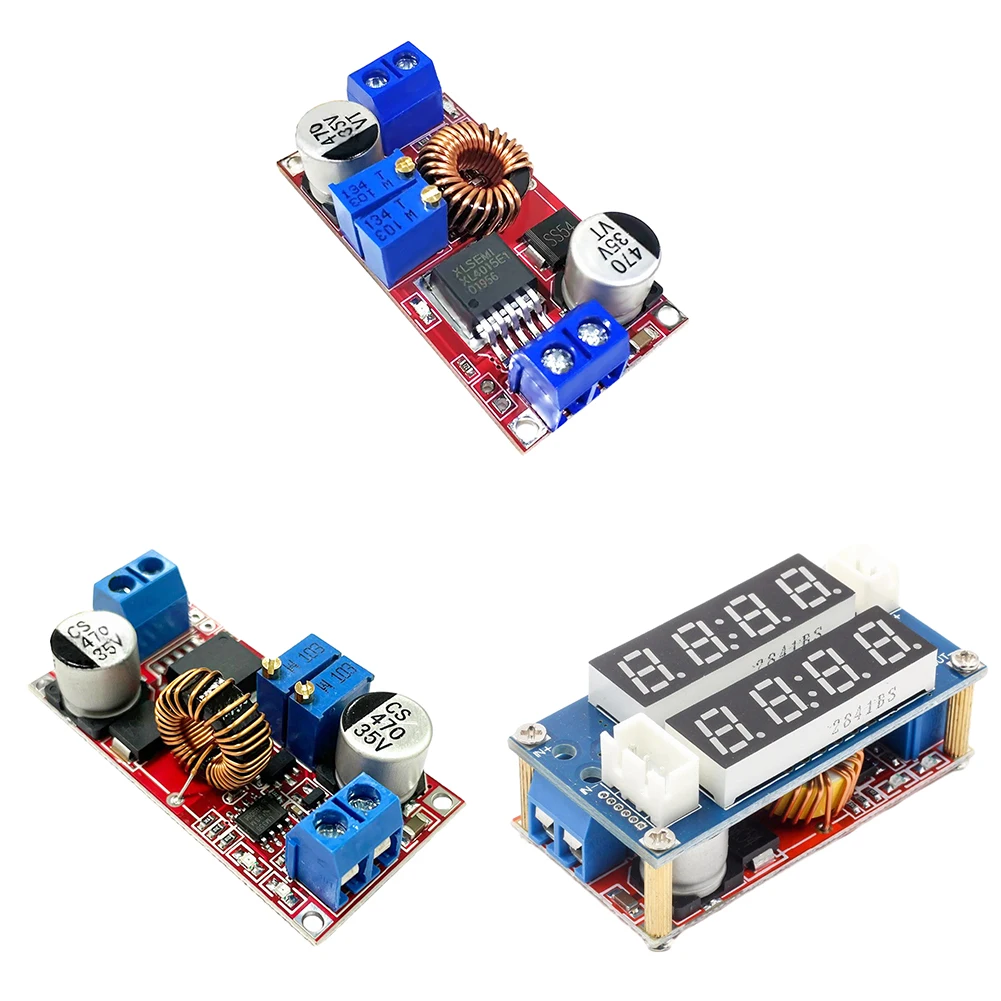

XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 4

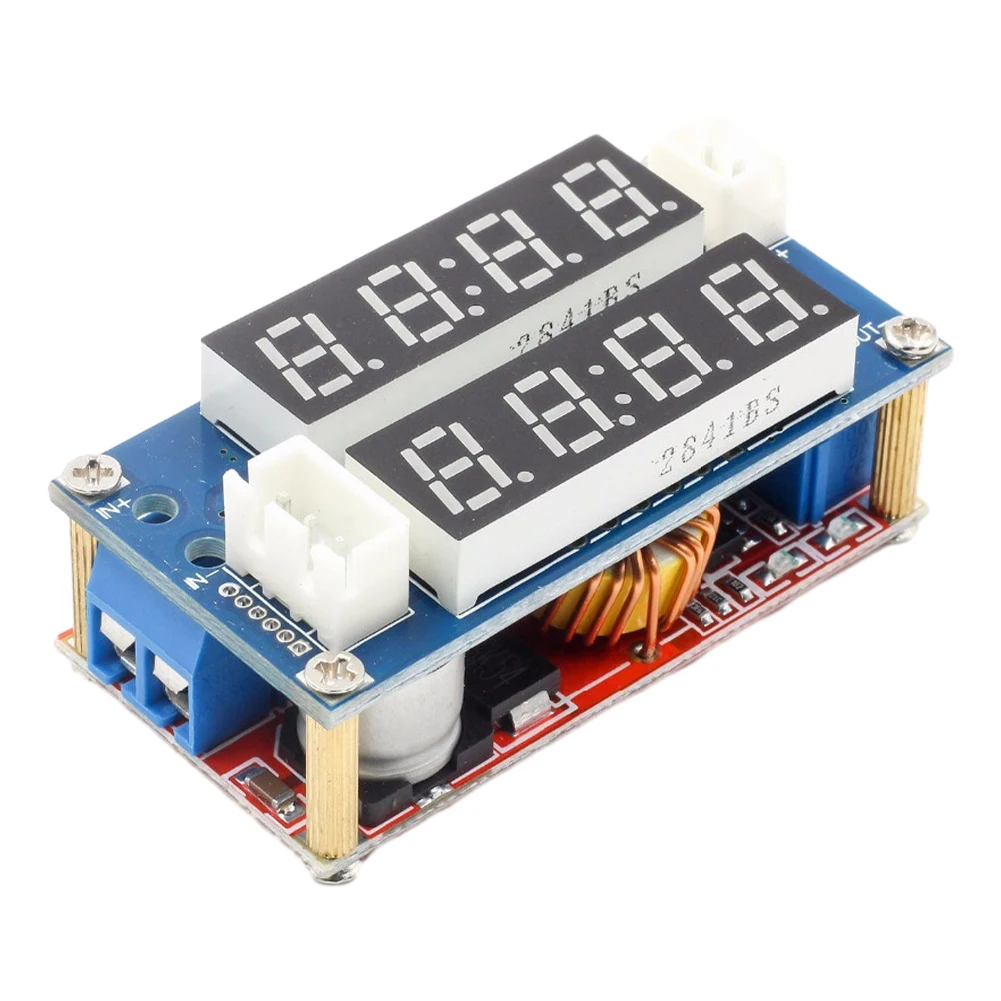

XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 5
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 6
Click to enlarge
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 2
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 3
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 4
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 5
XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display - Image 6

XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display

SKU: 797186

Add to compare
Add to wishlist
14 People watching this product now!

Payment Methods:

Description

XL4015 CC CV Lithium Battery Step Down Charging Board 5A DC-DC LED Power Converter Module Adjustable with LED Display

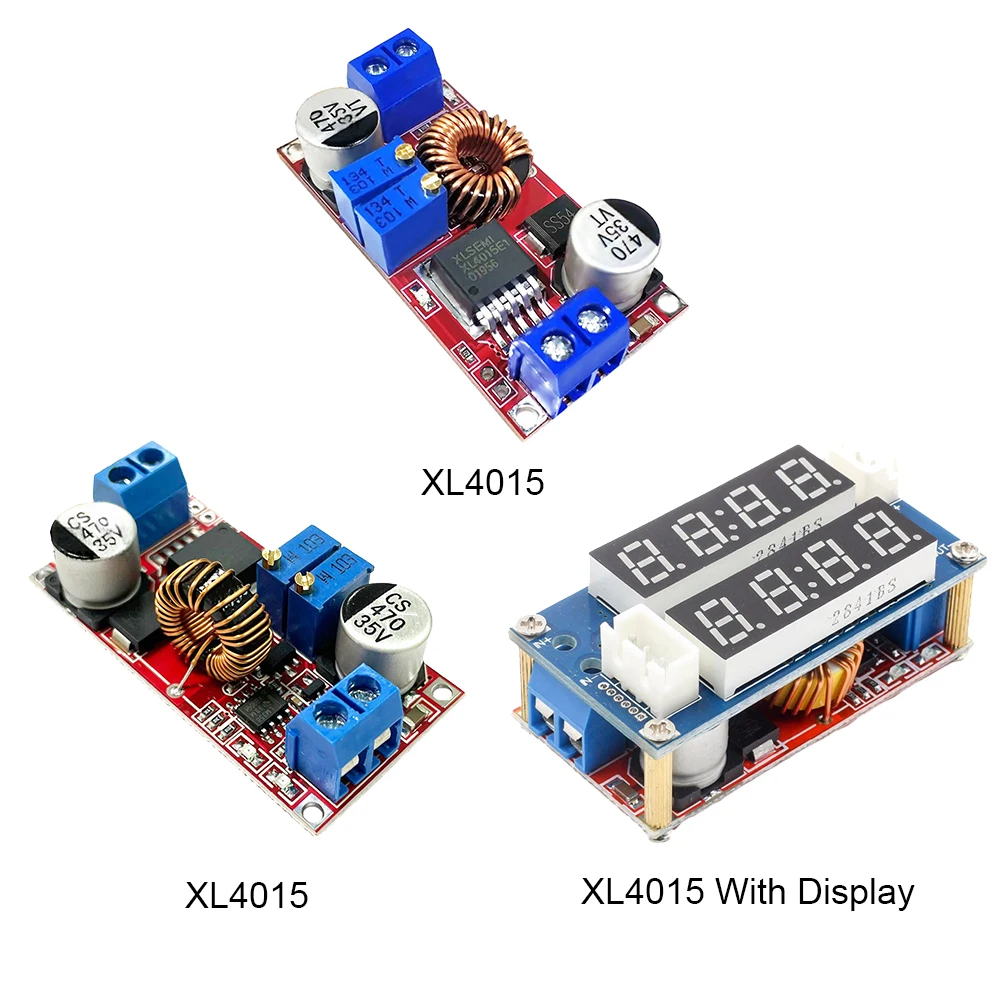

(Horizontal/Vertical/with LED)–DC to DC Power Converter Module
XL4015 CC CV LED Driver Step Down Charging Board 5A CC CV Lithium Battery Step Down Charging Board Adjustable with LED Display
Features:
1.High Power, Low Ripple: Experience the superior capabilities of our XL4015 5A DC to DC power converter module, delivering high power output with minimal ripple for reliable performance in demanding applications.
2.Three-in-One Functionality: Enjoy the versatility of this CC CV LED driver step down charging board, serving as a robust voltage regulator with overcurrent protection, a flexible lithium battery charger suitable for various battery types and solar/wind energy applications, and a high-power LED constant current driver for exceptional lighting solutions.
3.Constant Voltage and Current Modes: Profit from the lithium charger step down module’s dual-mode operation, allowing precise control in both constant voltage and constant current modes. An intuitive indicator light keeps you informed about the currently active mode.
4.Adjustable Charging Parameters: As a CC CV lithium battery step down charging board, easily customize the float charging voltage and charging current to suit your specific needs. A dedicated indicator light provides clear status updates, indicating whether the battery is actively charging or fully charged.

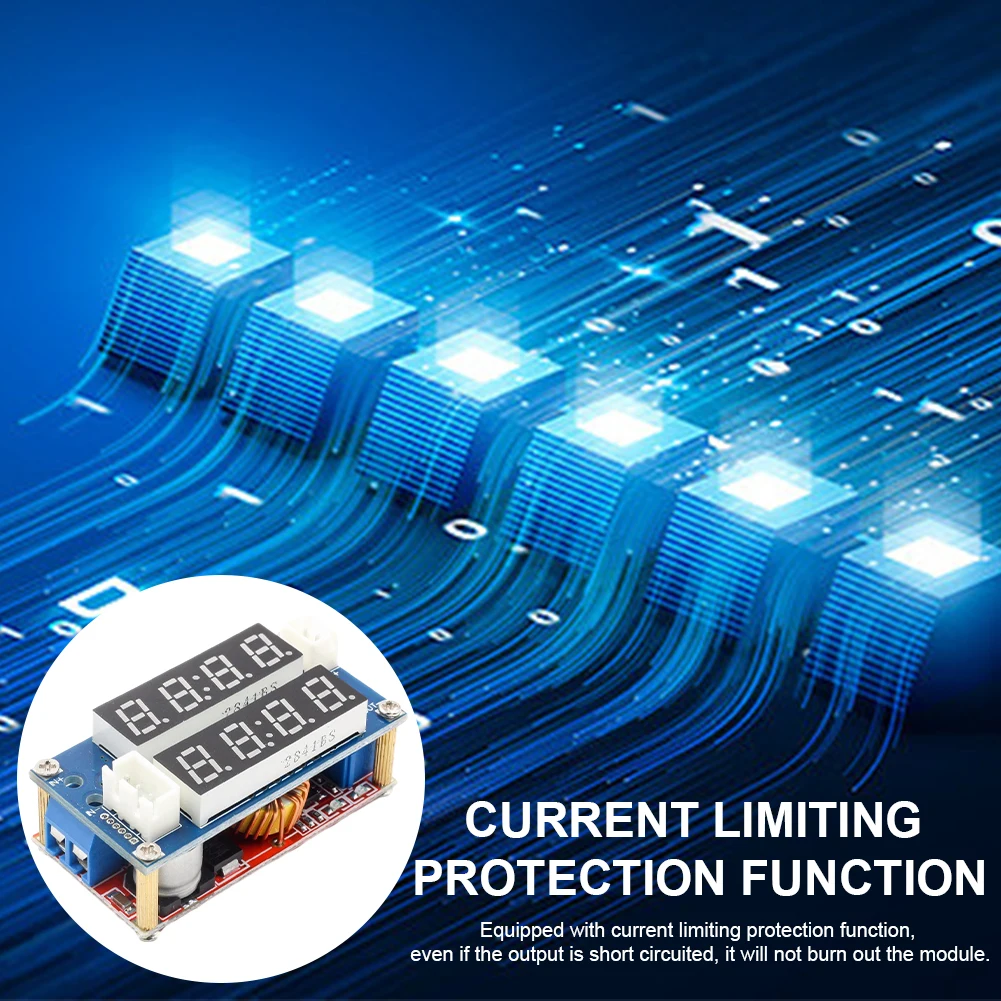

5.Built-in Current Limiting Protection: Rest easy knowing that our high power DC-DC buck converter board incorporates reliable current limiting protection, safeguarding against damage even in the event of an output short circuit. Your board remains safe and secure, ensuring long-lasting performance and peace of mind.

Specification:
Origin: Mainland China
Type: Module
Condition: New
1. Input Mode: In+Input Positive, In-Input Negative
2. Output Mode: OUT+Output Positive, OUT-Output Negative
3. Input Voltage: 4-38V
4. Output Voltage: 1.25-36V Continuously Adjustable
5. Output Current: Adjustable
6. Output Power: Maximum 75W
7. Operating Temperature: -40~+85 Degrees
8. Operating Frequency: 180KHz
9. Conversion Efficiency: Up To 96%
10. Short-Circuit Protection: Yes (Limit Current 8A)
11. Over-Temperature Protection: Yes (Automatically Shut Down The Output After Over-Temperature)
12. Input Reverse Protection: No, (If Necessary, Please Input Series Of High-Current Two Tubes)
13. Installation: Four 3mm Dowels
14. Wiring: Terminal Or Welding Terminal, V-IN For Input, V-OUT For Output.
15. Module Size: 51*26*8mm/1.99*1.01*0.31in
16. Weight: 25g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
