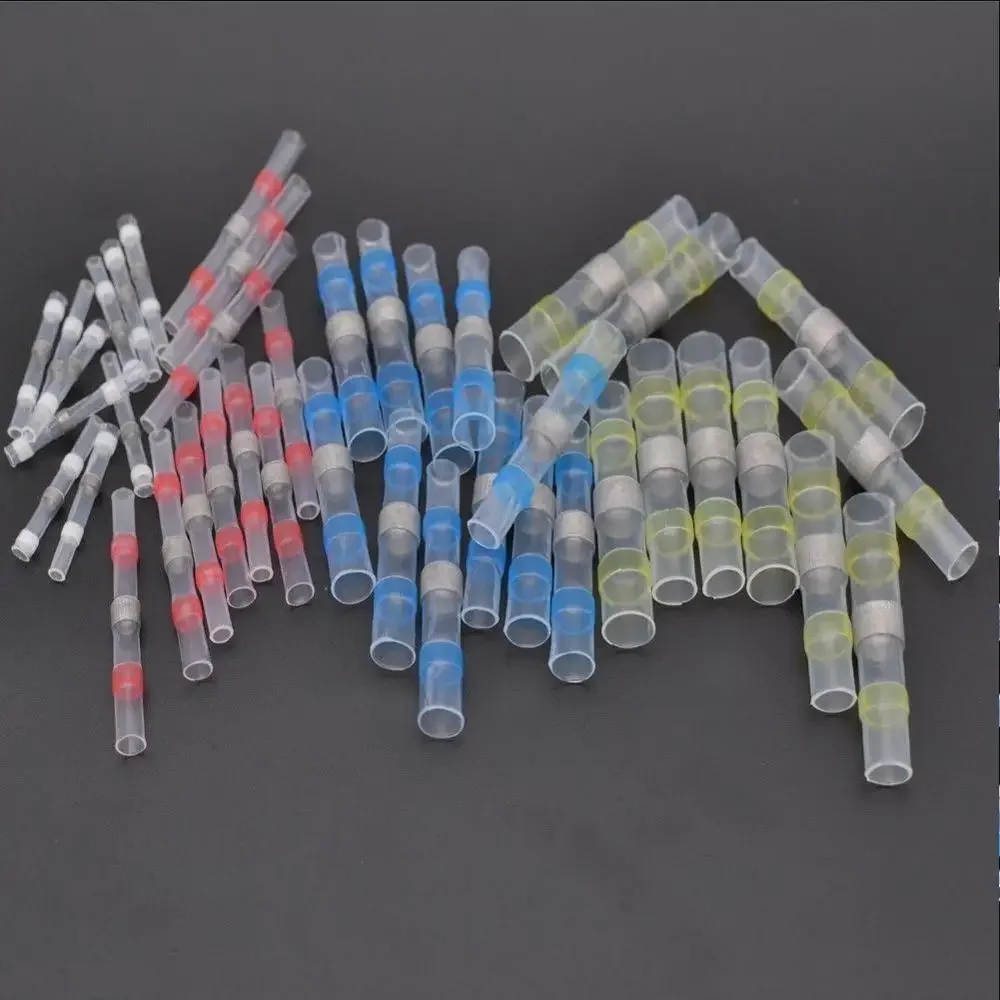

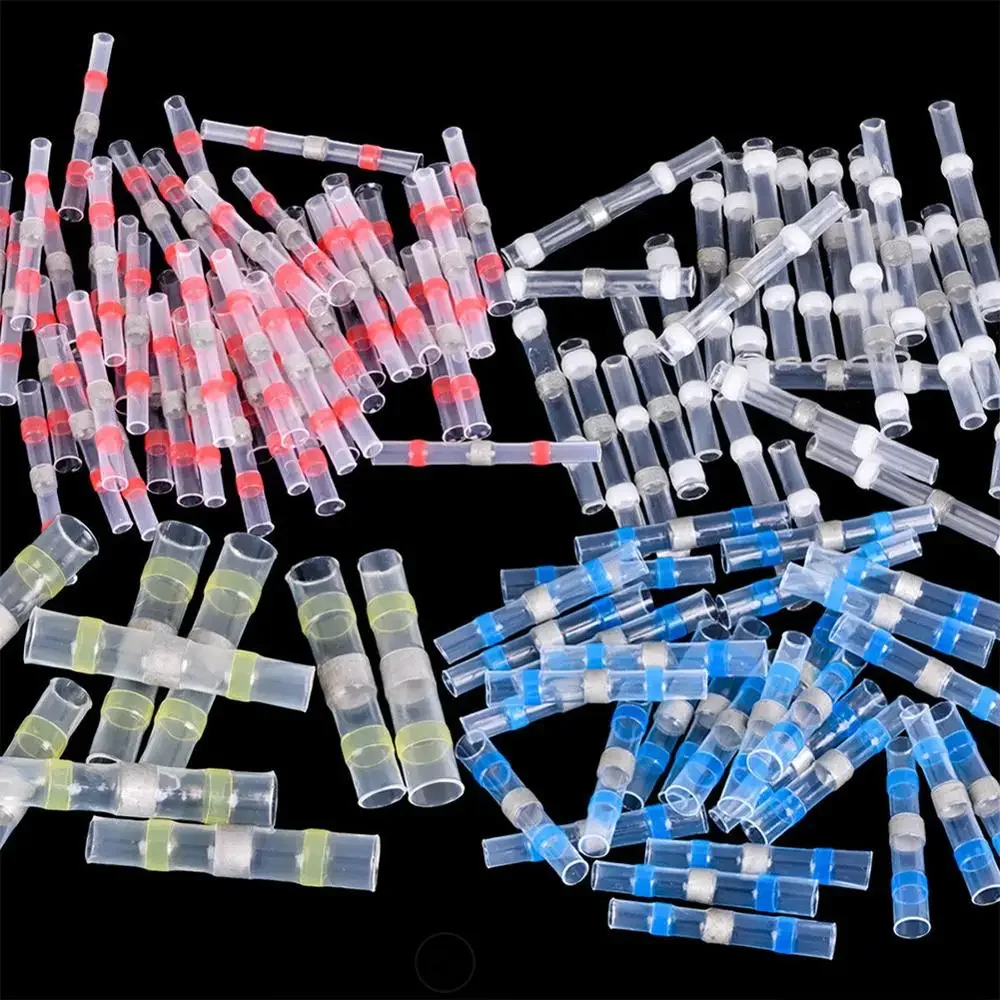

Waterproof Solder Seal Heat Shrink Butt Connectors Lug Terminals Electrical Wire Conector Car Insulated Terminal
Payment Methods:
Description
If you want more item, please contact us,we will add the quantity and give you the cheaper price

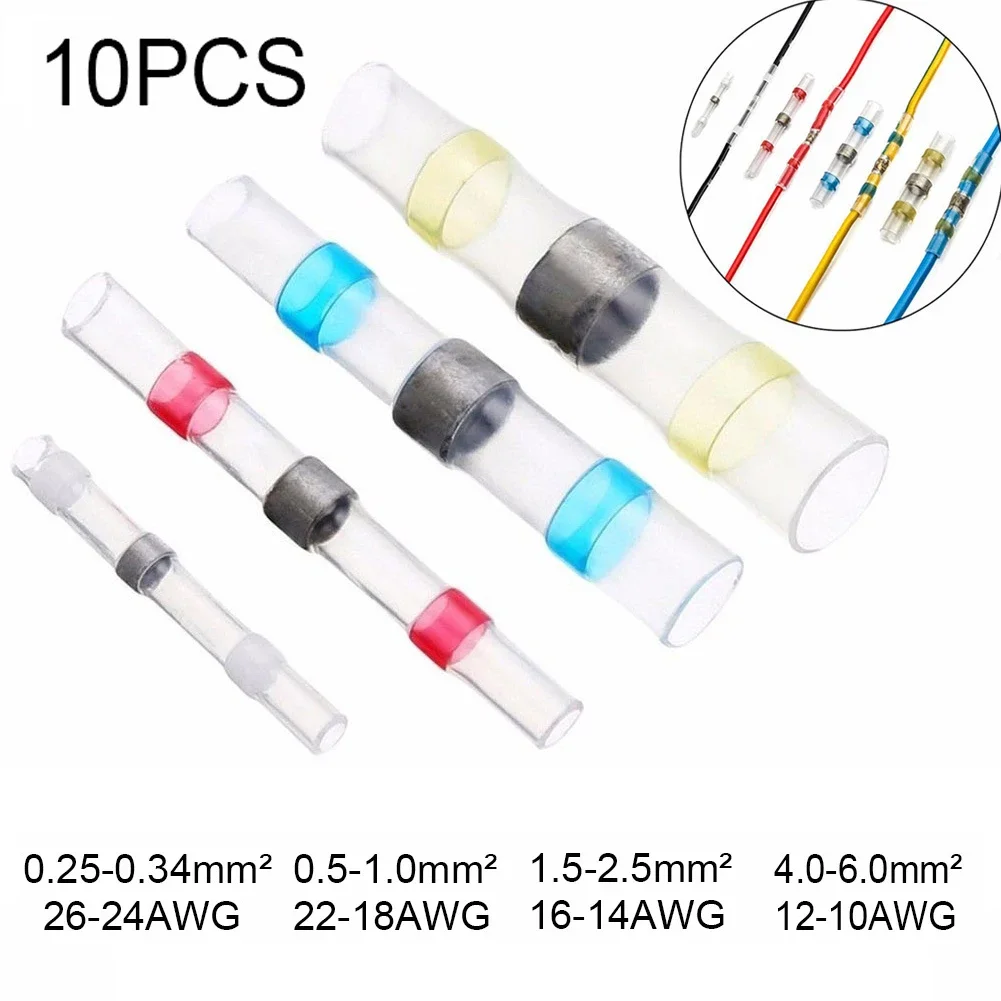

Size Selection
Cross-section
26-24 AWG Wire : 0.25-0.34mm²
22-18 AWG Wire : 0.5-1.0mm²
16-14 AWG Wire : 1.5-2.5mm²
12-10 AWG Wire : 4.0-6.0mm²
10-6 AWG Wire : 6.0-14.0mm²
8-4 AWG Wire : 8.0-22.0mm²
26-24 AWG ( 0.25-0.34mm²）
22-18 AWG(0.5-1.0mm²)
16-14 AWG (1.5-2.5mm²)
12-10 AWG (4.0-6.0mm²)
10-6 AWG (6.0-14.0mm²)
8-4 AWG (8.0-22.0mm²)
Specification
Specification:
Insulation: PE
Plating:Tin
Terminal Body: copper
Operating temperature range: :-55℃ – 125℃
Minimum shrink temperature: 80°C
Minimum temperature for solder to melt: 138°C
Complete melting temperature for solder: ＞160℃
Dielectric strength: 1kv
Protection Degree: IP67
Product Advantage
High Quality – Comply with all relevant European standards; Shrinking ratio: 2:1.
Easy Operation – Transparent sleeve provides precise inspection when strip and insert wires inside.
More Effective Way – An easy one step connection of wires, insulated and sealed.
No Slip Wire Contact – Tubing reduces in size and solder will melt and flow through the stripped wires, ensure strong holding — your wire will never slip out of the connector. Can be ideal used in marine and automobile applications.
Application Method
1.Strip the wire
2.Insert wire into terminal
3.Tighten the wire and move it to the center (Don’t exceed the color mark range ）
4. Heat shrink by hot air gun
