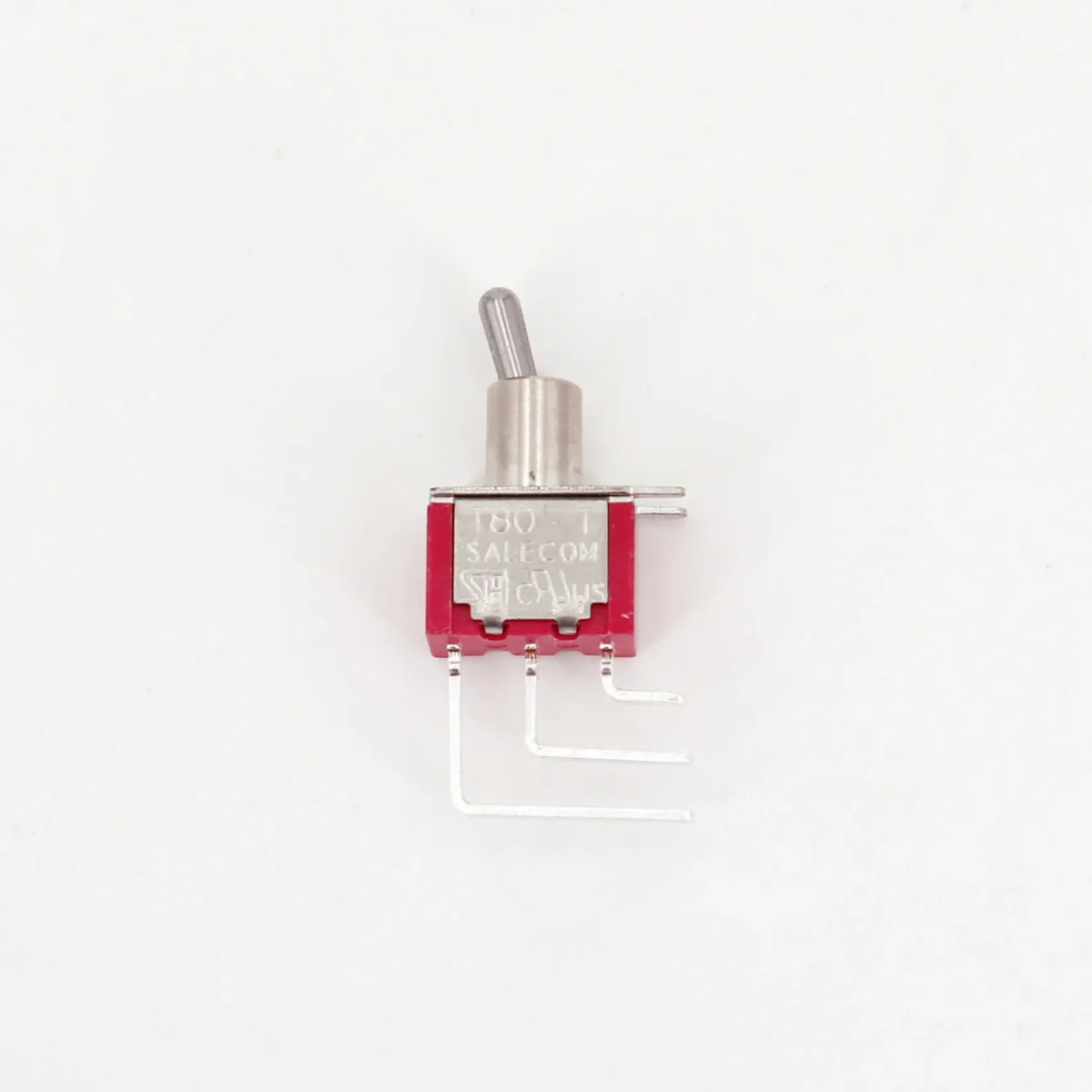

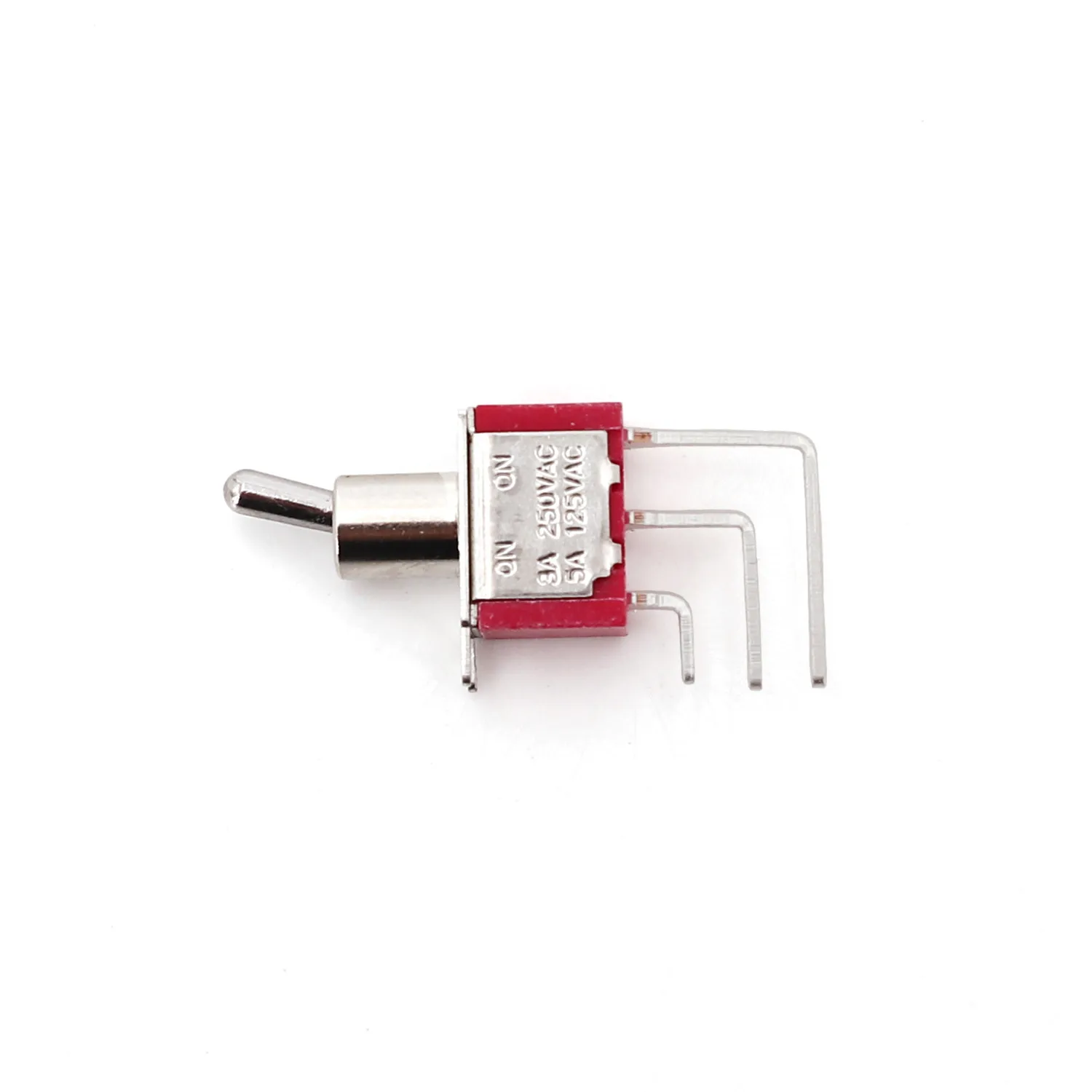

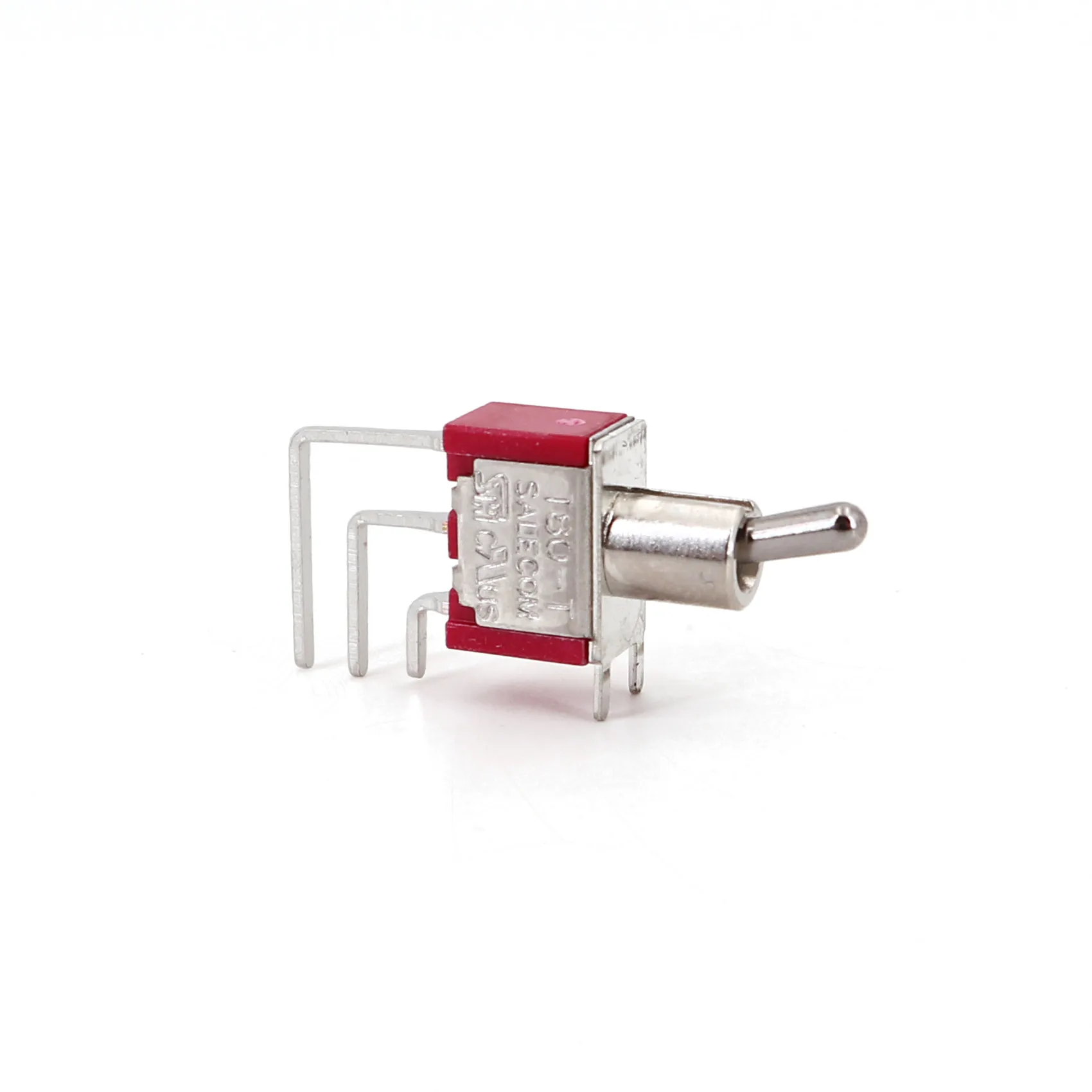

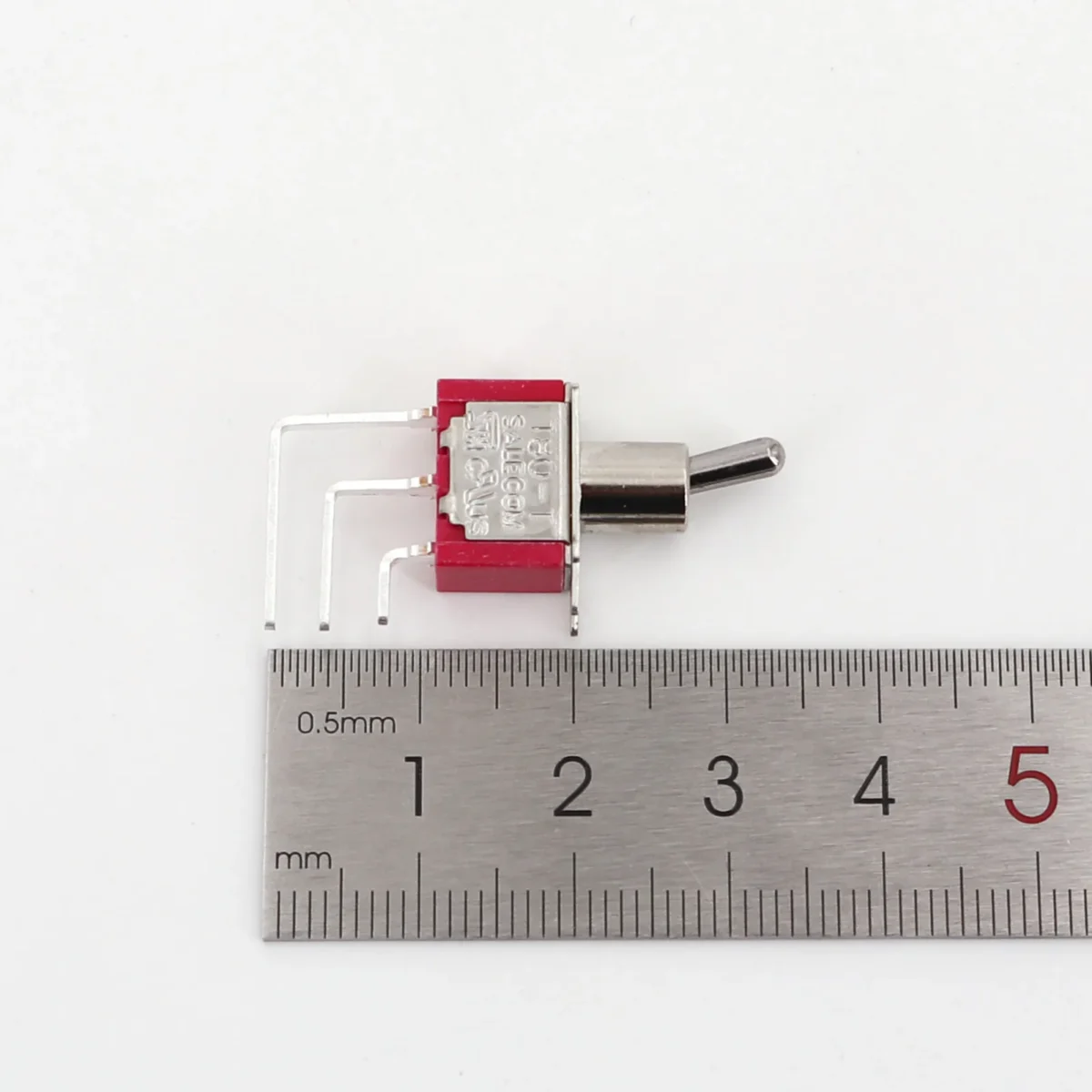

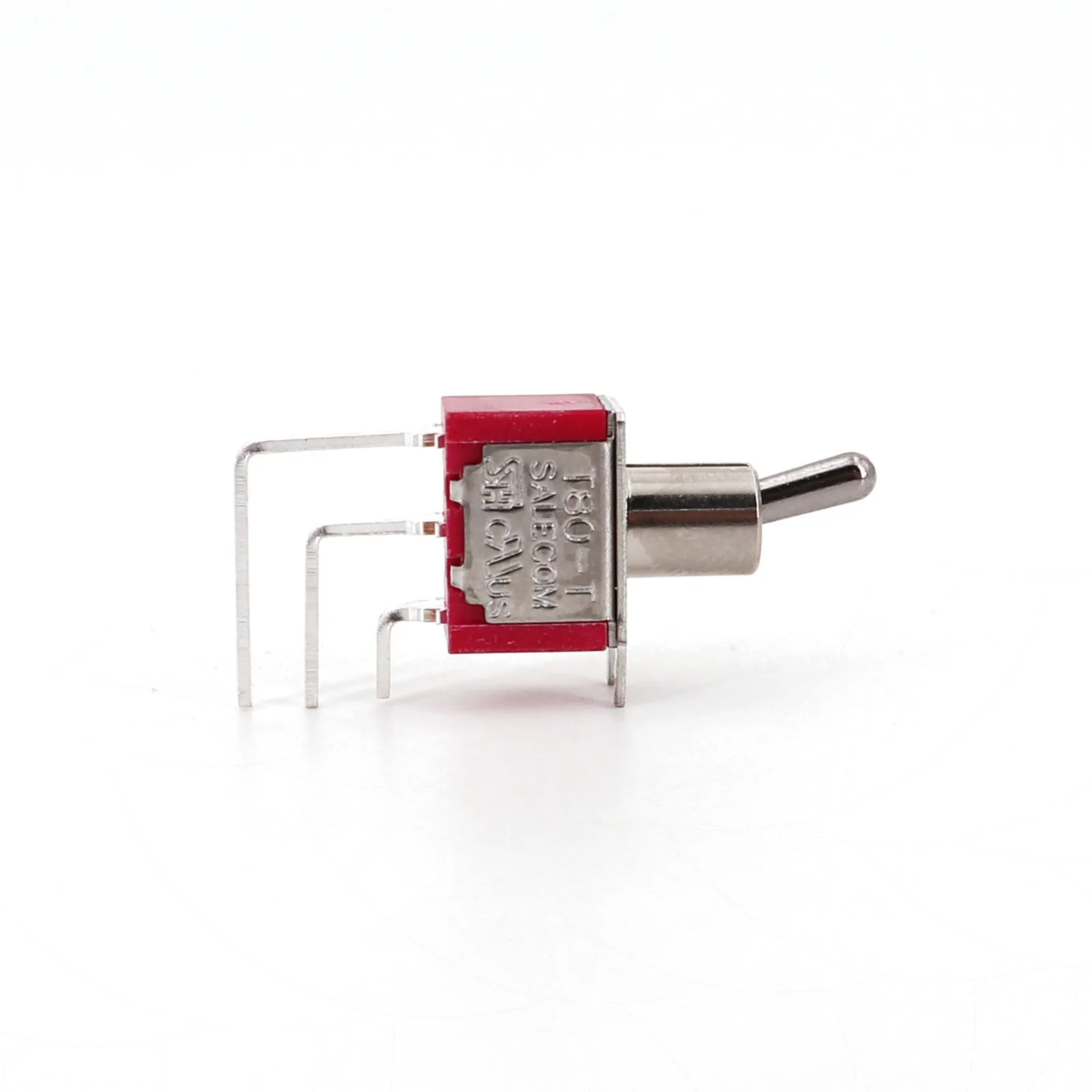

T80-T Vertical Right Angle PCB Mount Miniature Toggle Switch 5A/125VAC

SKU: 113357

18 People watching this product now!

Payment Methods:

Description

T80-T Vertical Right Angle PCB Mount Miniature Toggle Switch 5A/125VACT80-T Vertical Right Angle PCB Mount Miniature Toggle Switch 5A/125VACT80-T Vertical Right Angle PCB Mount Miniature Toggle Switch 5A/125VAC

Type:T80-T Right Angle PCB Mount Mini Toggle Switch

Model

T8019L: 3Pin SPDT ON-ON

T8020L: 3Pin SPDT ON-OFF-ON

T8020LA: 3Pin SPDT MOM-OFF-MOM (Momentary)

T8020LB: 3Pin SPDT ON-OFF-MOM (One Side Momentary)

Handle Length:6.8mm

Contact Material:Copper alloy silver plated

Contact Rating: 5A @125 VAC or 28 VDC

Electrical Life: 50,000 make and break cycles at full load

Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA

Insulation Resistance: 1,000 MΩ min.

Dielectric Strength: 1,500 V RMS @ sea level.

Operating Temperature: -30°C to 85°C

Weight: 3.6g
