Rain Water Sensor Relay Control Module 3.3V-5V Rain Foliar Leaf Moisture Sensor Relay Module LM393 High Sensitivity for Arduino

Rain Drops Detection Moisture Monitor Sensor 3.3V-5V High Sensitivity Monitor Weather Sensor Relay Board for Arduino
Features:
1.High Sensitivity: The raindrops detection sensor module boasts high sensitivity, allowing for quick and accurate detection of raindrops. Some modules offer adjustable sensitivity settings, enabling users to customize the detection level according to different environments.
2.Reliability and Stability: With high-quality materials and reliable manufacturing processes, this rain weather humidity module ensures exceptional stability and reliability, making it suitable for long-term applications.
3.Rapid Response: The rain water sensor relay control module can detect raindrops in real-time and generate corresponding output signals promptly, enabling users to take timely actions based on the detected rainfall.
4.User-Friendly Design: The rain drops detection moisture monitor sensor features a simple interface, making it easy to use. Simply connect the power supply and read the output signal. It is widely applicable in various fields such as smart homes, automated irrigation systems, weather monitoring, and vehicle raindrop sensing.
5.Low Power Consumption and Compact Design: This raindrops controller sensor module is designed with low power consumption, saving energy and ideal for battery-powered or long-running applications. Raindrop detection sensor modules are typically compact and lightweight, making them suitable for space-constrained scenarios.

Specification:
Origin: Mainland China
Sensor Using FR-04 Double-Sided Material, Area 5.0*4.0cm, And With Nickel-Plated Surface Treatment, With More Performance On Oxidation Resistance, Conductivity, And Life;
Comparator Output, Clean Signal, Good Waveform, Drive Ability, More Than 15ma.
With Potentiometer To Adjust The Sensitivity;
Operating Voltage 3.3V-5V
Output Form: Digital Switching Output (0 And 1) And Analog A0 Voltage Output;
With Fixed Bolt Holes For Easy Installation

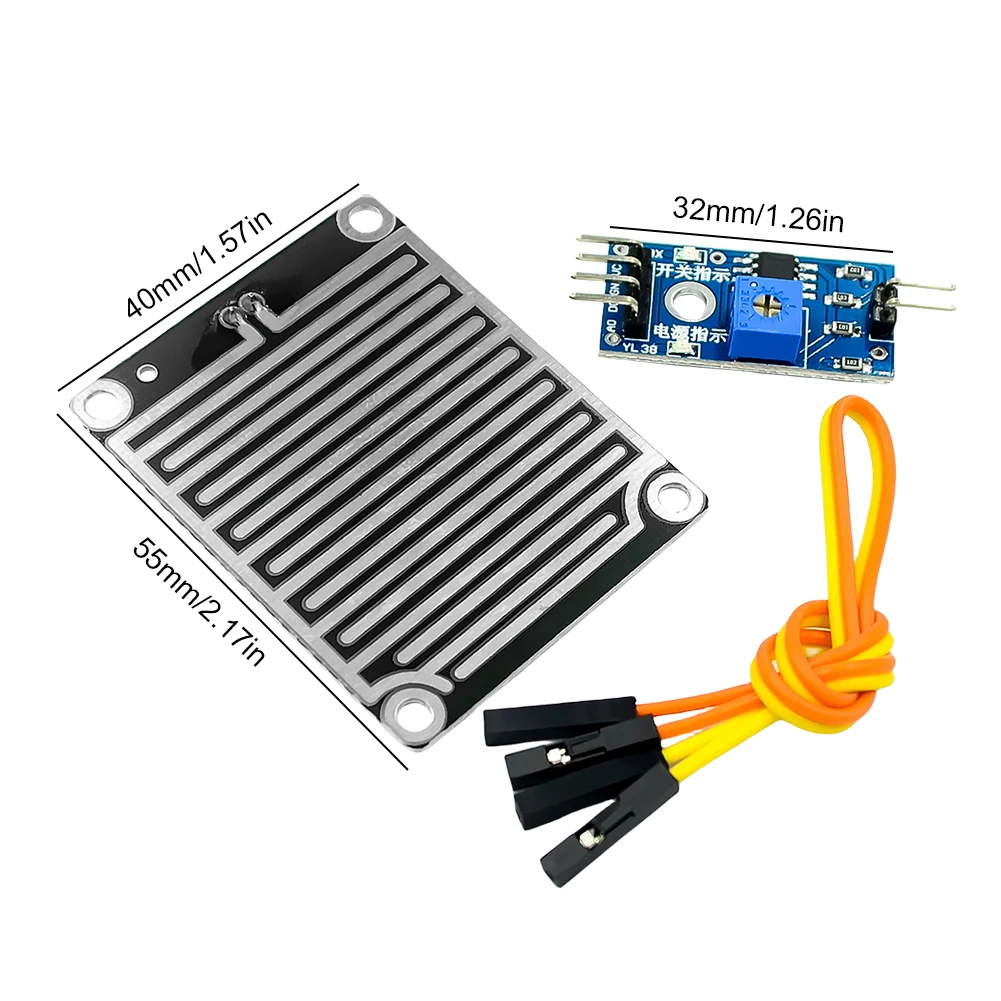

Size: 55*40*5mm/2.15*1.56*0.2in
Use Wide Voltage LM393 Comparator
Product Usage:
Robot kit, raindrop, rain sensor, can be used for monitoring various weather conditions and converted to digital signal and AO output.
Function Description:
Connect the 5V power supply, the power indicator is on, when there is no water drop on the sensor board, DO output is high, the switch indicator is off.
When there is a drop of water on the sensing board, DO output is low level, switch indicator light, brush off the water drop on it, and it returns to output high level state.
AO analog output, can be connected to the AD port of the microcontroller to detect the size of the rain drops on it.
DO TTL digital output can also be connected to the microcontroller to detect whether there is rain.
Wiring Mode:
1. VCC: connected to the power supply positive (3-5V)
2. GND:connect the negative power supply
3. D0:TTL switch signal output
4. A0:Analog signal output
Shipping List:

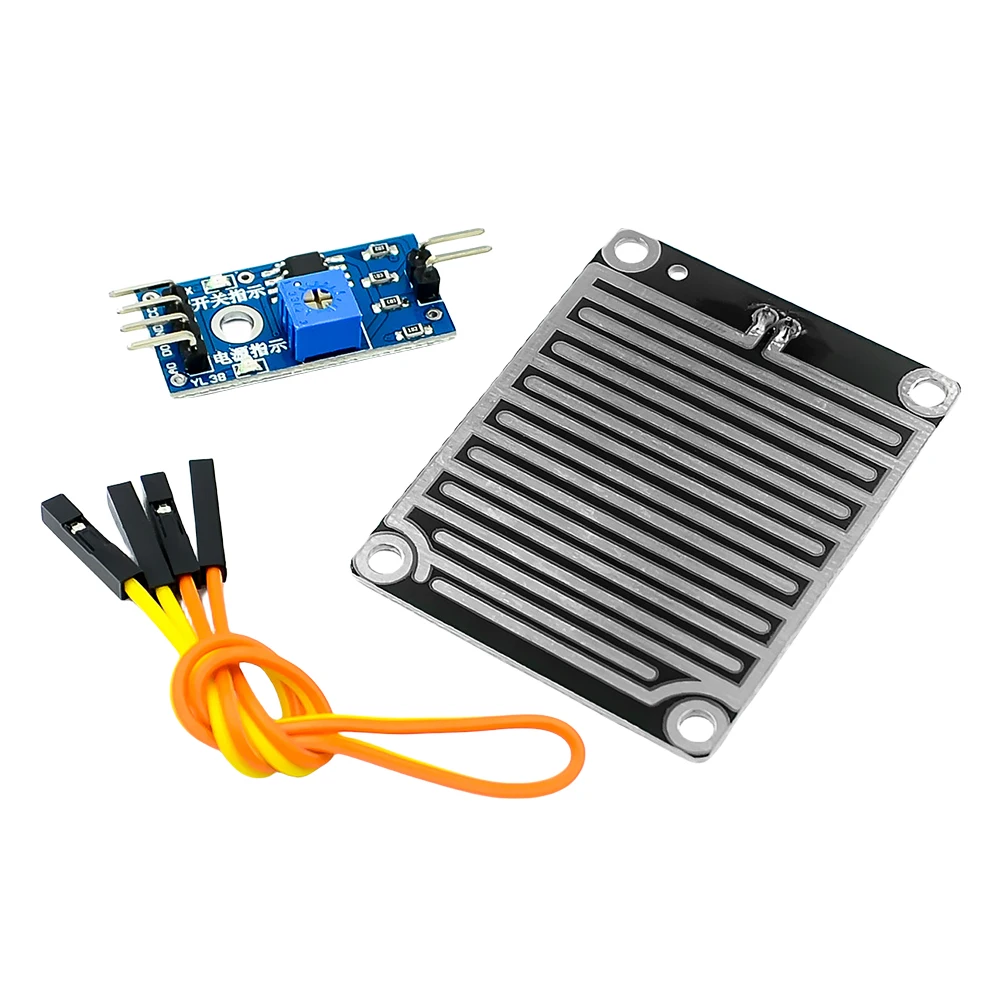

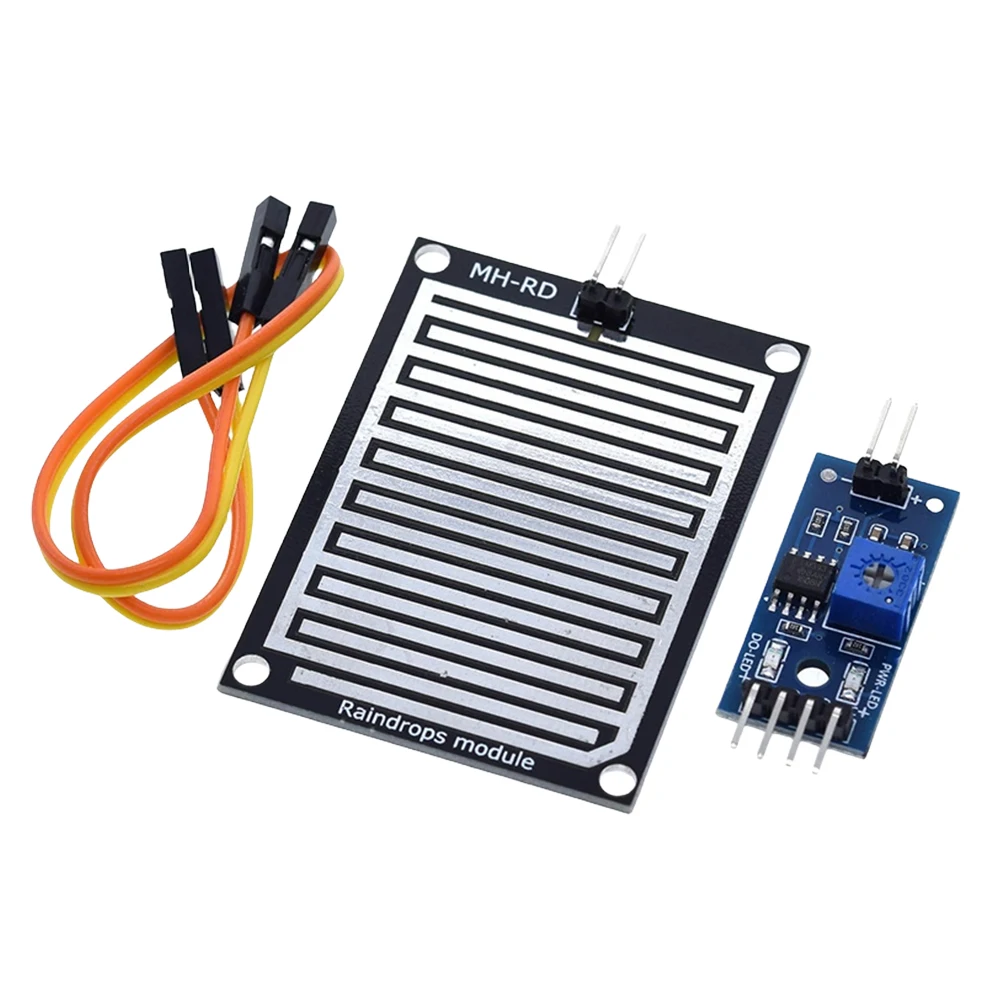

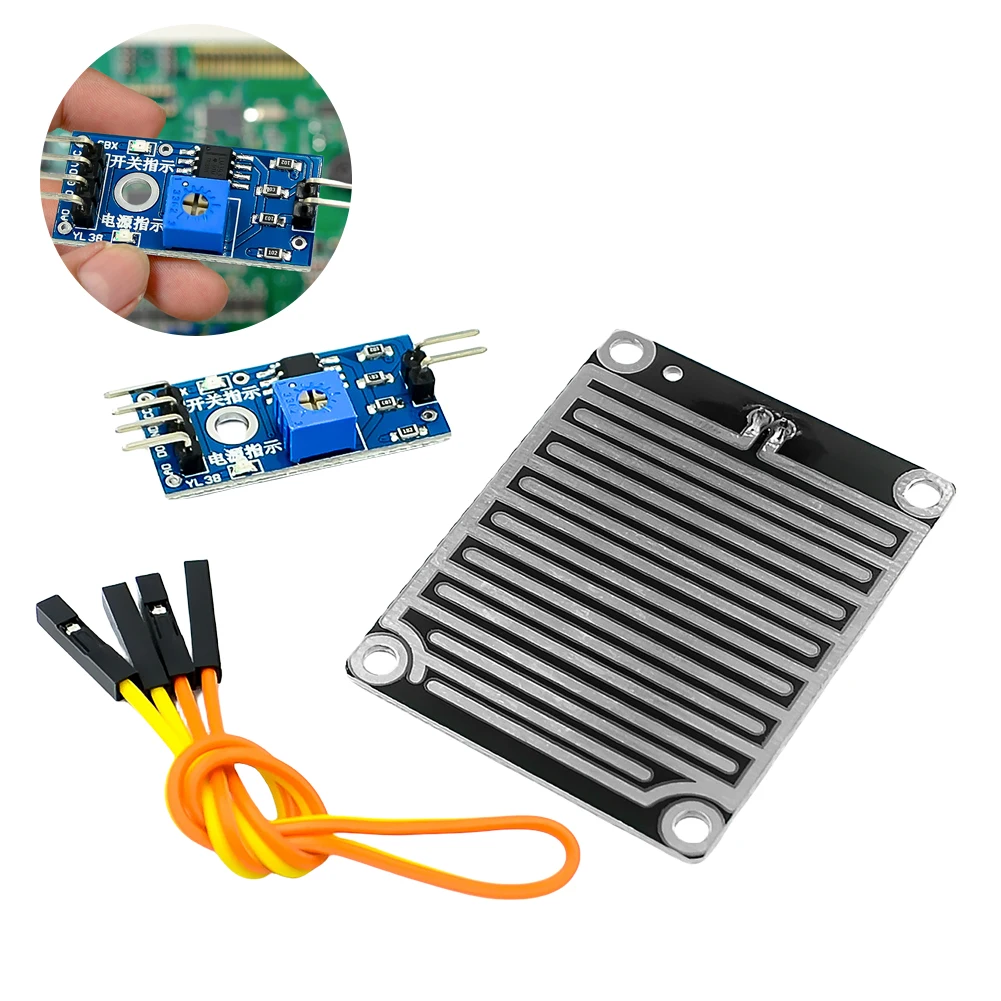

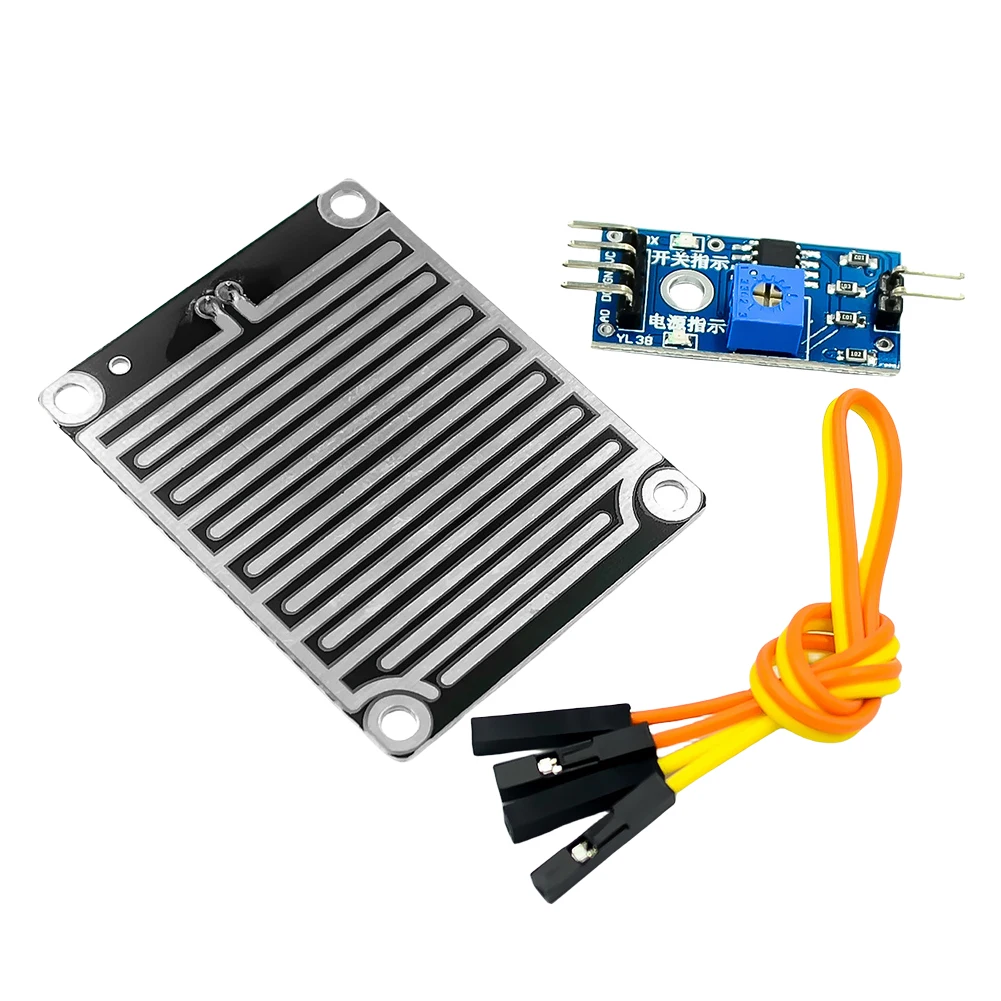

1. As shown in the picture of the raindrop sensor board and control board each one
2. 20cm DuPont line 2, convenient wiring

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
