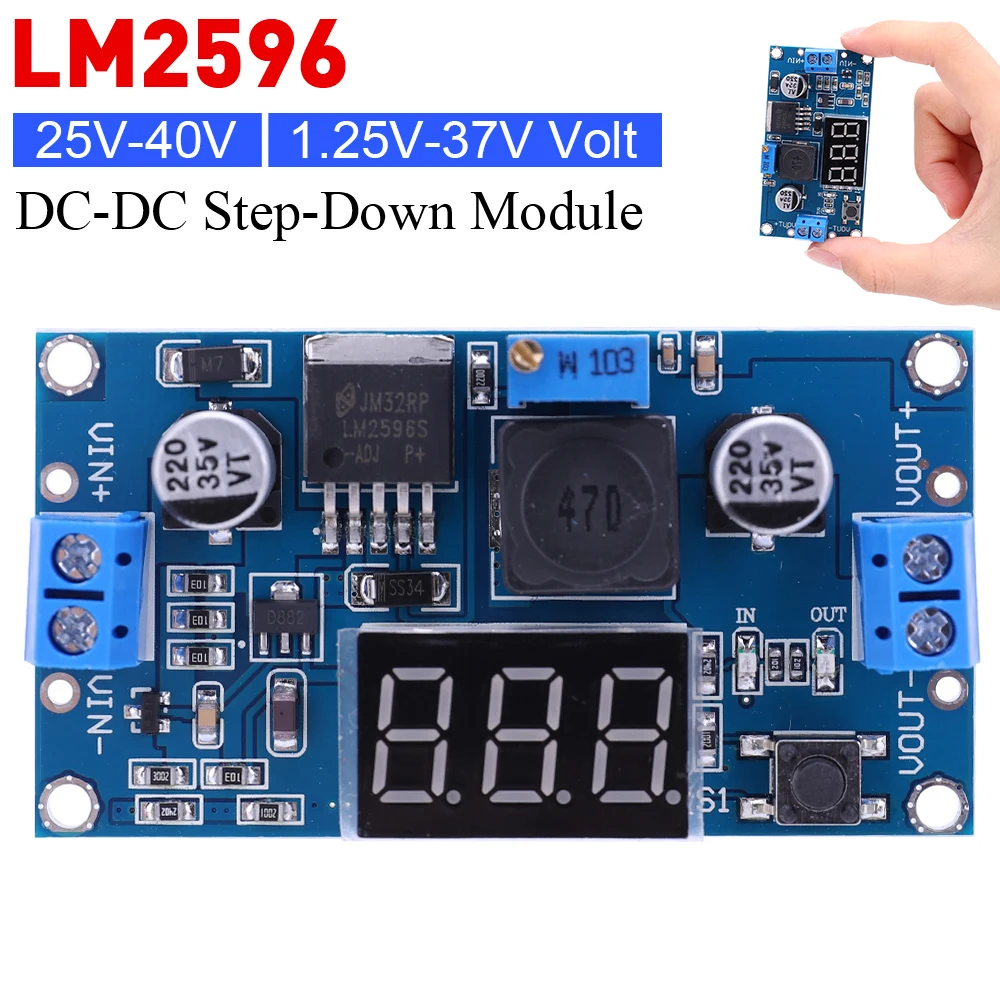

LM2596 DC-DC Step-Down Power Supply Module Electronic Voltage Stabilizer Input 25V-40V Output 1.25V-37V Variable Volt Regulator

DC-DC Step-Down Module Input 25V-40V Output 1.25V-37V Electronic Voltage Stabilizer 3A Buck Converter Adjustable High Efficiency

Features:

1. Versatile voltage range: This dc-dc step-down module input accepts input voltages between 25V and 40V, making it suitable for a wide range of applications.

2. Adjustable output voltage: The regulator can adjust its output voltage from 1.25V to 37V, providing flexibility for different projects.

3. High maximum output current: With a maximum output current of 3A, this volt transformer is capable of powering a variety of devices.

4. Efficient operation: The electronic voltage stabilizer boasts a high conversion efficiency of up to 92%, ensuring minimal power loss during operation.

5. Reliable performance: With low output ripple (<30mV), a high switch frequency of 150KHz, and a wide operating temperature range (-45°C to +85°C), this electronic voltage stabilizer provides reliable and stable performance even in challenging environments.

Specification:

Origin: Mainland China

Type: Voltage Regulator

Condition: New

Model Number: Converter

Color: blue

Package: Static bag packing

Input voltage:25V-40V

Output voltage: 1.25V-37V(adjustable)

Output current: 3A (maximum)

Conversion efficiency: 92% (maximum)

Output ripple:<30MV

Switching frequency:150KHZ

Working temperature:-45℃-+85℃

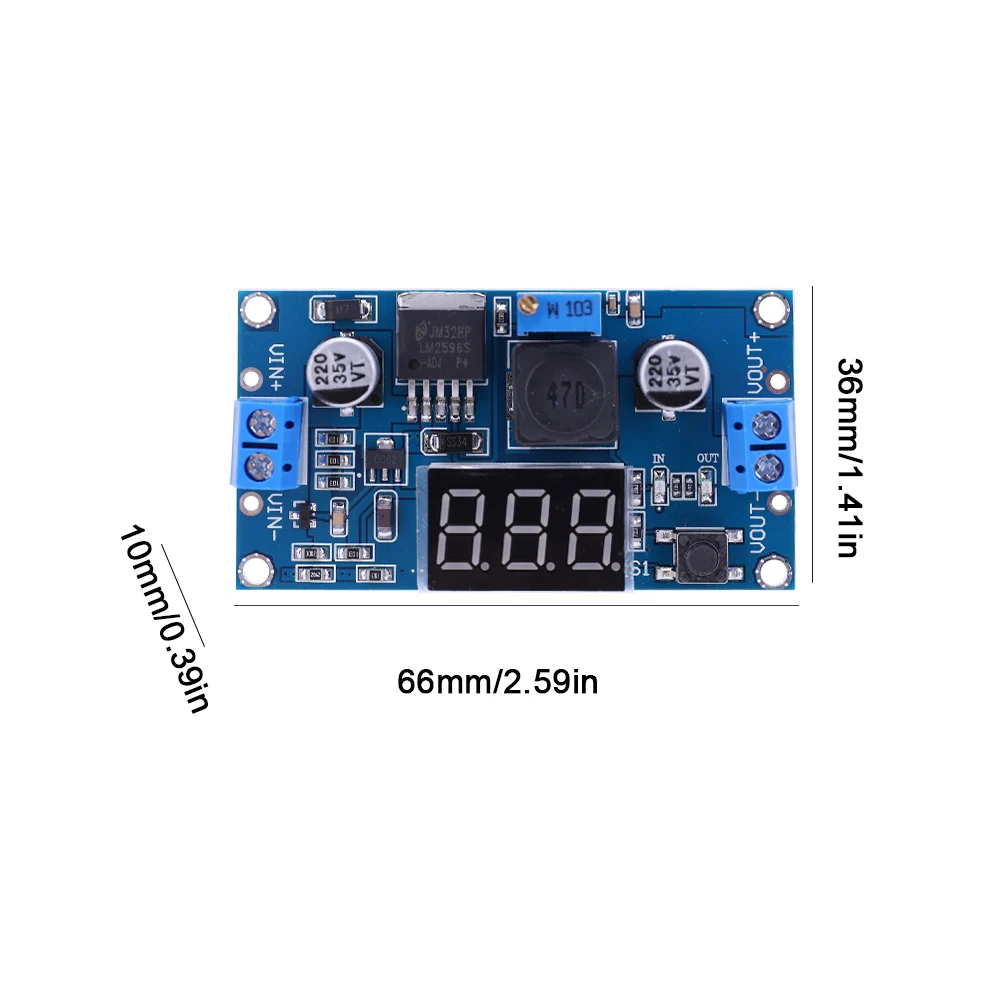

Product size:66*36*10mm/2.6*1.4*0.4in

Application range:

This module can be used in the field of voltage reduction where the input voltage is higher than the output voltage, such as battery, power transformer, DIY adjustable regulated power supply, 24V car pen meter power supply, industrial equipment voltage reduction 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.

Caution:

The maximum output current can be as high as 3A, it is recommended that the working current is around 2A, more than 2A plus heat sink When you encounter the output voltage can not be adjusted, always equal to the input voltage, please rotate the potentiometer counterclockwise for more than 10 turns, and then use the module can adjust the voltage normally. Because the buck module factory, the default output voltage in about 20V.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
