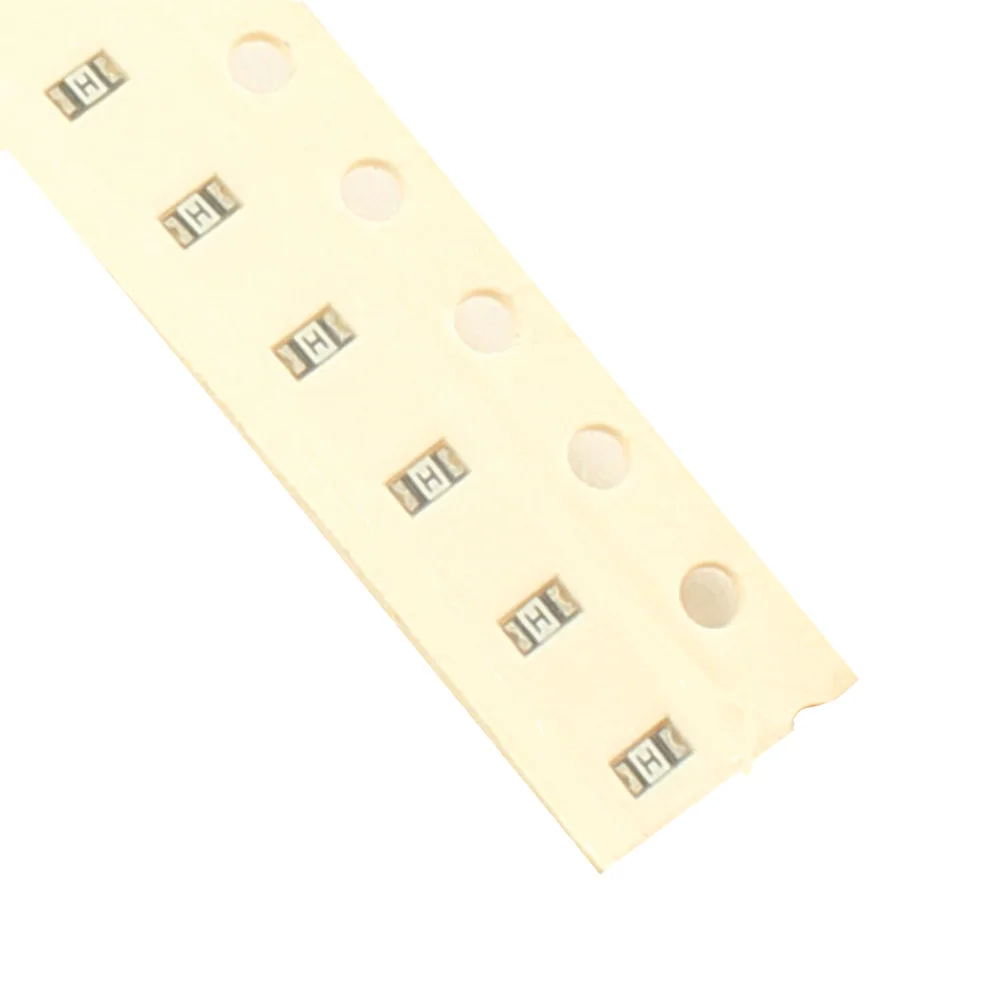

Littelfuse 0603 SMD Fuse
Littelfuse 0603 1A SMD Fuse 32V SMF Very Fast Acting Thin Film Chip Surface Mount 0494001 Marking Code H. Protect your delicate electronic components with Littelfuse’s high-quality 0603 SMD fuse. This surface-mount fuse offers fast-acting protection against overcurrent conditions. With a 1A current rating and 32V voltage rating, it’s ideal for a wide range of applications, including consumer electronics, automotive electronics, and industrial controls.
Payment Methods:
Description
Specification
Brand: Littelfuse
Series: 494
Max Voltage Rating: 32 V
Ampere Rating: 1 A
Marking Code: H
Interrupt Rating: 50A@32VDC
Opening: Very Fast-Acting (FF)
Package Size: 0603(1608)
Part No. :0494001
Features
Compatible with leadfree solders and higher temperature profiles
High performance materials provide improved performance in elevated ambient temperature applications
Marked on top surface with code to allow amp rating identification without testing
Low profile for height sensitive applications
Flat top surface for pick and- place operations
Element covering material is resistant to industry standard cleaning operations
Mounting pad and electrical performance is identical to Littelfuse 431 and 434 Series products
Halogen free, Lead-free and RoHS compliant
Alloy-based element construction provides superior inrush withstand characteristics (I2t) over ceramic or glass-based 0603 fuse products
