L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560
Payment Methods:

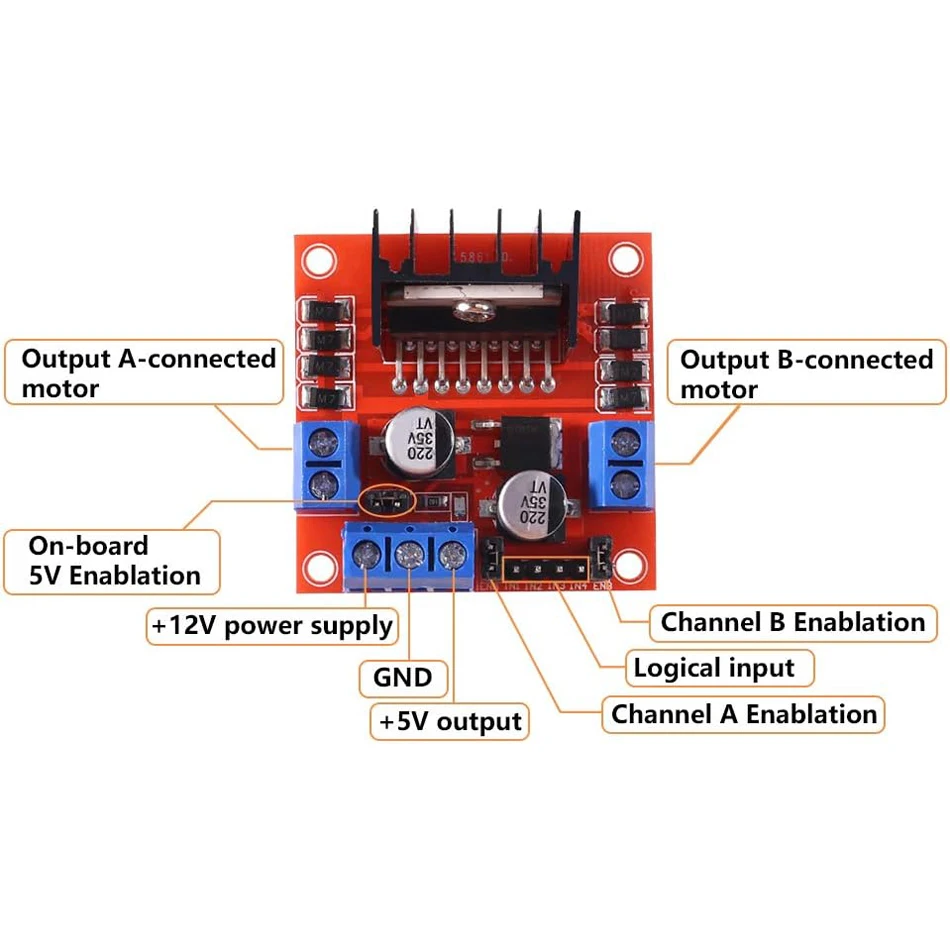

Description
- Main driver chip L298N, strong driving ability, strong anti-interference, low calorific value, afterflow diode protection, more stable and reliable.
- Double H bridge design, can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors, high efficient
- No assembly required. This L298N board comes ready to go. Just wire up motors and power, easy to use
- External size 43*43*27mm / 1.69*1.69*1.06 inch, voltage 5V-35V, drive current 2A (Max single bridge)
- Great for DIY Smart Car Robot Power MEGA R3 Mega2560 Duemilanove. If driving voltage is more than 12V, please use external standard 5volt TTL outputs to switch the H-bridge circuits

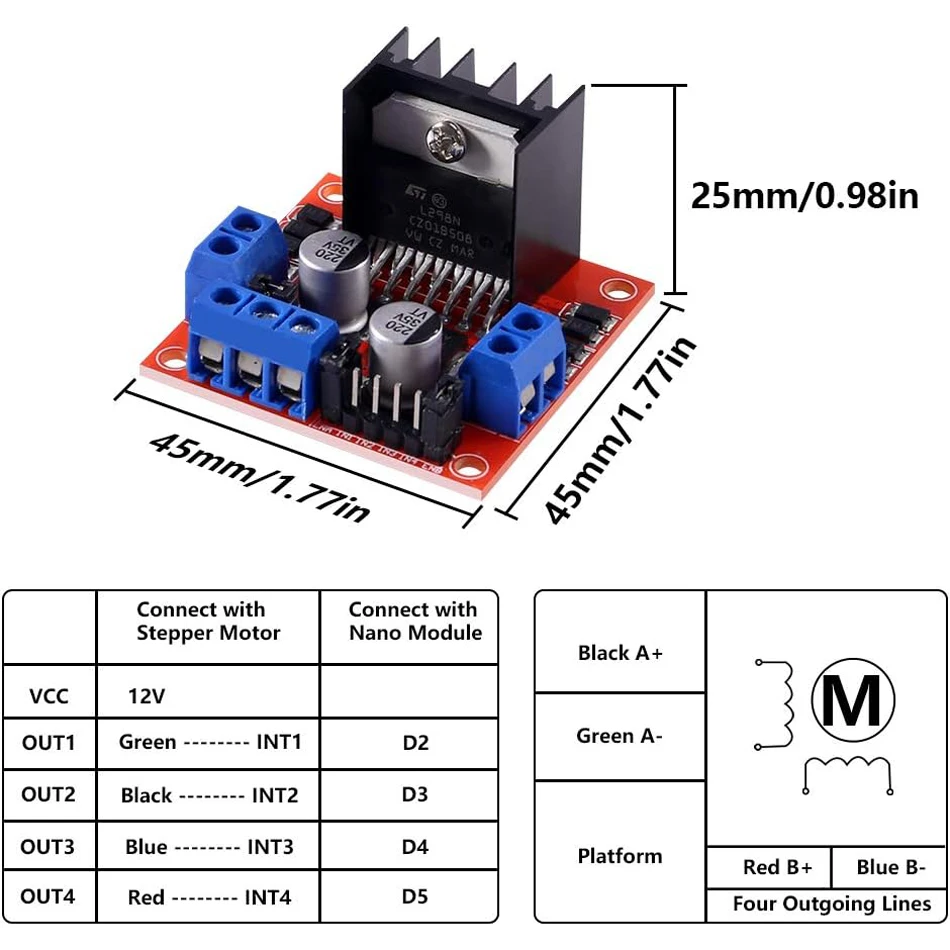

- Size: 45*45*25mm/ 1.77*1.77*0.98 inch Dual H bridge drive (can drive 2 DC motors)
- Chip: L298N
- Logical voltage: 5V
- Drive voltage: 5V-35V
- Logic current: 0mA-36mA
- Drive current: 2A (For each DC motor)
- Weight: 30g
