KUOYUH 98 Series Circuit Breakers
KUOYUH 98 series circuit Breaker 3A?30A overload protector push button switch manual reset switch. Protect your electrical circuits with our high-quality KUOYUH 98 series circuit breakers. Available in a range of amperage ratings (3A to 30A), these circuit breakers offer reliable overcurrent protection. The manual reset feature allows for easy reset after a trip.
Payment Methods:
Description
Current rating range:5~30A
Input voltage rating:125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life :1,000 operations at 200% overload1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV Rated impulse withstand voltage 2.5kV Dielectric Strength:>
1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40Technical data

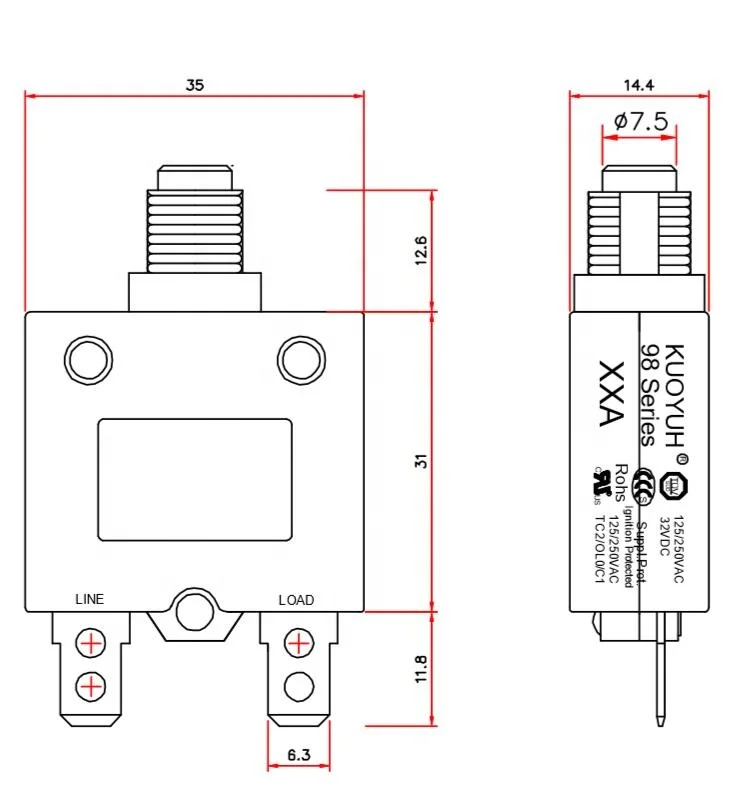

Mounting: Various options. See Ordering Information and drawings
Termination: 250”(6.35mm)quick connects or solder terminals

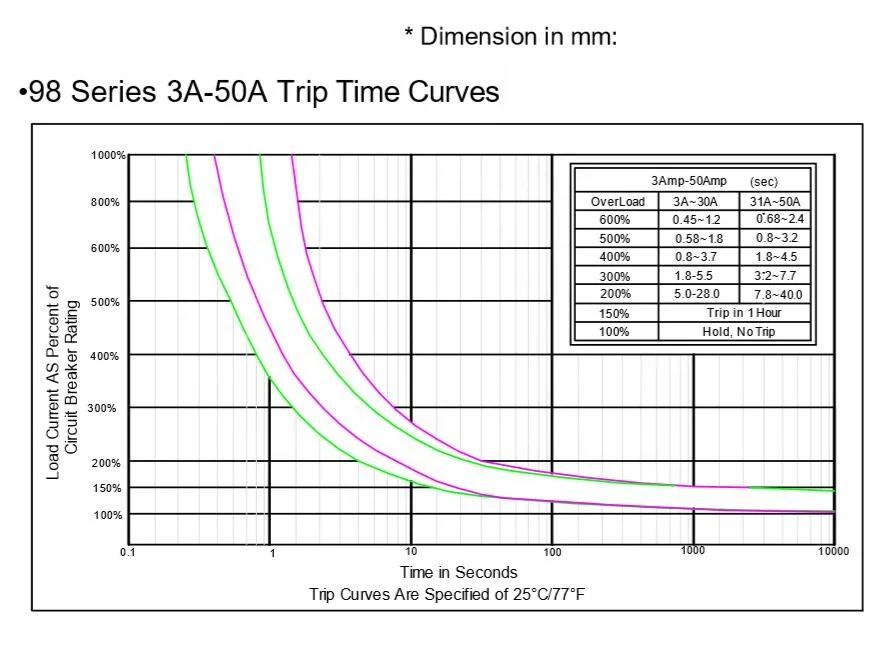

Calibration(at25℃)
100% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip •
200% of Rated Current: 5-30 sec Trip •
150% ofRated Current: Trip Within 1 Hour
