GPS305D/GPS301D/GPS605DHigh Efficiency Stable Dc Power Supply 60v 5a 300w Single Output Dual Led Display Switching Power Supply
Payment Methods:
Description
Four-digit display 0.01 V/0.001 A
3.GPS3050D W/B Encoder adjustment DC power supply with power display 30V 5A
4.GPS301D W/B Encoder adjustment DC power supply with power display 30V 10A
5.GPS605D W/B Encoder adjustment DC power supply with power display 60V 5A

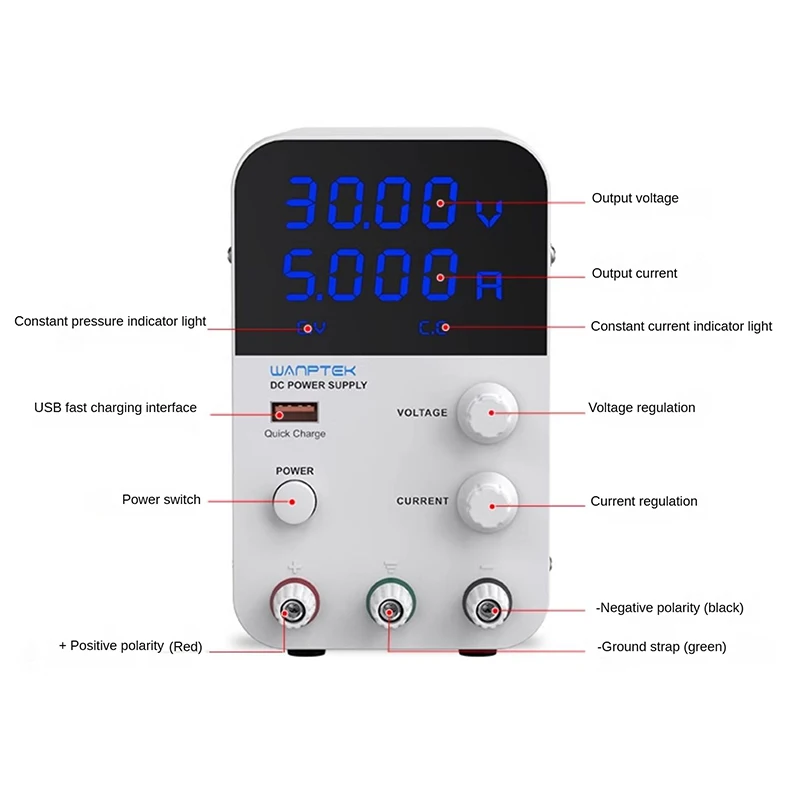

Wanptek’s new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
AC 110v and 220v
can work
, rest assured to choose.
Encoder adjustment
DC power supply
|
Output Power |
150W/300W/300W |
|
Output voltage |
0~30V/30V/60V |
|
Output current |
5A/10A/5A |
|
working environment |
|
|
input voltage:AC 230V/115V±10%;50Hz/60Hz |
|
|
Working temperature:0℃～40℃;relative humidity:<80%RH |
|
|
Storage temperature:-10℃～70℃;relative humidity:<70%RH |
|
|
Constant voltage CV |
|
|
Voltage stability:0.1%±3mV |
|
|
Load stability: 0.2%±3mV |
|
|
Ripple voltage:≤0.5% Vp-p |
|
|
0 to rated voltage continuously adjustable |
|
|
constant current CC |
|
|
Current stability:0.1%±3mA |
|
|
Load stability: 0.2%±3mA |
|
|
Ripple current:≤0.5% Vp-p |
|
|
Recovery time:≤500μS |
|
|
Temperature coefficient:≤100ppm/℃ |
|
|
0 to rated current continuously adjustable |
|
|
display |
|
|
LED digit display |
|
|
Display accuracy:0.5%±digits |
|
|
Display resolution: voltage 0.01V, current 0.001A |
|
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.
1x DC power supply
1x power cord (EU,US,UK,AU)
1x Test line
1x Instructions
