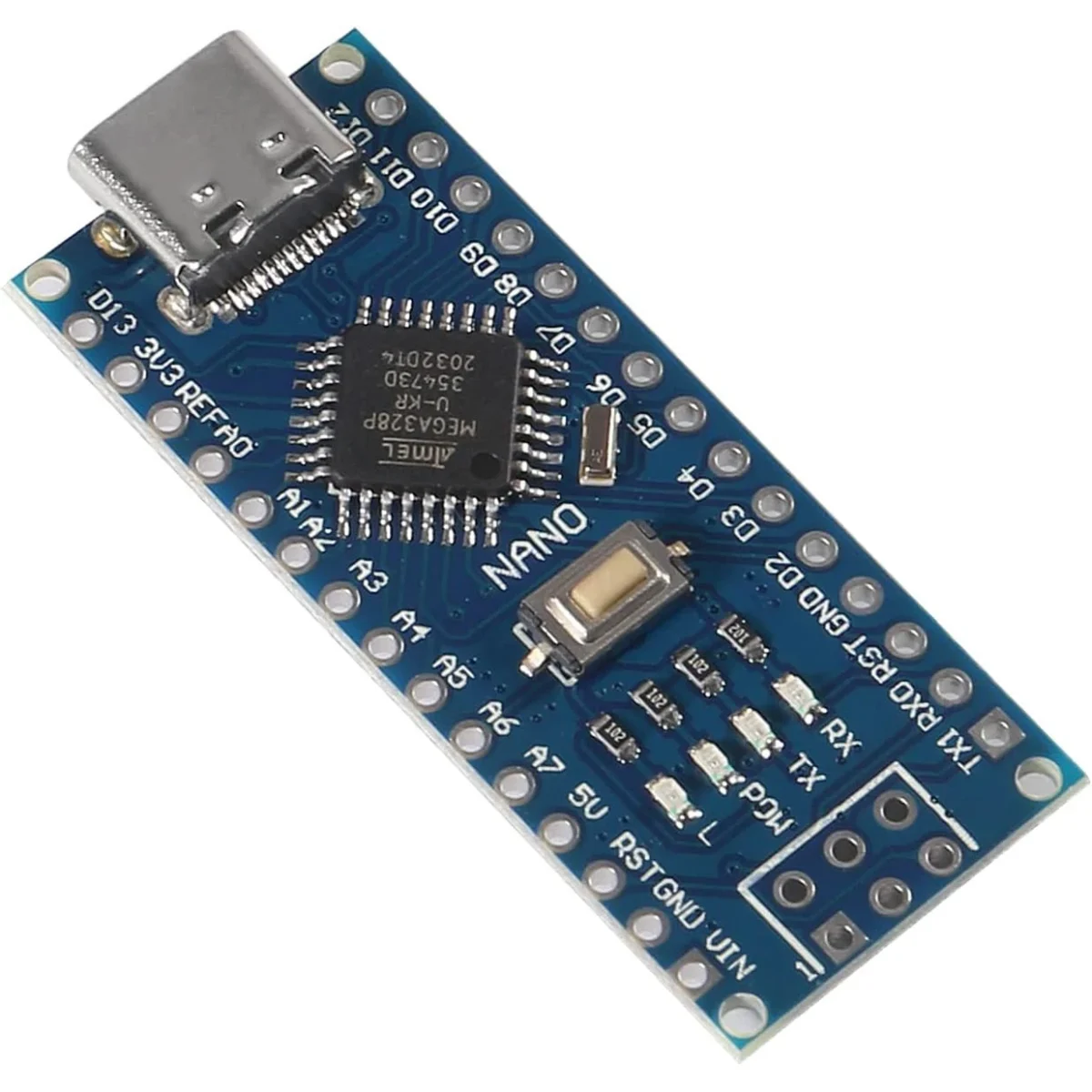

For Nano Board CH340/ATmega+328P Without USB Cable, Type-C Connection Compatible with Arduino Nano V3.0
Payment Methods:
Description
for Nano Board CH340/ATmega+328P Without USB Cable, Type-C Connection Compatible with Arduino Nano V3.0
Features:
• The Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
• Support for external 5V~12V DC power supply, Support power supply by 9V battery.

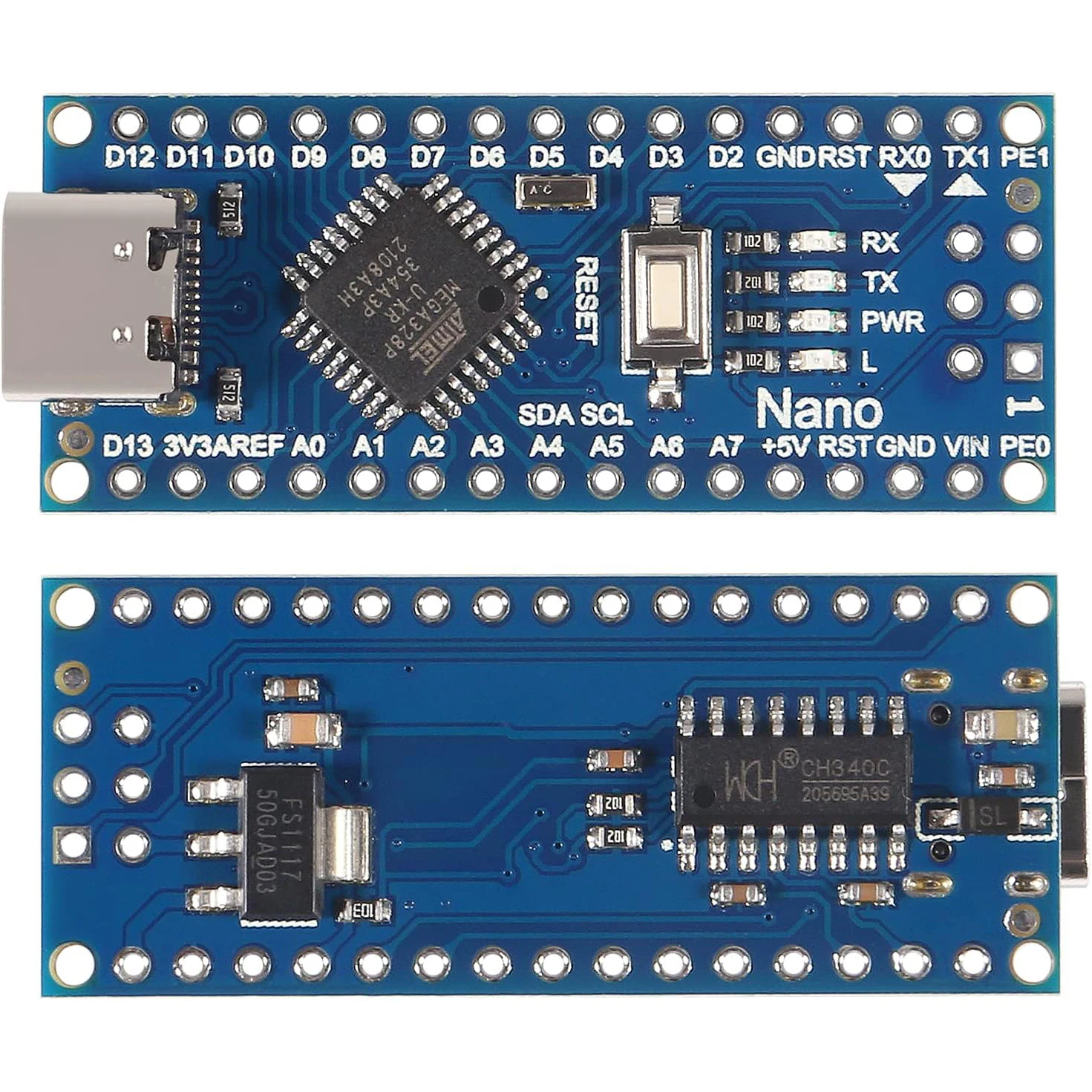

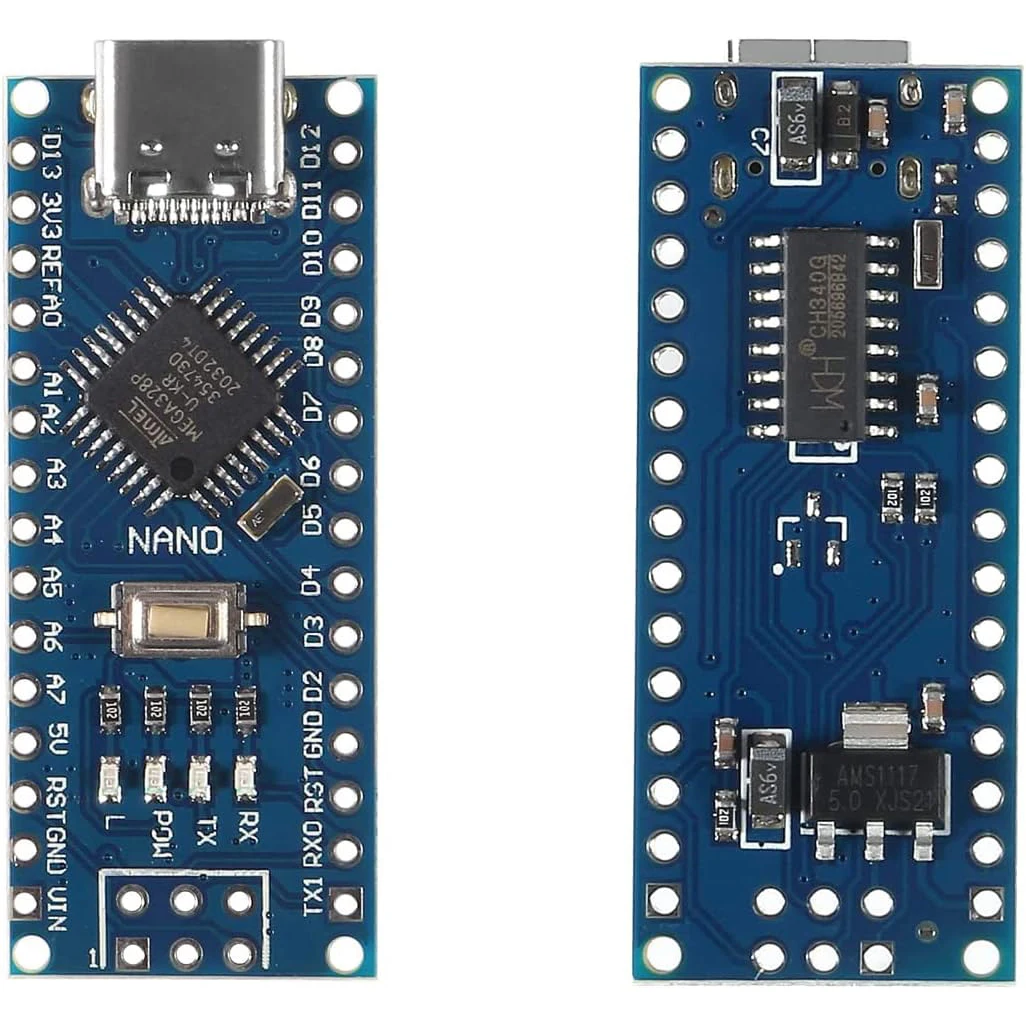

• The Nano is using the chips ATmega328P and CH340, Replace FT232RL.

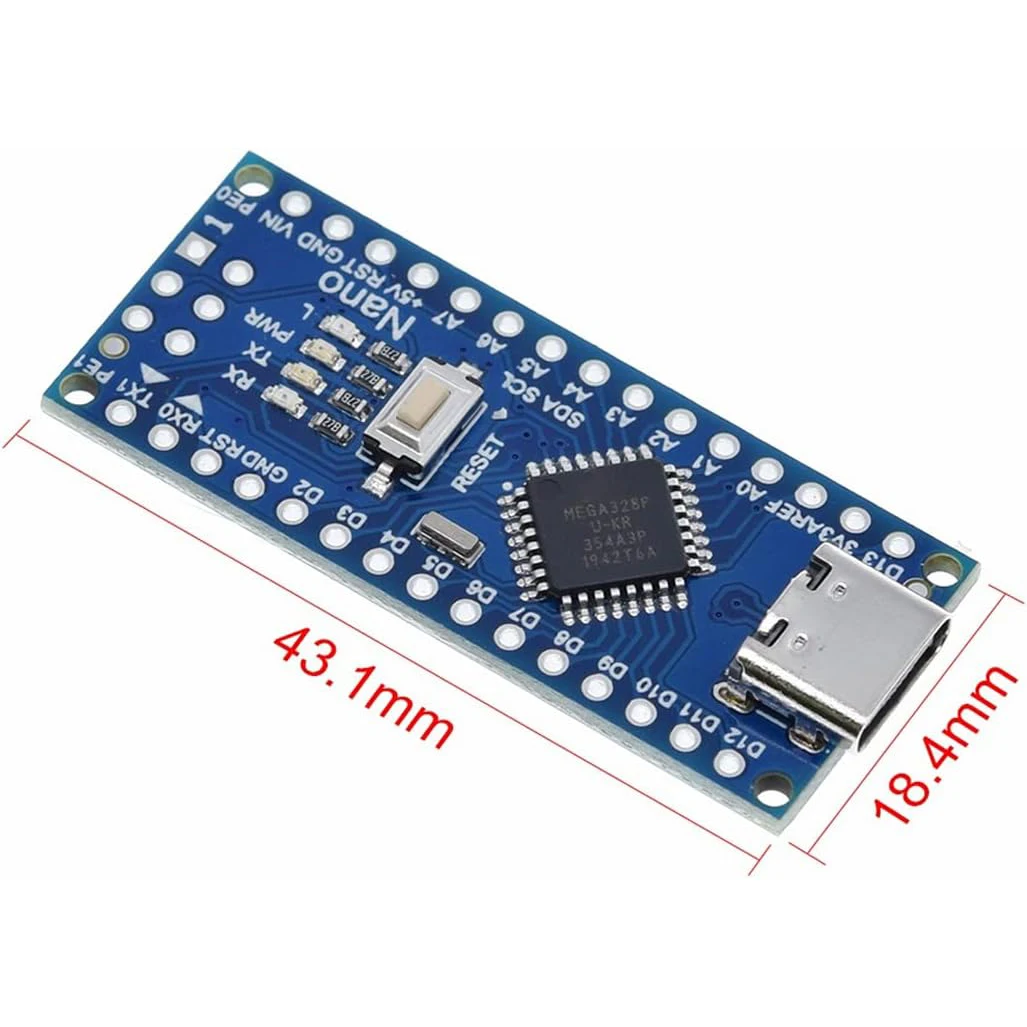

• It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
• Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).
Specifications:
CH340G Replace FT232RL
Operating Voltage(logic level):5V
8 analog inputs ports:A0 ~ A7
14 Digital input / output ports:TX,RX,D2 ~ D13
6 PWM ports:D3, D5, D6, D9, D10, D11
1 pairs of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
Support USB download and Power; external 5V ~ 12V DC power supply;power supply by 9V battery; Support ISP download
Package included:

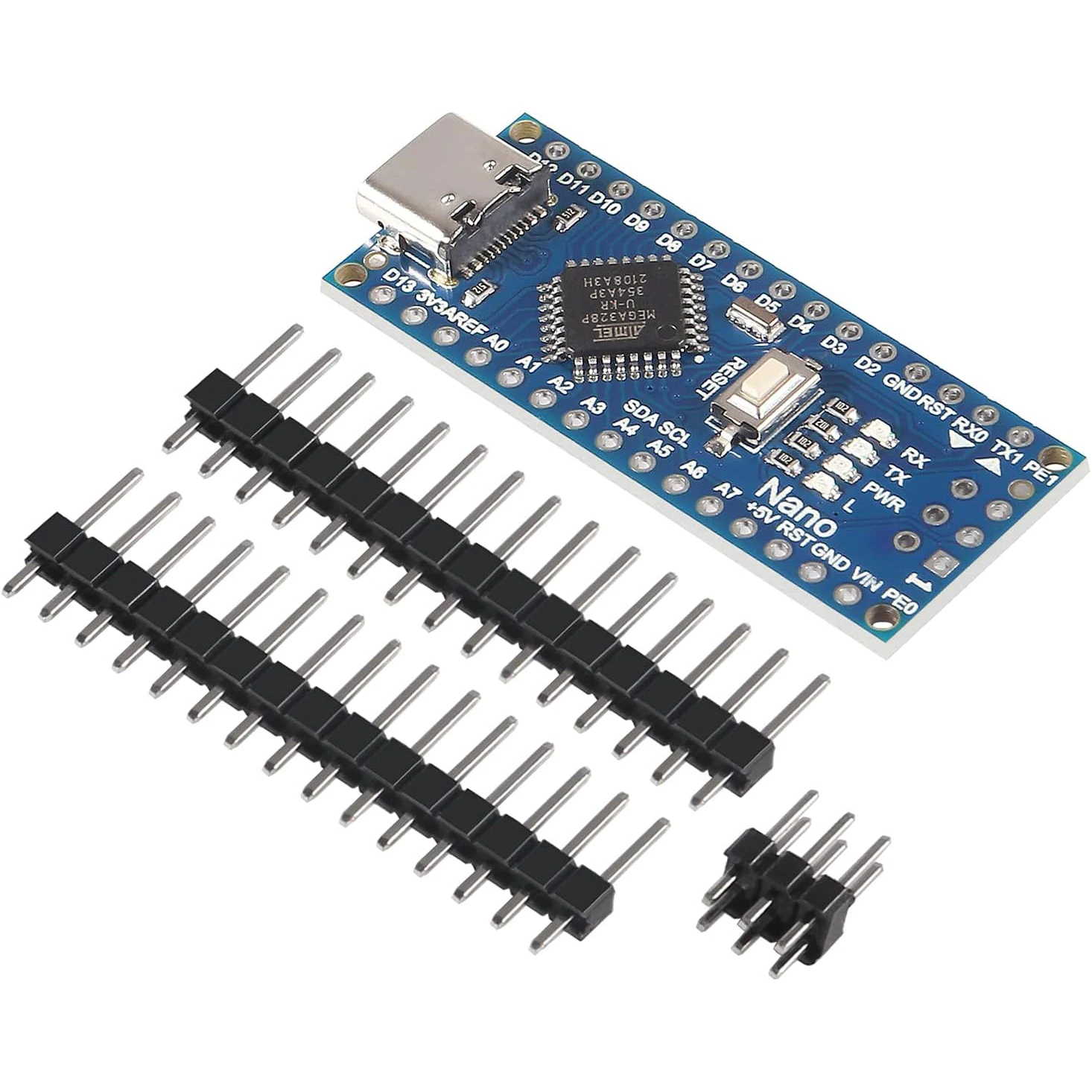

1pcs USB Type-C Connector for Nano V3.0 ATmega328P CH340G Controller Board(not soldered)
1. Key away from Fire
2. Due to includeing small parts, please keep away from Children under Three.
3. Please leave 5 star feedback if you’re satisfied with our products and service, we will appreciate it
4. If the products you received was damaged or any more question, please feel free to contact us.
