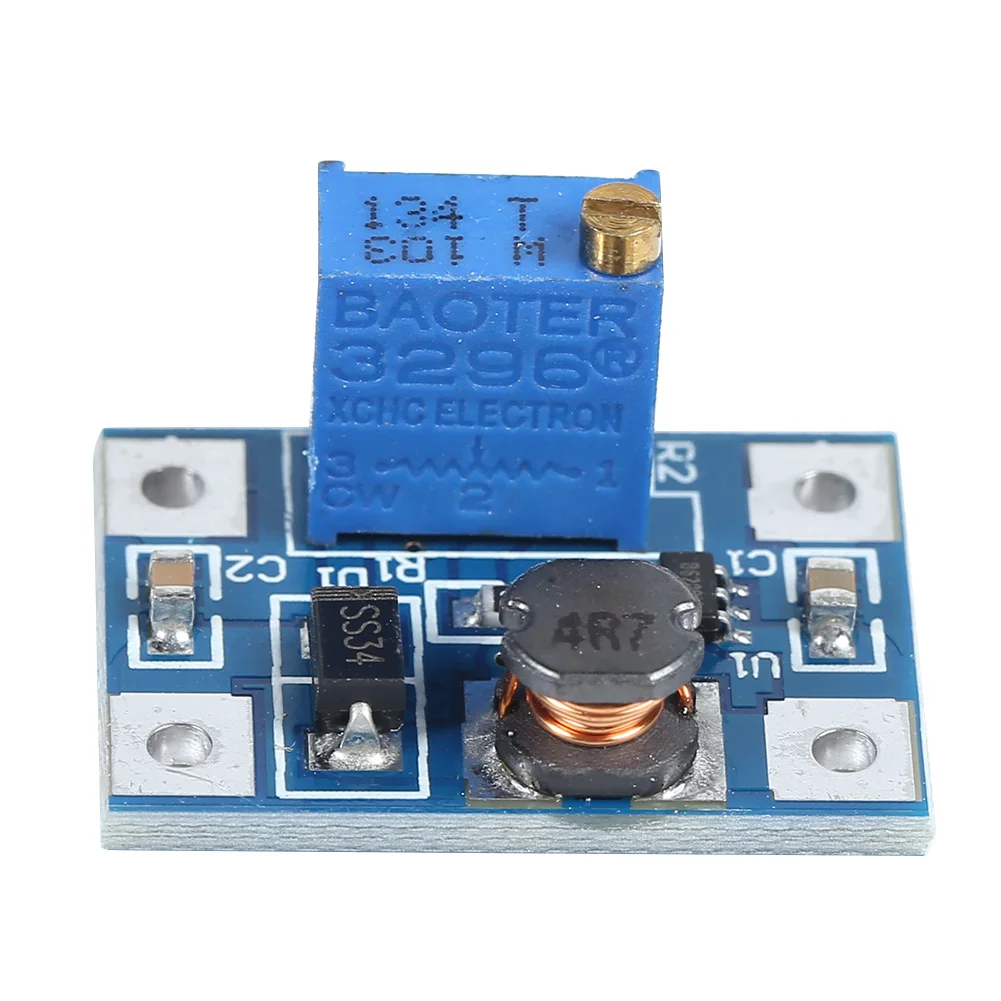

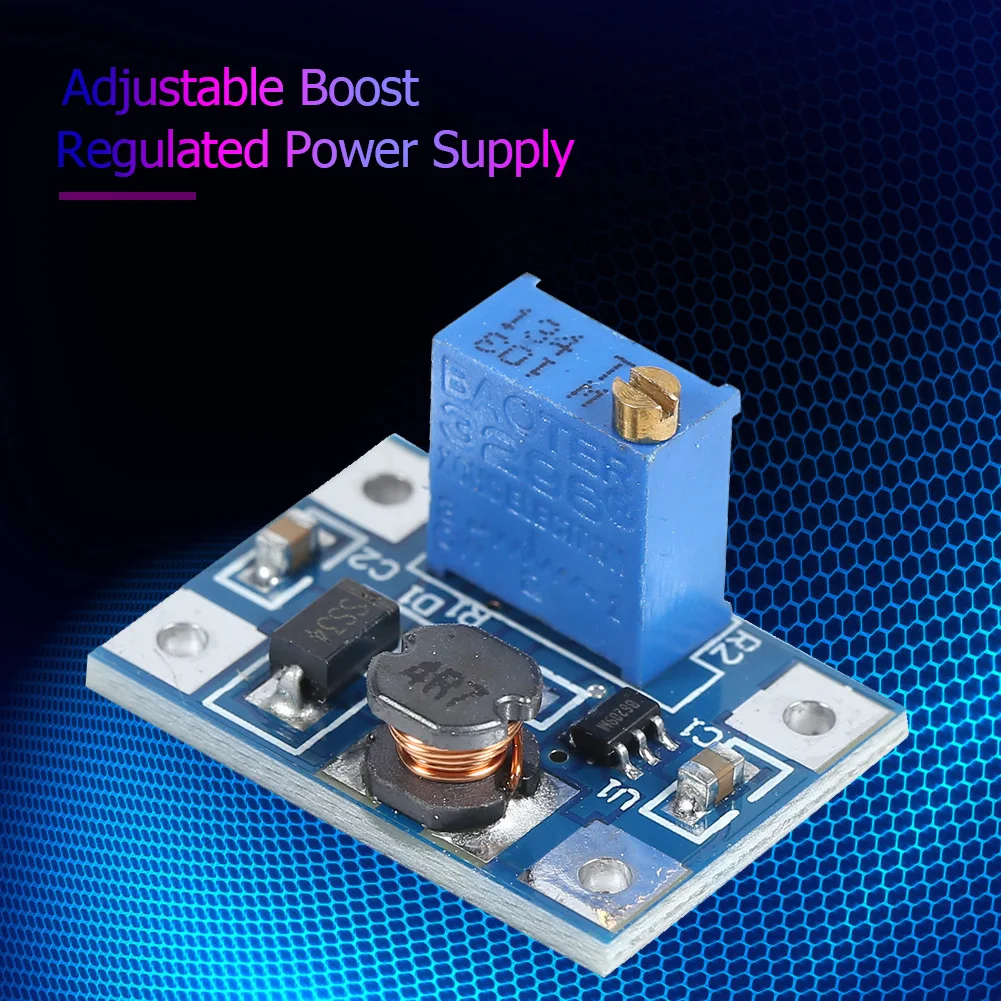

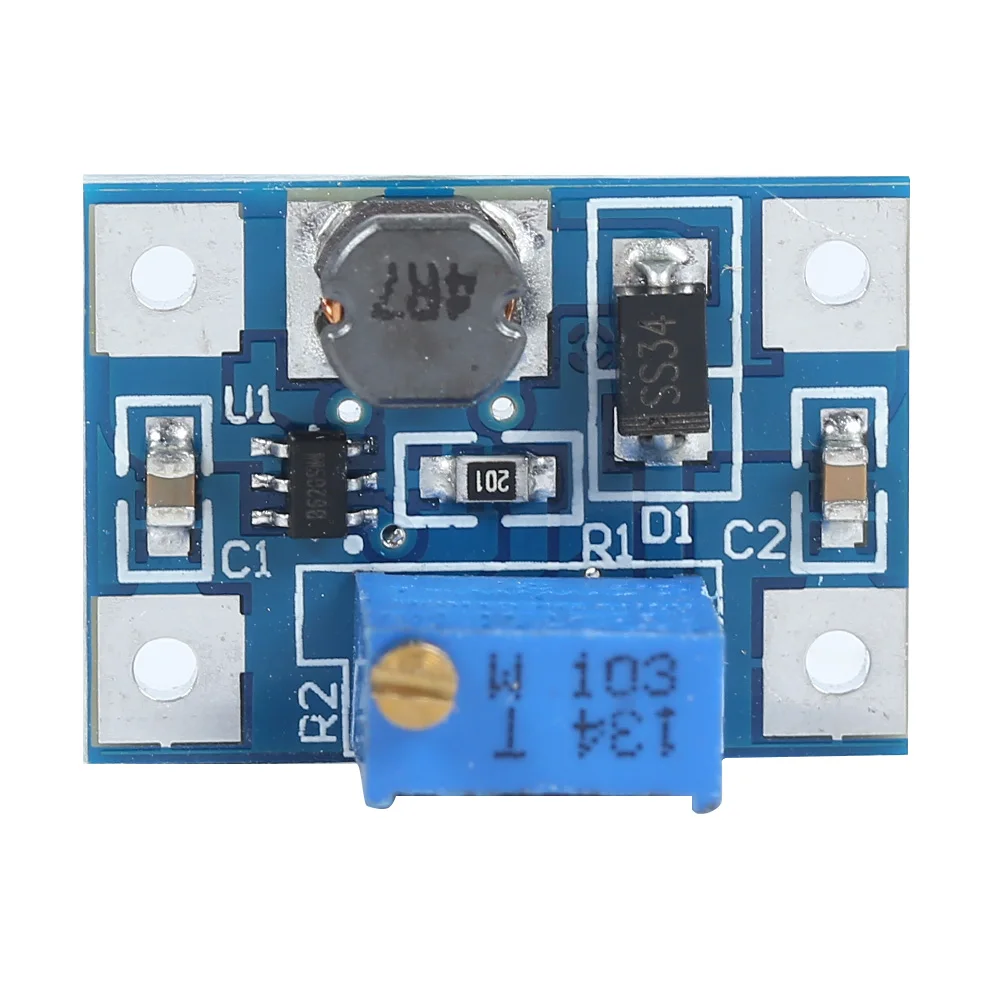

DC-DC 2-24V to 2-28V Step-UP Power Module SX1308 Adjustable Voltage Boost Board

DC-DC 2-24V to 2-28V Step-UP Power Module SX1308 2A Adjustable Voltage Boost Converter Board
Features:
Oscillation frequency 1.2MHz, efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function.
10k to adjust potentiometer, adjust the output voltage.

Description:

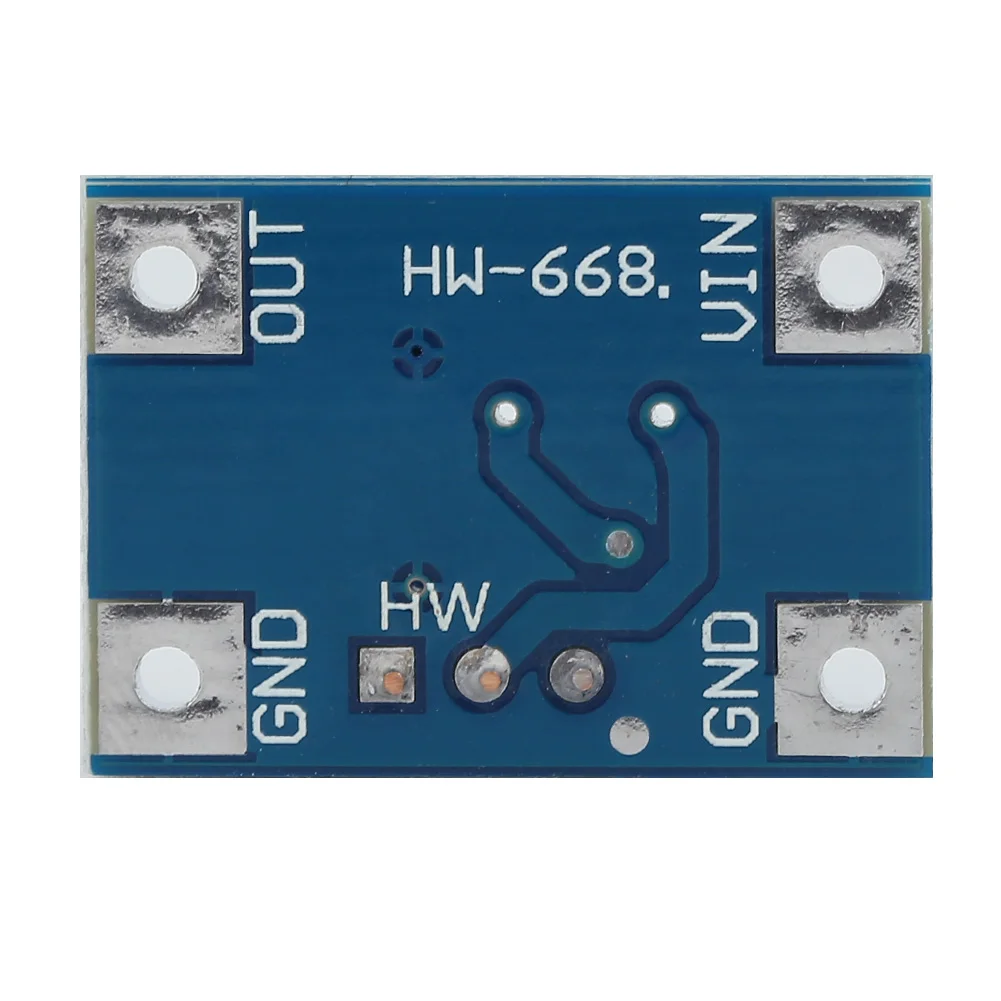

1: VIN cathode voltage input
2: GND anode voltage input
3: GND anode voltage input
4: OUT cathode voltage output, the 2 GNDs are intercommunicated, and the pads of the four voltage input/output terminals are 4mm x 4mm pads, and the through hole diameter is 1mm.

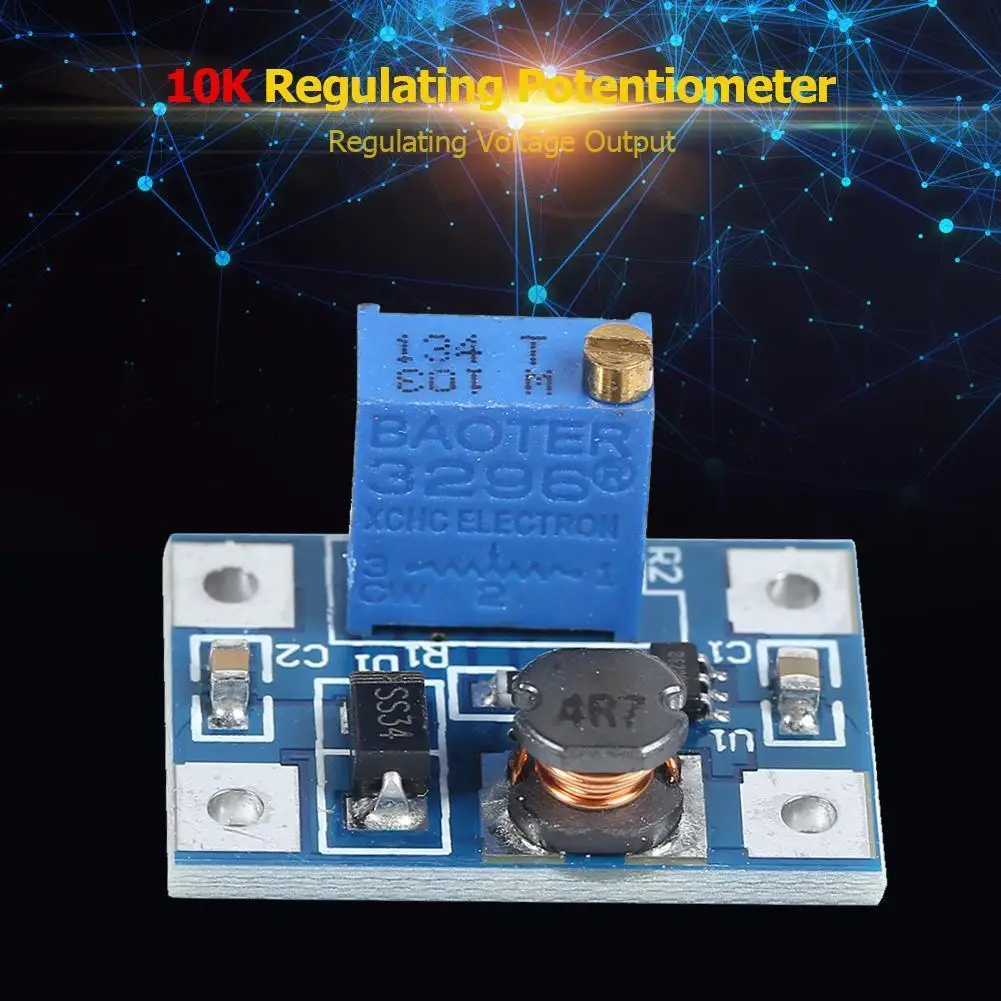

5: 10K adjust potentiometer, choose the output voltage value by adjusting the potentiometer, and increase the output voltage value in the counterclockwise direction.
6: SS34 overcurrent protection

Specification:
Maximum Input Voltage: DC 2-24V
Maximum Output Voltage: DC 2-28V
Switching Frequency: 1.2MHz
Maximum Current Output: 2A
Product Size: 23 X 15 X 12mm/0.91 X 0.59 X 0.47″
Package Weight: 3g

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
