DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories
DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories - Image 2
DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories - Image 3
DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories - Image 4
DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories - Image 5
DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories - Image 6

DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories

SKU: 832586

Add to compare
Add to wishlist
13 People watching this product now!

Payment Methods:

Description

Tips1:

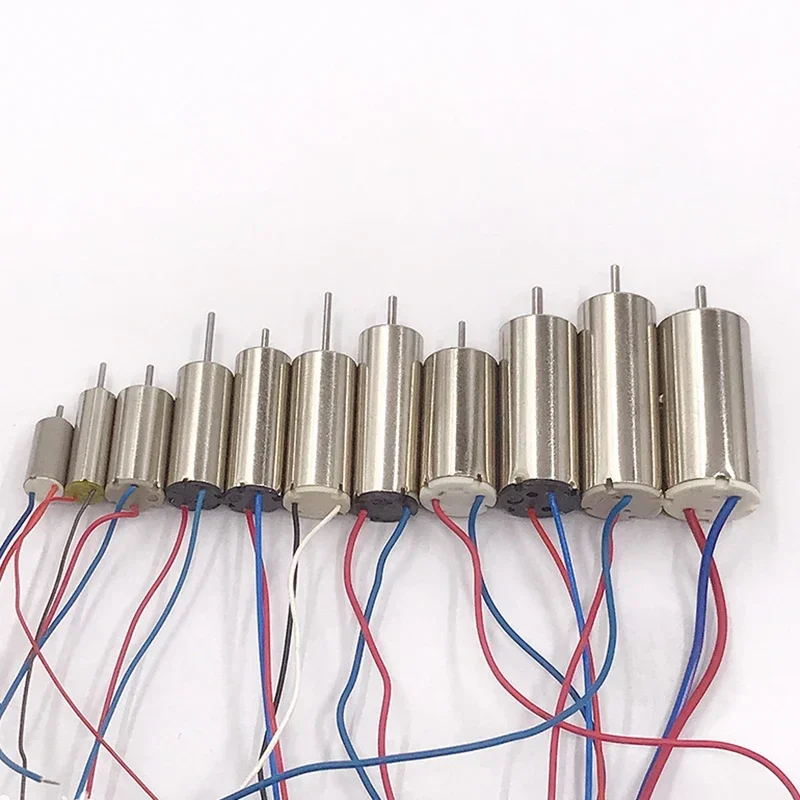

The numbers of different models represent different sizes of motors;
for example, 412 is 4mm * 12mm, 8520 is 8.5mm * 20mm

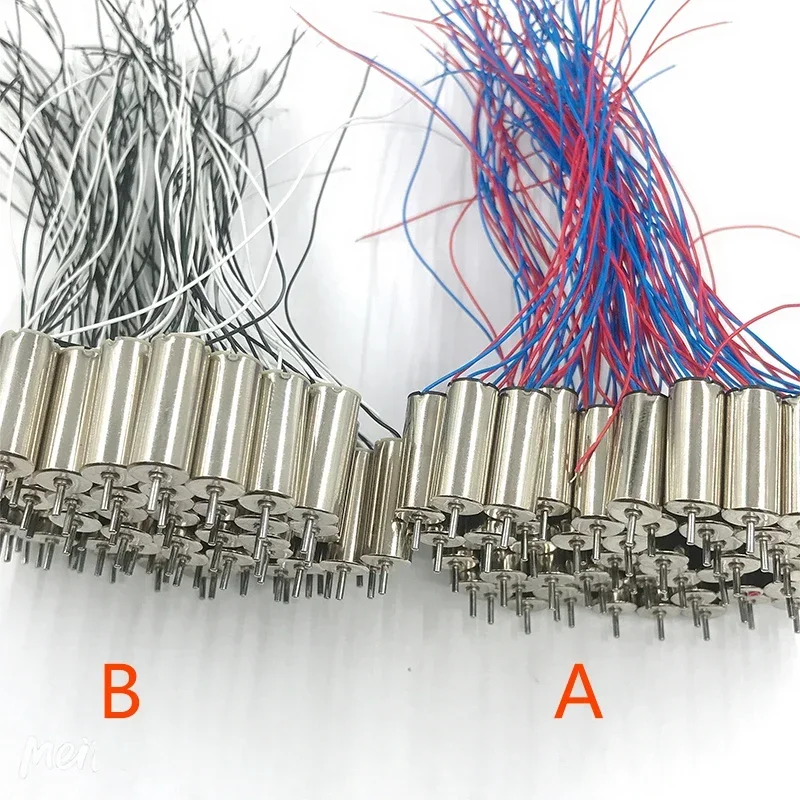

Type A is a red and blue line, and type B is a black and white line.
All motors can be CW or CCW.

Tips2:

There are propellers in our shop, and there are more discounts when buying motors and propellers together.

Model: 0408

[Diameter]: 4mm

[Length]: 8mm

[Speed]: about 48,000 rpm at 3V

[Motor shaft diameter]: 0.7mm

[Motor shaft length]: 2mm

[wire length]: about 35mm

Model: 412
Output shaft: 4 mm
Radial shaft: 0.7 mm
Lead length: about 180mm
Voltage: 3.7V
Current: 30 ma
Speed: about 60000 RPM

DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories

Model: 612

Output shaft: 0.8 MM
Output shaft length: 5.5 MM
Weight: 1.4 g
Voltage: 3.7 V
Speed: about 50000 RPM

Model: 615

Output shaft: 0.8 mm
Output shaft length: 5.5mm
Line length:  55 MM
Weight: 2 g
Voltage: 3.7 V
Speed: around 45000 RPM

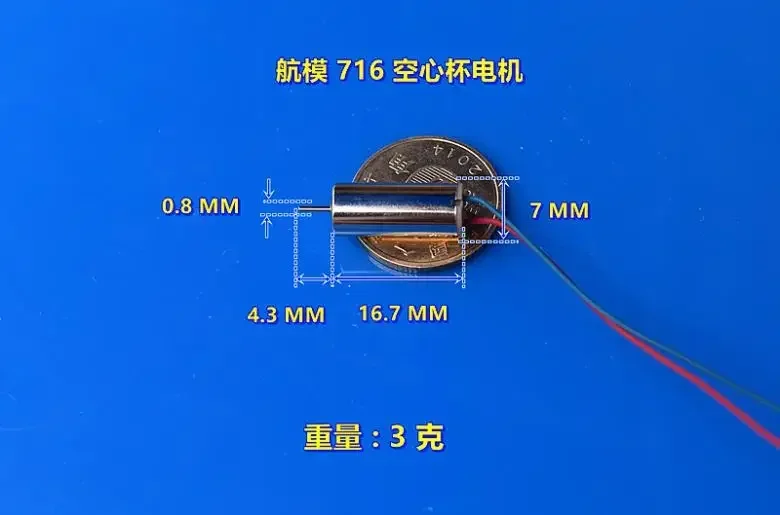

Model: 716A,716B
( 716A is Red&Blue wires; 716B is Black&White wires.)

716 motor parameters are as follows:

Motor outer diameter :7 MM

Length of motor: 16.7mm

Motor axle diameter: 0.8mm

Output shaft length: 4.3mm

Motor weight: about 3 grams

Line length: about 75 MM

Voltage: DC3.7 V

No load current :60 MA (locked-rotor current 2.8A)

No load speed: 47,000 RPM

DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories

Model: 720

Voltage: 3.7V

Current: about 120ma

Speed: about 50000

DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories

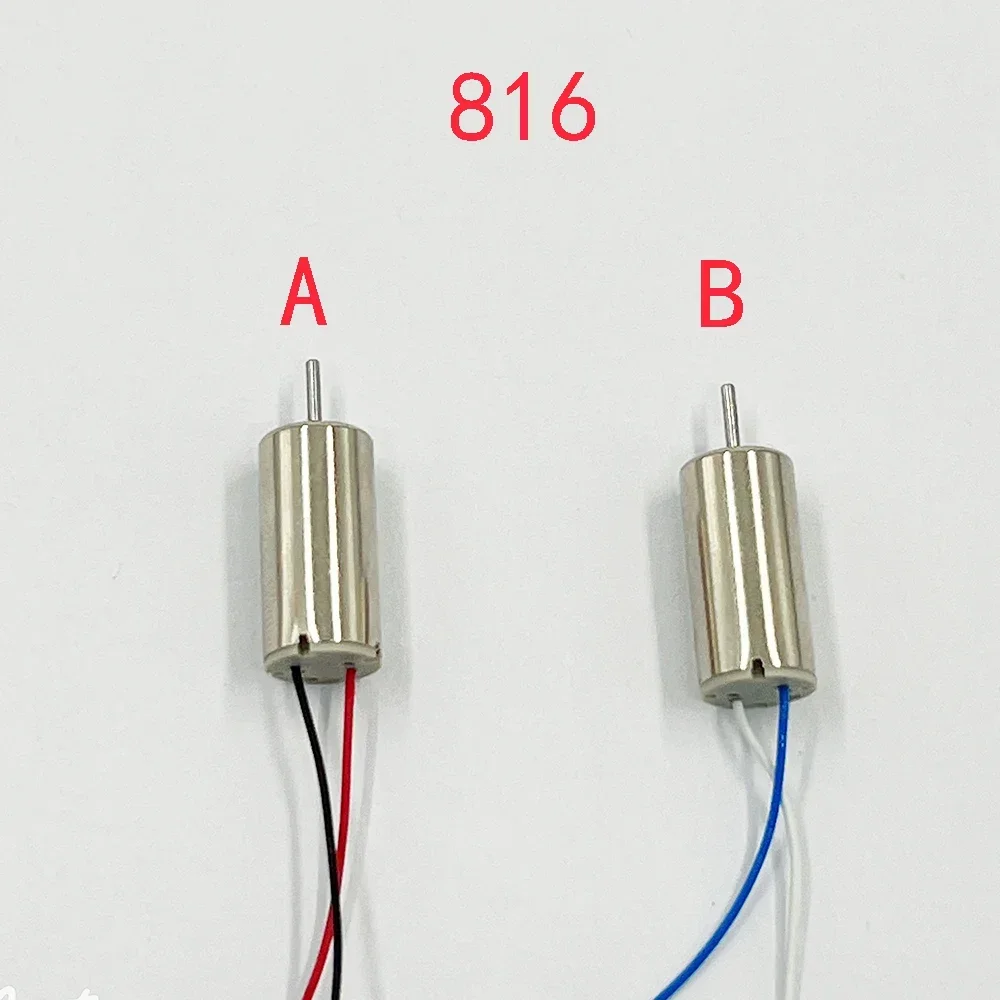

Model: 816

[Size]: 8 mm * 16.5 mm

[Voltage]: 3.7V

[Shaft diameter]: 1 mm
【Shaft Length】: 5.5 mm

[Line length]: 130mm

[Weight]: 4.2 grams

【Current】: about 150 ma

[Speed]: No-load 50000 rpm

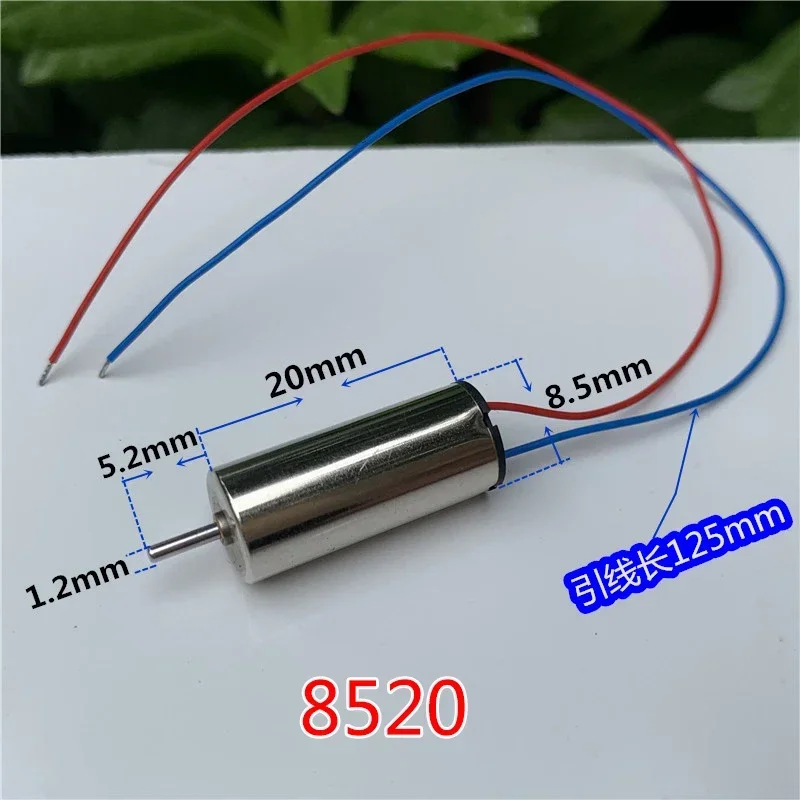

Model: 8520

Weight: 5.2 g

Voltage: 3.4 V

No-load current: 240ma

Speed: about 52000 rpm

DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories

Model: 1020 ( with 1.25mm pitch terminal)

Size: 10mm * 20.7mm

Diameter: 1.2 mm

Shaft length: 5.3 mm

Voltage: 3.7 V

Speed: about 40000rpm

Lead wire:  128mm

Weight: 8.5g

DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories

Motor parameter: 8523
1.Motor diameter: 8.5MM
2.Motor length: 23MM
3.Output shaft diameter: 1.2MM
4.Output shaft length: 6MM
5.Cable length: 190MM
6.Weight: 6g
7.Voltage: 7.4V
8.Speed: about 55000RPM

DC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine AccessoriesDC 3V-3.7V Mini Coreless Motor 412,612,615,716,720,816,8520,1020 High Speed Micro Motor RC Drone Quadcopter Engine Accessories

Package Include:

Motor * 1pcs
