Specification:

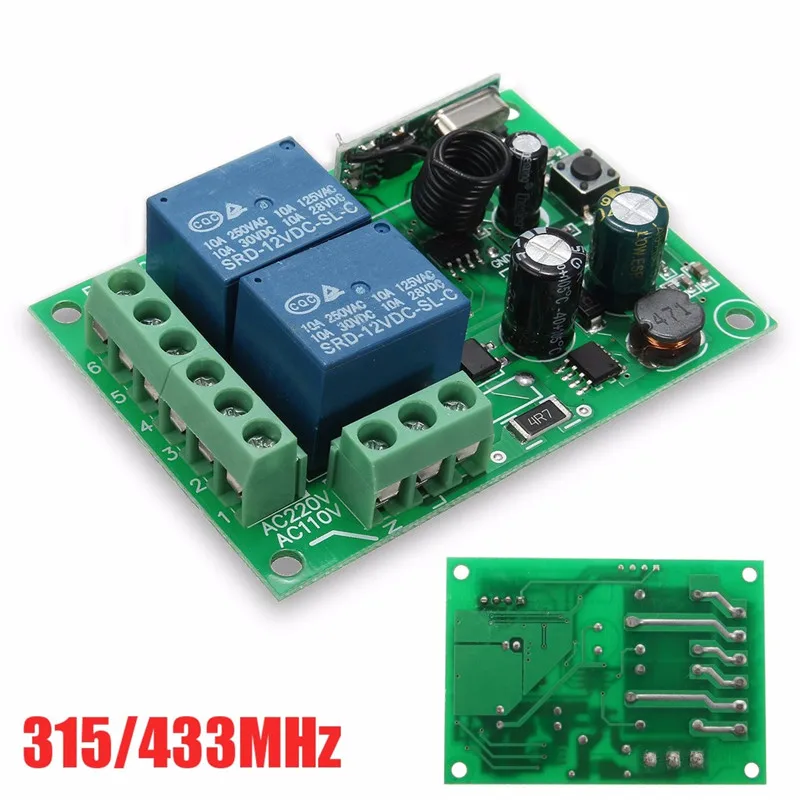

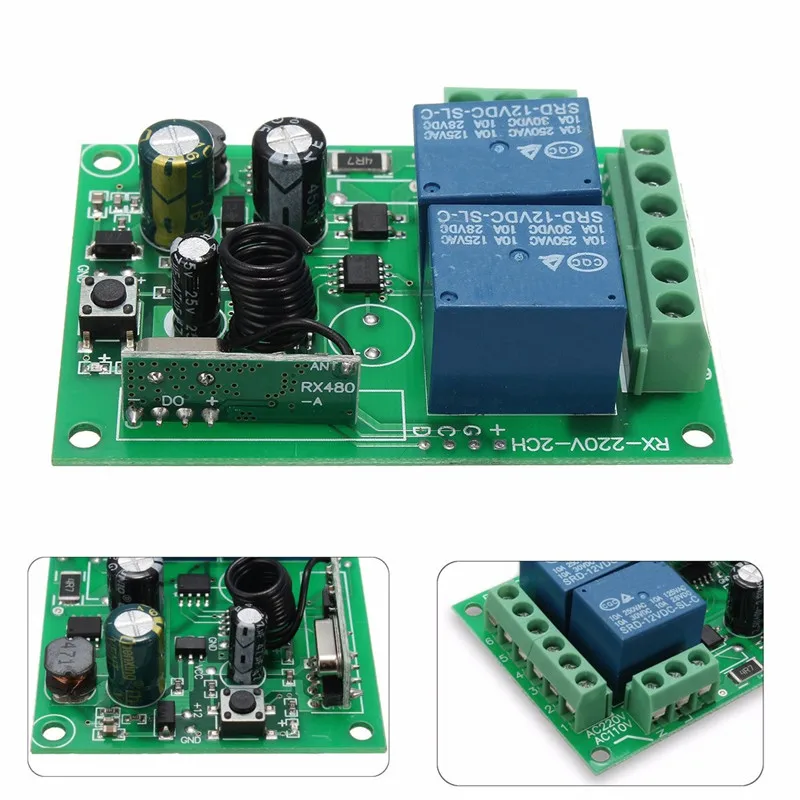

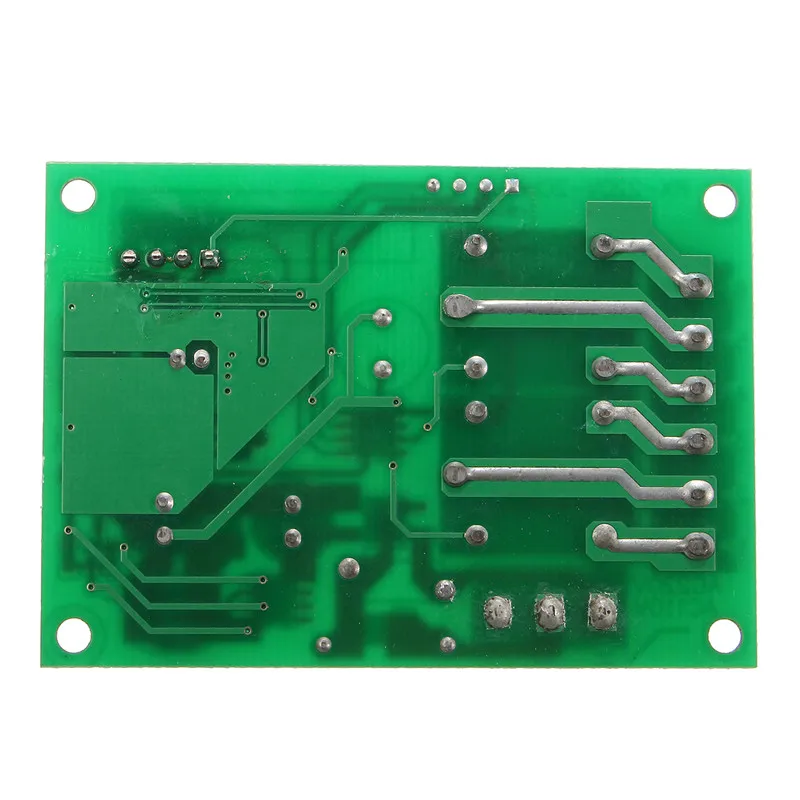

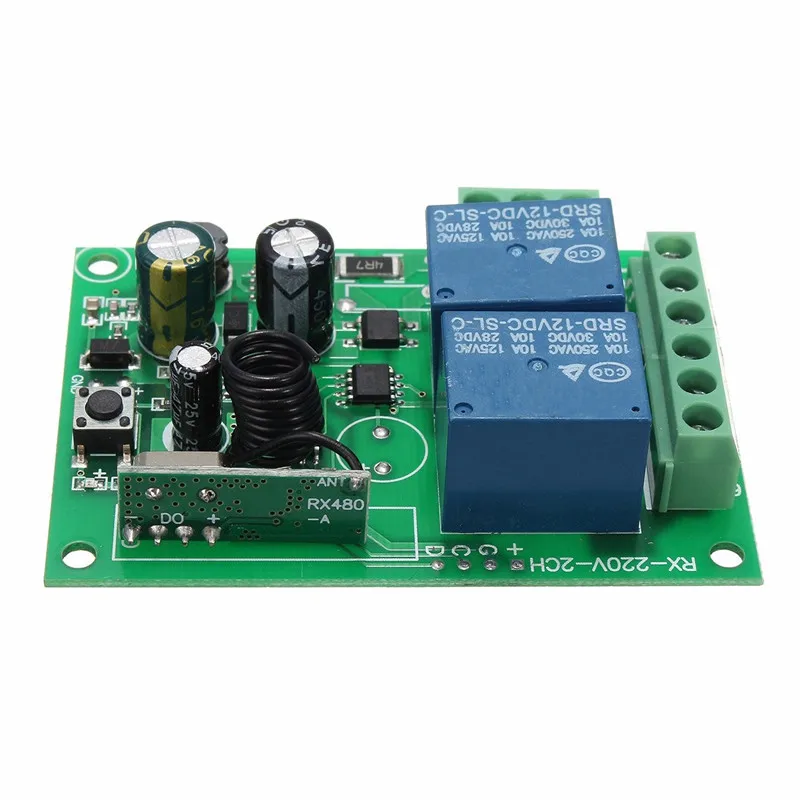

Name:Wireless Relay Switch
1.Input Voltage: AC85V-AC220V

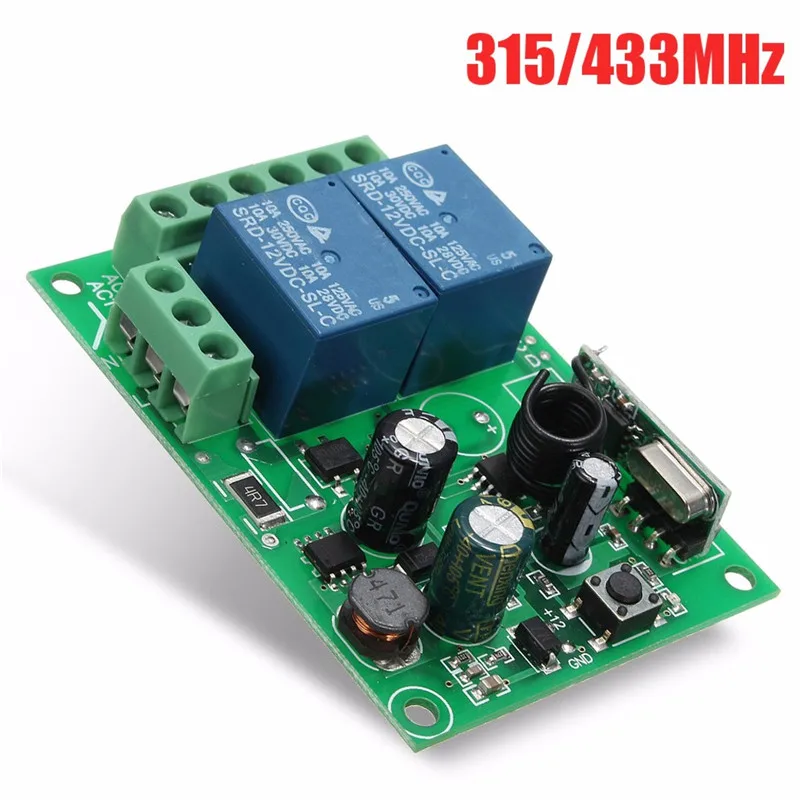

2.RF Frequency: 315/433MHZ
3.RF Working mode:Super heterodyne receiver
4.Receiver Sensitivity: -107dBm
5.Remote Control Distance: >100 meter(In open environment)
6.Decoding Way: MCU Software decoding
7.Can store the number of remote control:32
8.Support remote control type: Fixed code, learning code
9.Channel: 2CH
10.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)

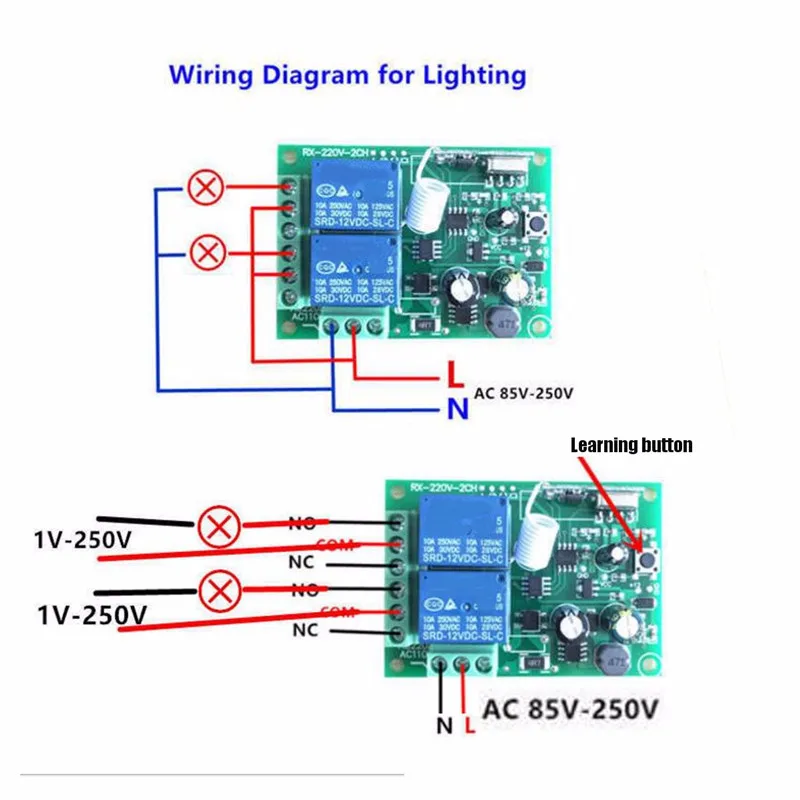

11.Wiring Method:Fixed wiring terminal
12.Rated load:10A 250VAC / 10A 125VAC
10A 30VDC / 10A 28VDC
13.Dimension:6.9cm*4.85cm*1.7cm
Working/output way:
1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Clear & Learn Code:
1. Clear function – After pressing the ”KEY” button 8 times, the LED will go off and release all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is completed.
1. Clear function – After pressing the ”KEY” button 8 times, the LED will go off and release all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is completed.
2, learning function – click the learning button ”KEY”, LED indicator light indicates that the microprocessor to enter the learning state of the code, press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
3. LED flashes to determine the selected function.
* Flashing 1 time – Jogging function
* Flashing 2 times – Self-locking function
* Flashing 1 time – Jogging function
* Flashing 2 times – Self-locking function
* Blink 3 times – Interlock function
Notice:
When using for the first time, make sure to clear the factory code and clear the remote control code.
When using for the first time, make sure to clear the factory code and clear the remote control code.
Package included:
1 x 220V 2 Channel Wireless Relay Switch
1 x 220V 2 Channel Wireless Relay Switch
