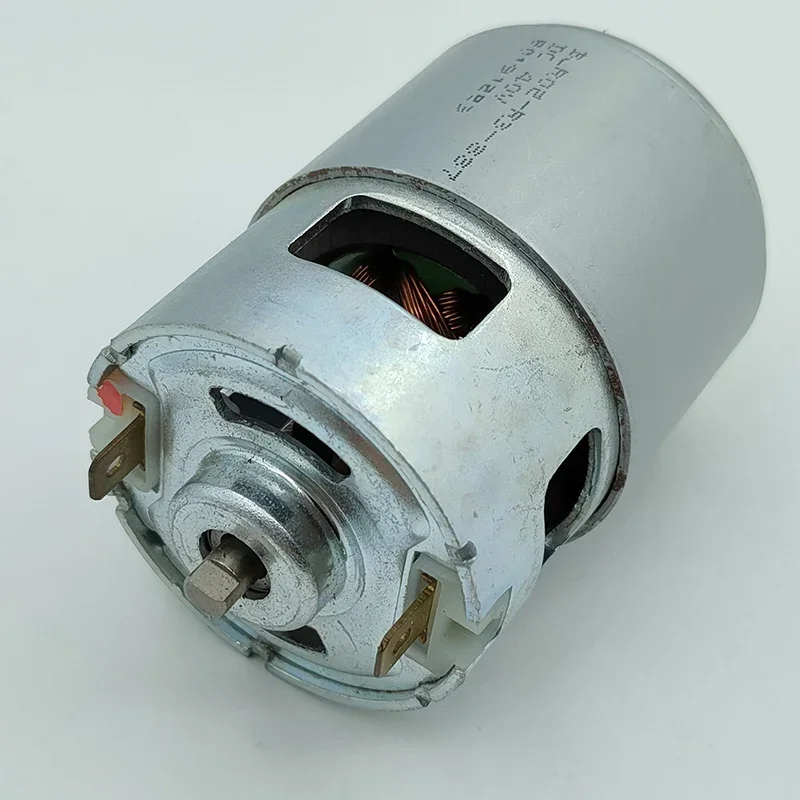

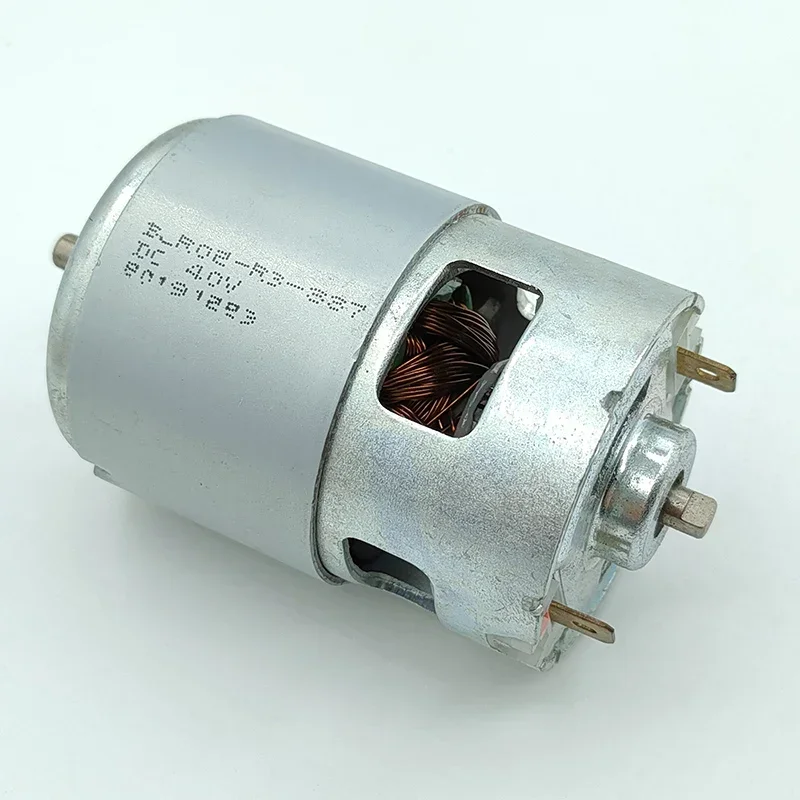

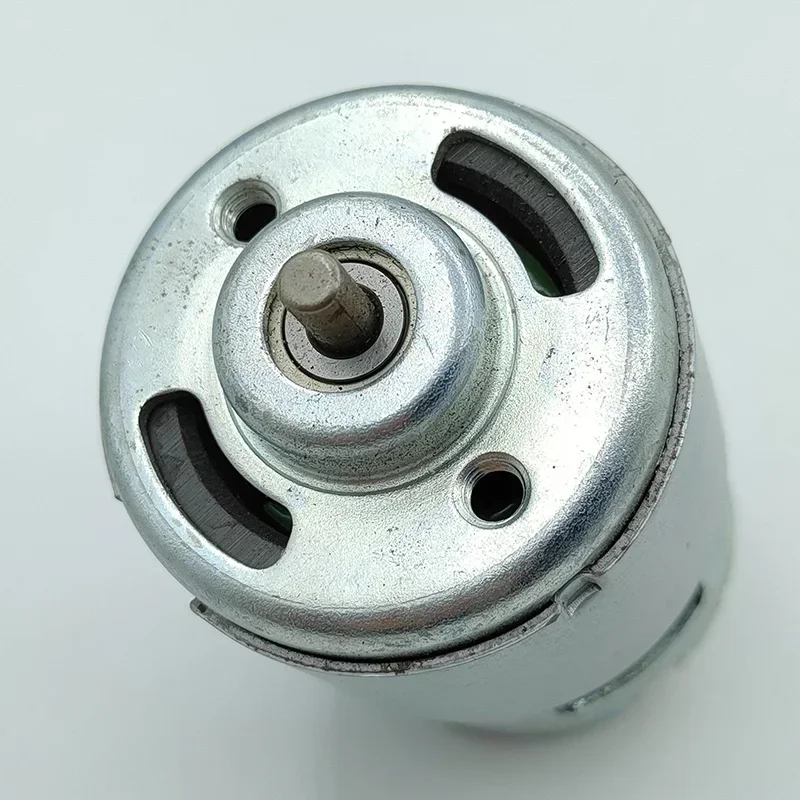

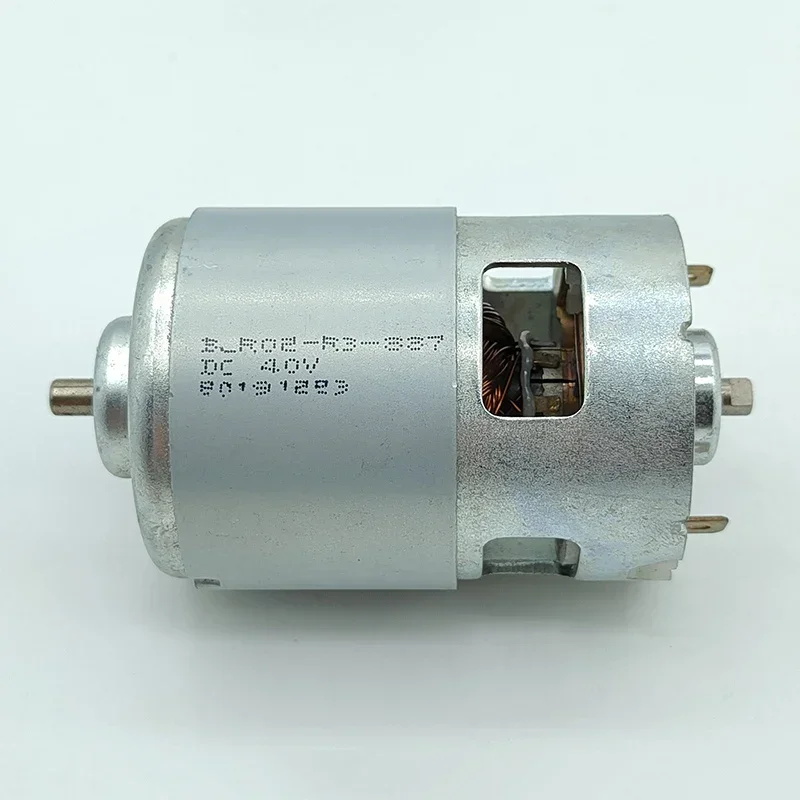

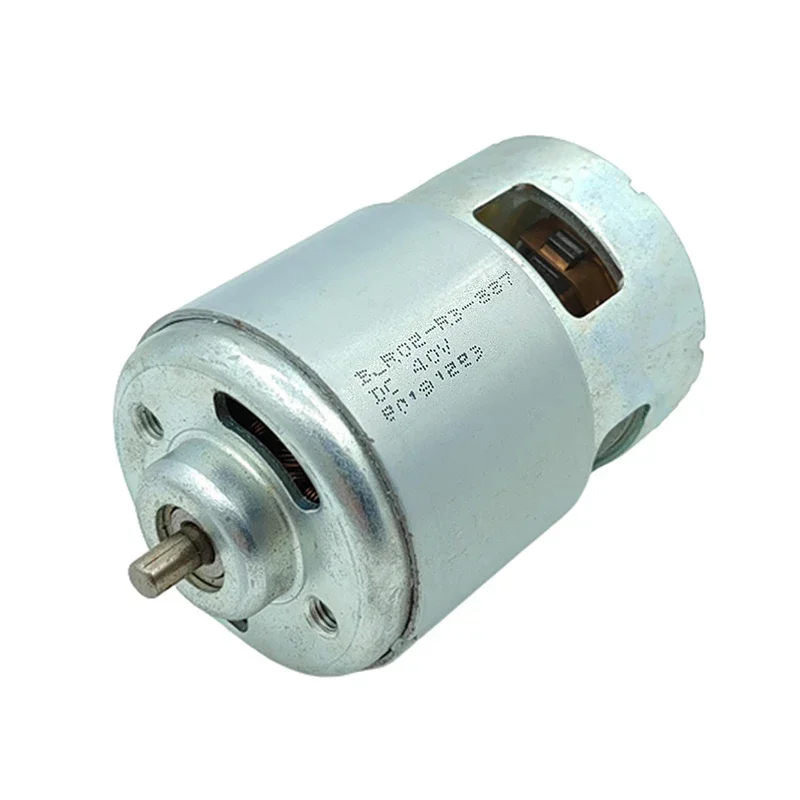

DC 12V 18V 24V 36V RS887 Motor High Speed Large Torque Double Ball Bearing 48mm Motor Chainsaw Cutting Tool Drill Screwdriver
Payment Methods:
Description
- Usage: Home Appliance
- Model Number: RS887
- Construction: Permanent Magnet
- Type: Micro Motor
- Protect Feature: Explosion-proof
- Commutation: Brush
- Efficiency: IE 1
- Origin: Mainland China
- Certification: ce
- Motor diameter: 48mm (with cover 50.5mm)
- Motor height: 67.6mm
- Output shaft diameter: 5.0mm
- Weight: 495g
- Voltage range: DC 12V-40V
- Speed range: 3260RPM-11000RPM
Specification:
Note: The motor body has some scratches, but it does not affect normal use.The motor do not have cooling fan.

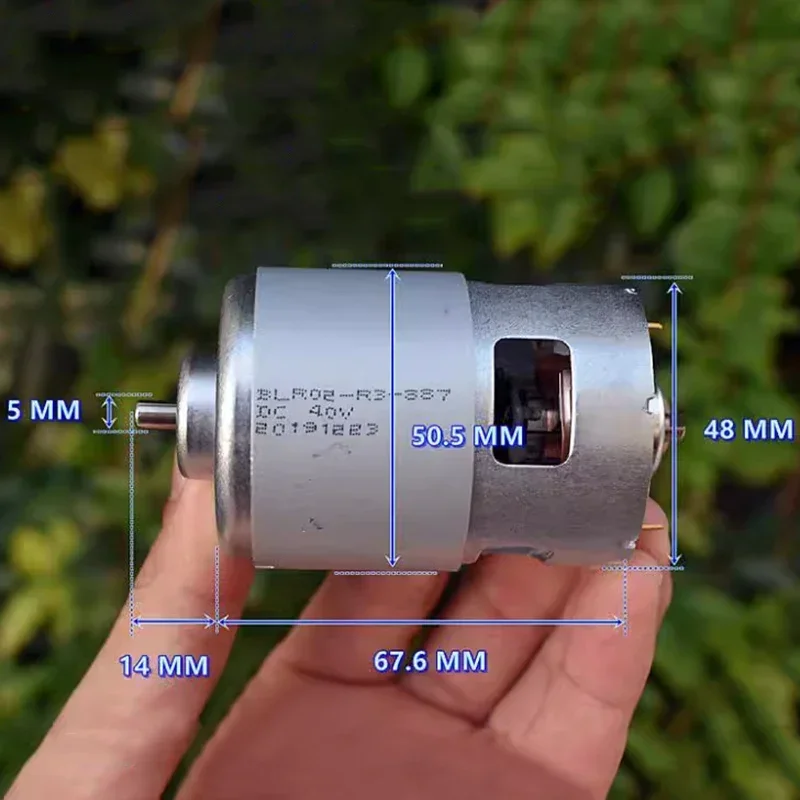

1. Motor body diameter: 48mm (with cover 50.5mm)
2. Motor height: 67.6mm
3. Output shaft diameter: 5.0mm
4. Output shaft length: 7.6mm (include step height 14mm)
5. Screw hole diameter: 4.5mm
6. Screw hole spacing: 32mm
7. Weight: 495g
8. Voltage range: DC 12V-40V
9. Test data:
Voltage: 12.0V No-load current: 0.42A No-load speed: 3260RPM
Voltage: 24.0V No-load current: 0.48A No-load speed: 6600RPM
Voltage: 36.0V No-load current: 0.54A No-load speed: 10000RPM
Voltage: 40.0V No-load current: 0.60A No-load speed: 11000RPM
10.Tips: The rated voltage of this motor is DC40V. If it is pressurized to DC40V, its speed is a little higher than that of DC36V, and its power and torque are also stronger than that of DC36V.
=========================
