Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C
Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C - Image 2
Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C - Image 3
Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C - Image 4
Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C - Image 5
Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C - Image 6

Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C

SKU: 139687

Add to compare
Add to wishlist
11 People watching this product now!

Payment Methods:

Description

Bimetal thermostat KSD301 40C ~140C Temperature Switch Normally Open/Normally Closed Thermostat Control 40 50 60 70 80 90 100C

Product Name: sudden jump type temperature control switch
Model: KSD301
Material: Bakelite ceramics
Switch type: normally closed /normally open.
NO: Electricity up to temperature
NC: Stop over temperature
Working voltage: 250V
Overload current: 10A
Action temperature: 0 degrees to 300 degrees (c)

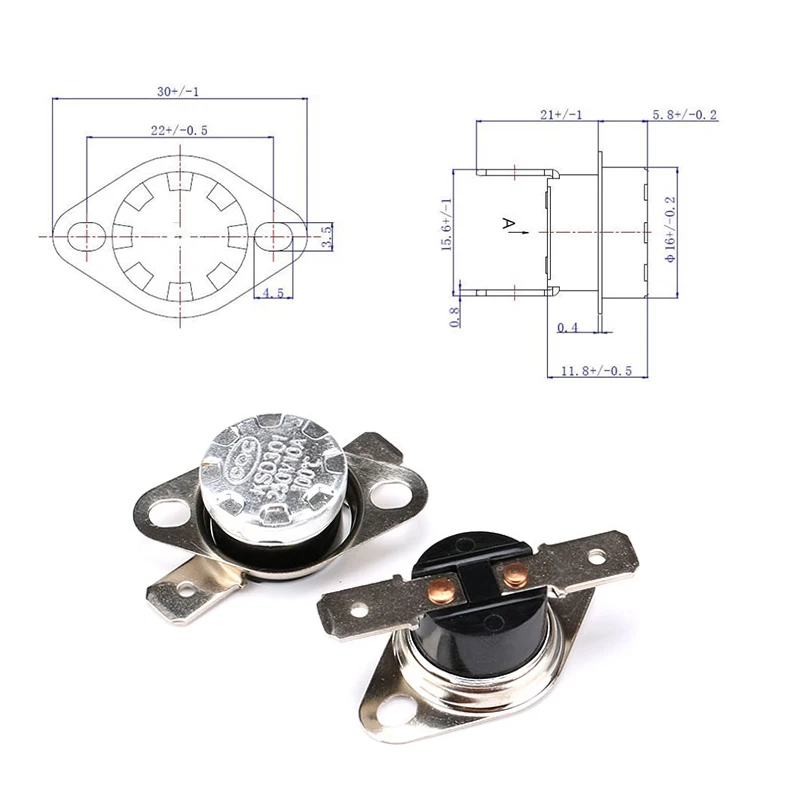

Foot width: 6.3mm
Contact life: ≮50000 times
Contact resistance: ≤50MΩ
Insulation resistance: ≥100MΩ
Electrical strength: 2500V/S without breakdown, no flashover
Operating temperature: nominal temperature ± 5 ° C recovery temperature is nominal temperature -25 ± 8 ° C

Note:

NC:Normally Closed

When the temperature>the action temperature

The current can not pass throught (Turn Off)

NO:Normally Open

When the temperature>the action temperature

The current pass throught (Turn ON)
