Bevenbi MKPA-C series 100V Frequency divider metallized polypropylene film HIFI-end audio fever capacitor freeshipping
Payment Methods:
Description

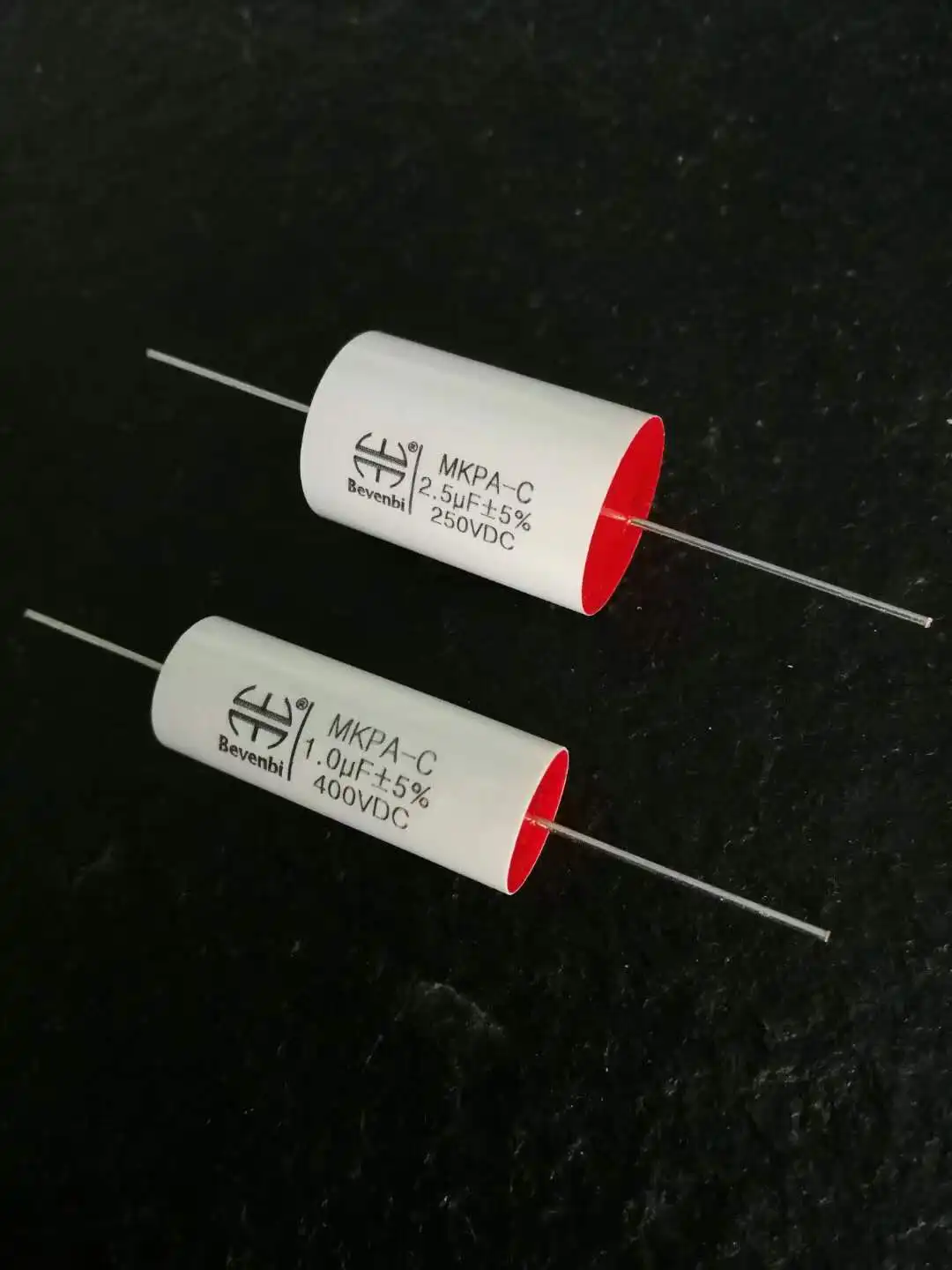

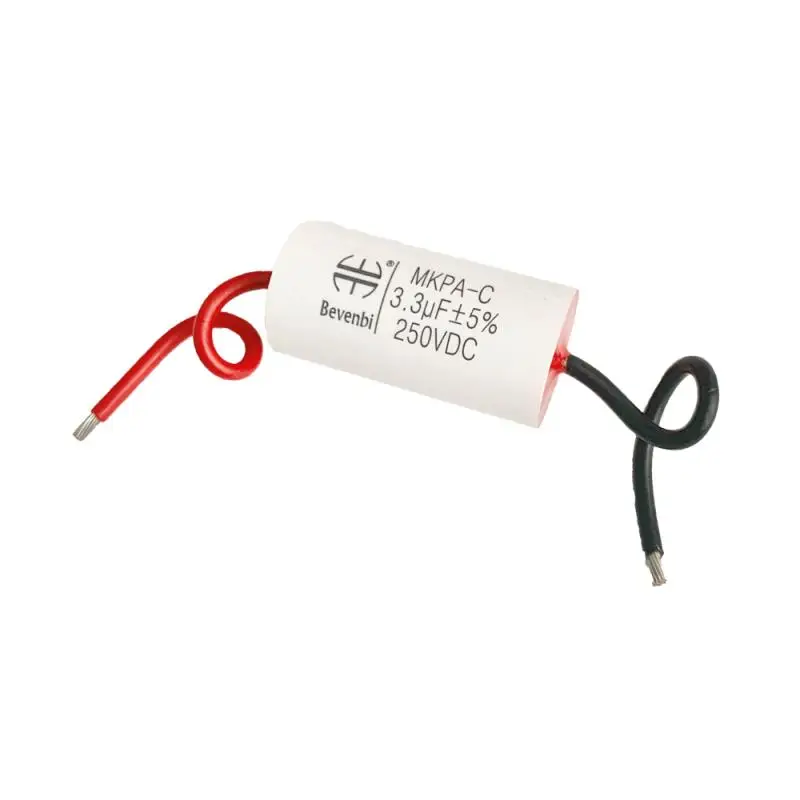

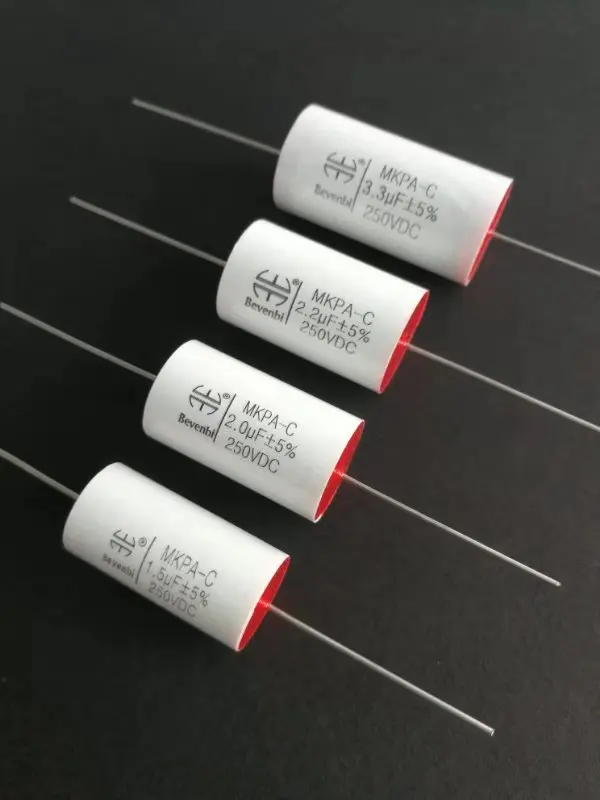

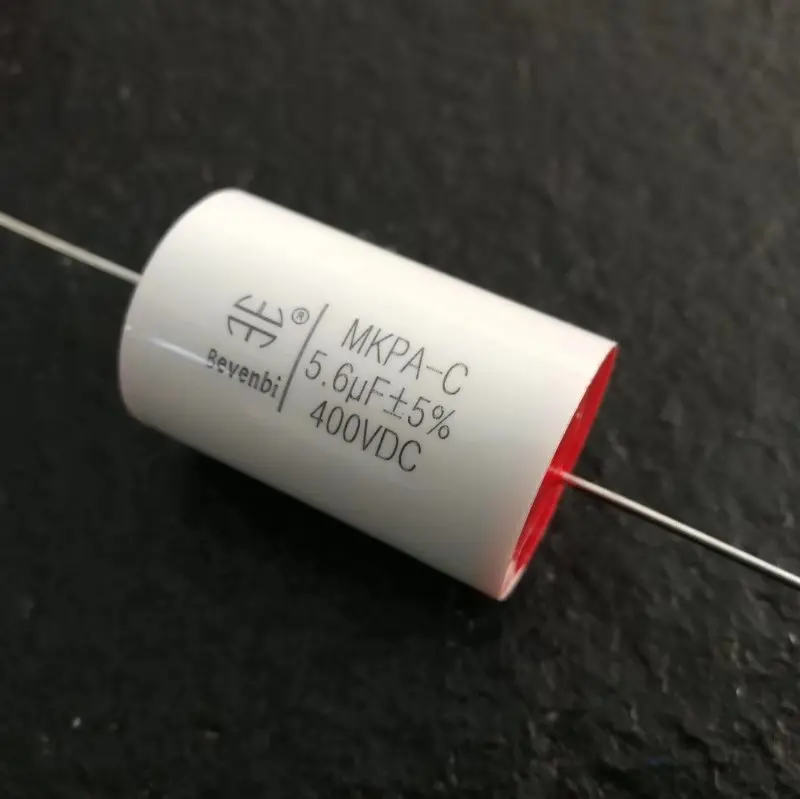

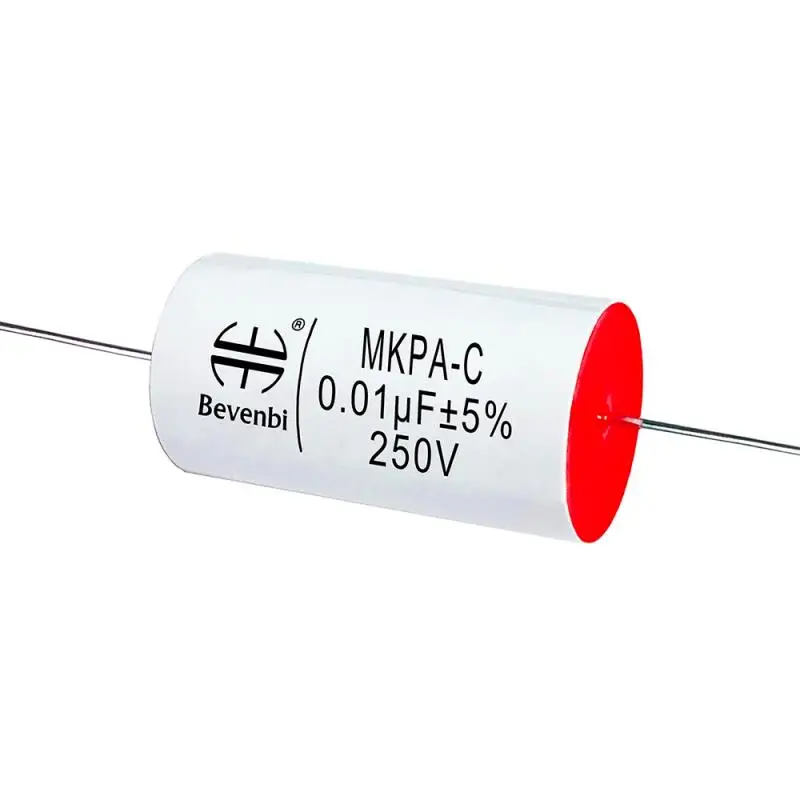

BEVENBI metallized polypropylene film high-end audio capacitor
MKPA-C series (horizontal cylindrical, high-purity tinned copper wire)
The MKPA-C series of products are made of high-density polypropylene base material, vacuum and dust-free evaporation of aluminum-tin alloy layer, with laboratory ring
Environmental heat treatment. The two ends of the electrodes of some types of products are matched with copper, silver and other materials in proportion, and they are covered with insulating epoxy resin with a flame retardant grade of 94V-0.
Cover, according to the grade of use, the lead wire is led out with tinned copper wire, the appearance is neat and elegant. After the product was launched, it received many praises from customers at home and abroad.
Because MKPA-C series products are manufactured in China, their prices are lower than imported brands, and the key performance of capacitors is no less than
Imported capacitors. It is the best choice for customers who pursue high-quality music effects and care about product costs.
Applications of MKPA-C series products: high-end power amplifiers, crossovers, HIFI speakers, high-fidelity vacuum tube machines.
1) Appearance type and color: The body is white tape, red epoxy resin, and black printing (not falling off, not deforming)
2) Wire length: ＞38mm; Wire diameter: The diameter of the main body is less than 8mm, the wire diameter is 0.6mm, and the wire diameter is 0.8 or 1.0mm if the diameter is over 8mm

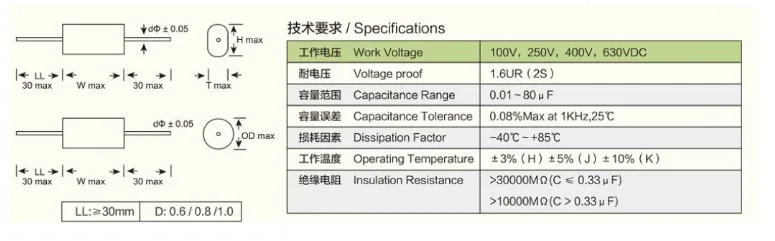

3) Product characteristics
Capacity error: ± 1% (F), ± 2.5% (H), ± 5% (J)
Maximum loss: (tan δ ): Max. 0.0007(0.07%) For “MKPA-C” AT 10000Hz
Working temperature:-40 ºC TO +100ºC
Insulation resistance I.R.: C ≤ 0.33μF, I.R. ≥ 10000 Mega-Ohm (AT 25 ºC, 1min)
C> 0.33μF, I.R ≥ 8000 Mega-Ohm (AT 25 ºC, 1min)
Life test: mark voltage plus 160% of rated working voltage at 85ºC / 2,000 hours
Humidity test: Max. 5% D.F. Max 2% I.R. Min. 7,000 Mega-ohm Under R.H. 95%@40ºC 1,000 Hours
Wire bending test: Use 90º to fold back and forth twice without breaking, tensile test: 25 ºC 1.5Kgs/ 30 minutes
