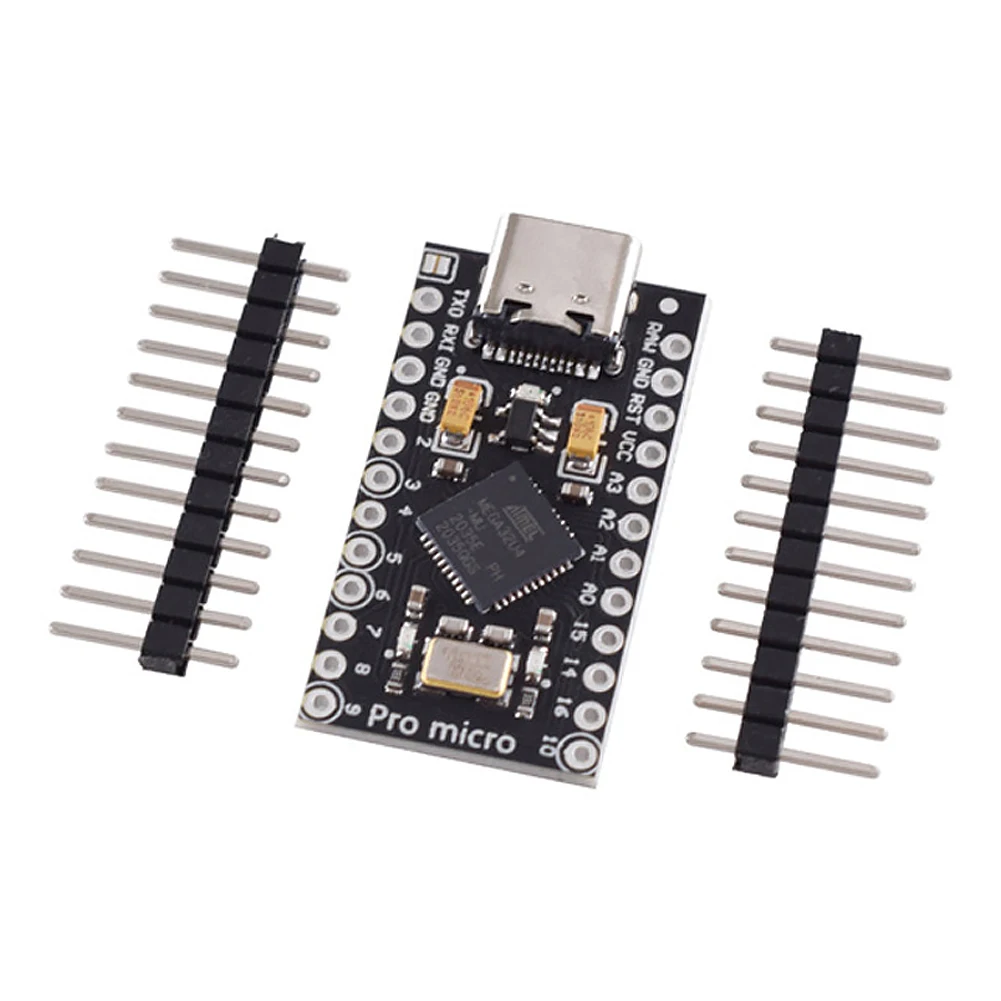

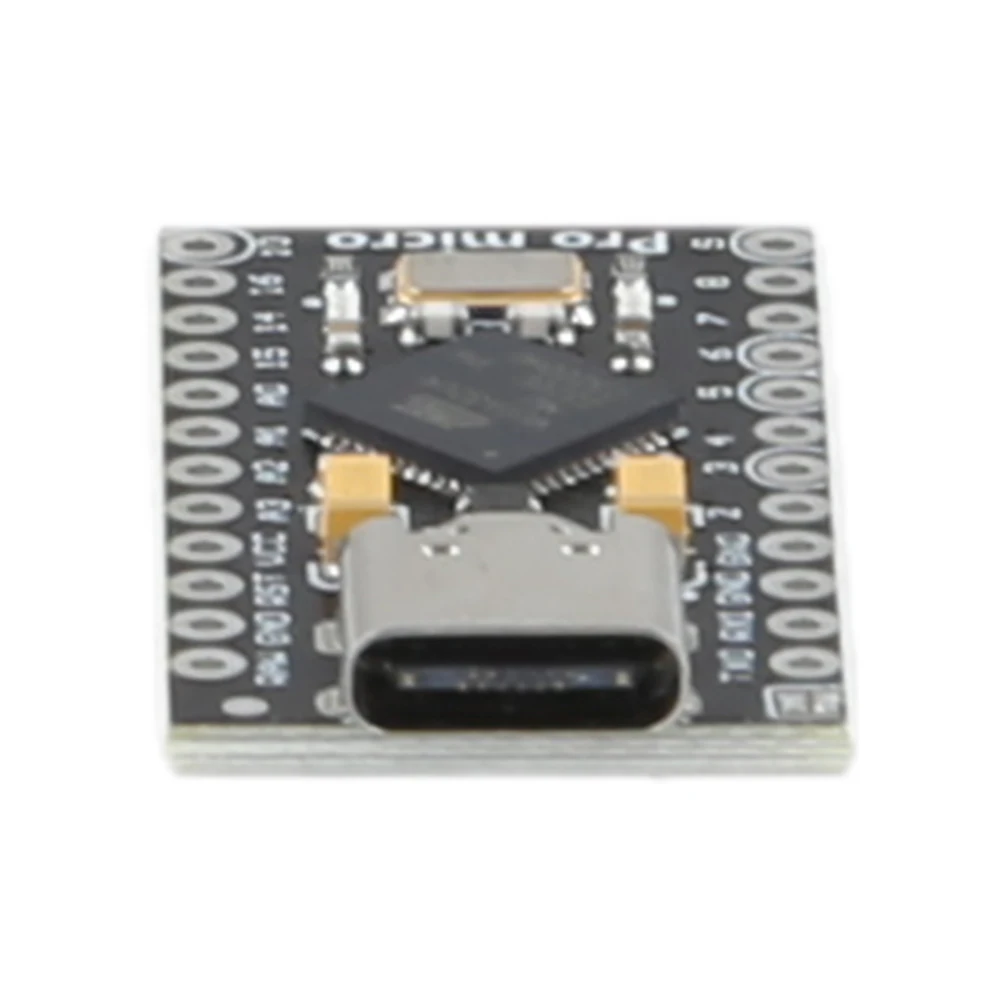

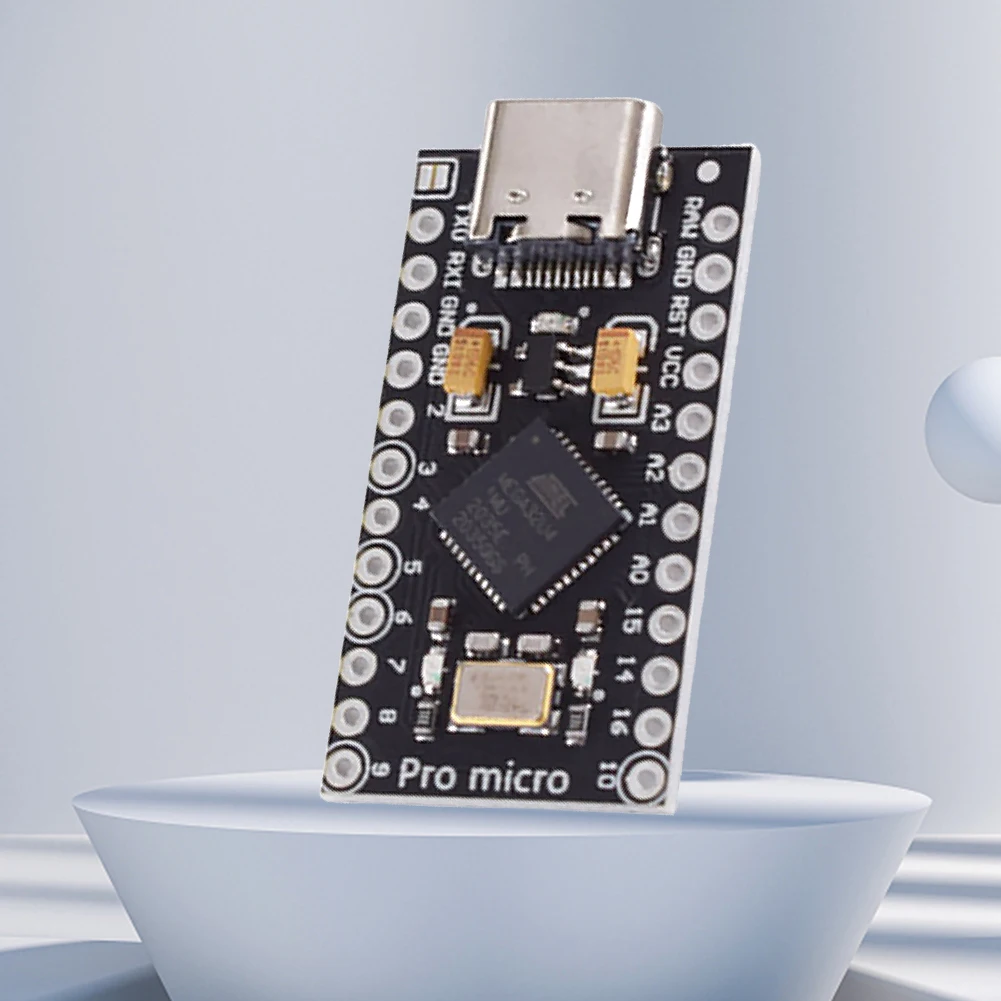

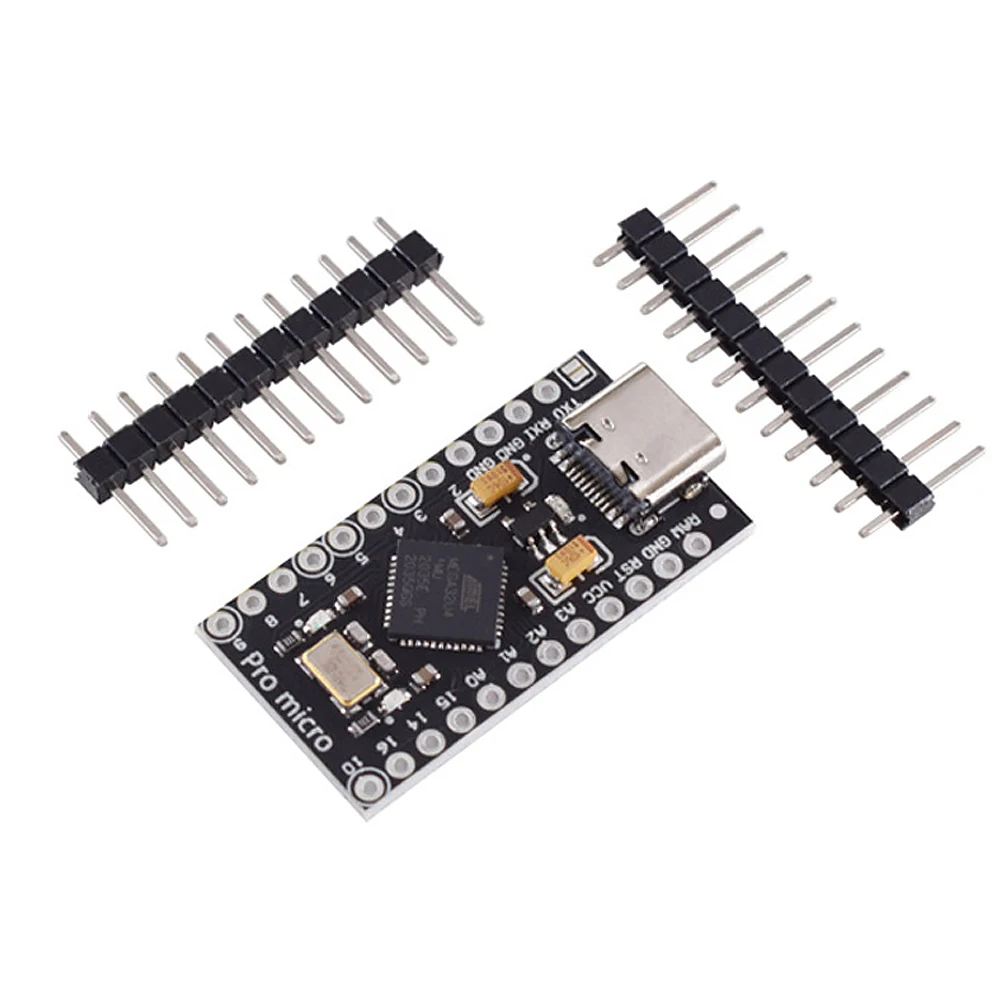

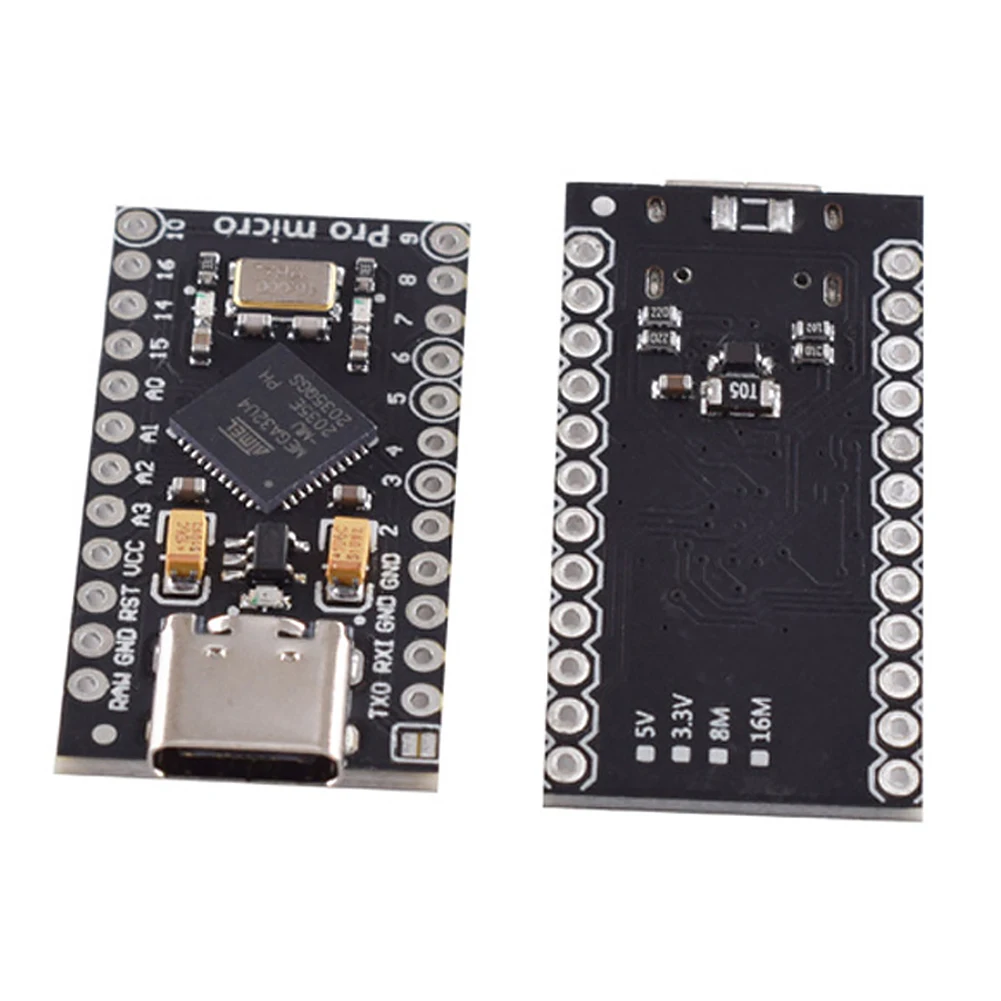

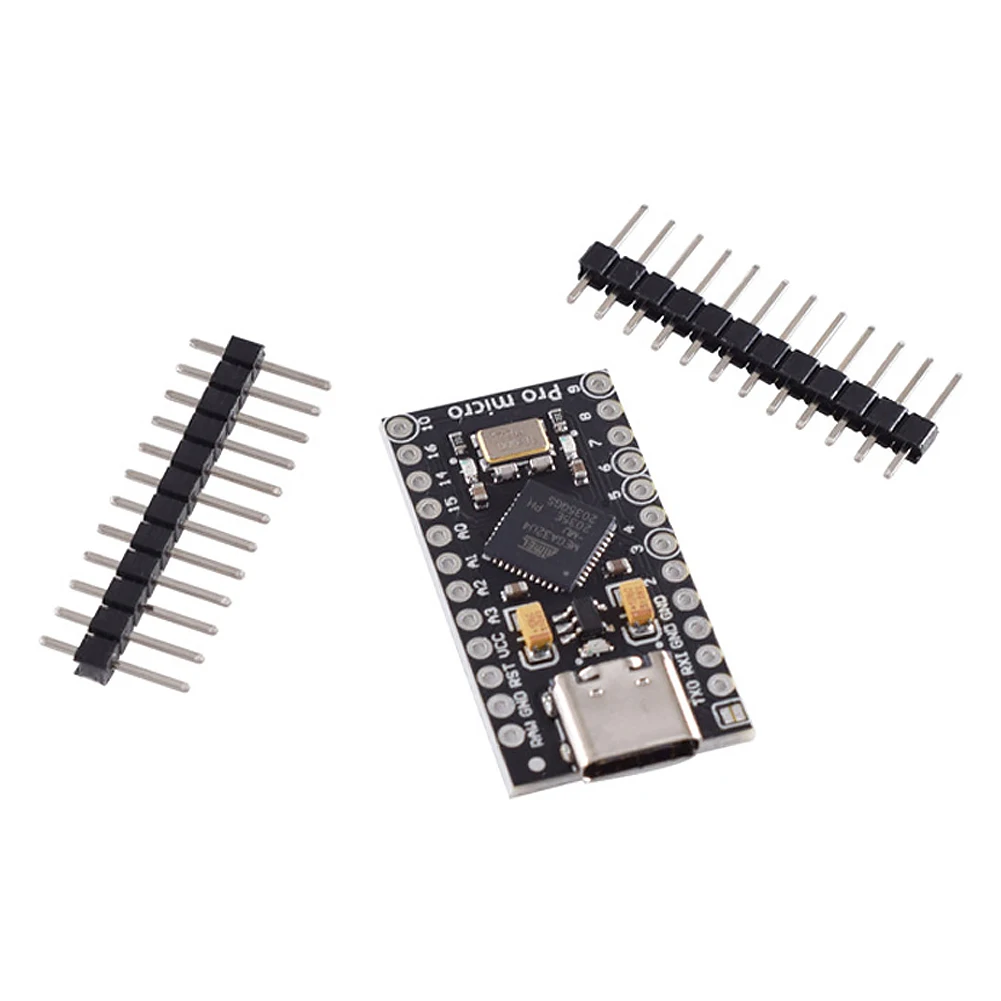

ATmega32U4 Micro USB/Type-C Pro Micro Board with 2 Row Pin Header Pro USB Type-C Micro-Controller Board for Leonardo USB Board

ATmega32U4 Micro USB/Type-C Pro Micro Board with 2 Row Pin Header Pro Micro Module TYPE-C USB Board 16MHz for Leonardo USB Board
Features:
1.Powerful Processing Capability: The ATMEGA32U4 USB Type-C pro micro development board is equipped with the ATmega32U4 microcontroller, offering high-performance processing capability and ample storage space.
2.Type-C USB Interface: The micro / Type-C USB board features a Type-C USB interface, which supports reversible plug orientation and offers high transmission speeds. This allows for easy connection to computers and other external devices, enabling seamless data transfer and communication.
3.Multiple Communication Interfaces: The pro micro USB controller board provides multiple communication interfaces, including UART, I2C, and SPI, facilitating seamless communication and data exchange with other devices.
4.For Arduino Compatibility: Based on the ATmega32U4 microcontroller, this micro USB/Type-C pro micro board is fully compatible for Arduino development platform. Users can leverage for Arduino IDE for development and programming, utilizing the extensive for Arduino library and ecosystem to quickly implement various functionalities.
5.Open-Source Support: The pro micro module Type-C USB board adopts an open-source design and has the support of a vibrant open-source community. Users can share project experiences, seek technical assistance, and access a wealth of code libraries and resources, fostering collaboration and innovation.

Specification:
Origin: Mainland China
Type: Module
Condition: New
1. Microcontroller: ATmega32U4
2. Operating voltage: 5V
3. Input Voltage: DC6-16V
4. Flash:32 KB
5. SRAM:2.5 KB
6. EEPROM:1 KB
7. Clock Speed:16MHz
8. Size:35*18*5mm/1.37*0.7*0.2in
Product Overview:
The Pro Micro is similar to the Pro Mini except that it is equipped with an ATmega.32U4. USB connectivity is added to the board due to the USB transceiver inside the ATmega32U4 chip: it has a 9-channel, 10-bit ADC, 5 pulse-width modulation pins, 12 DI0s, and hardware serial connections to RX and TX. It also has a voltage regulator, so it can accept up to 12 volts DC.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
