AC 220V 2000W Motor Speed Controller 25A Electronic Voltage Regulator Module High Power Speed Controller Regulation Small Dimmer

AC 220V 2000W Dimming Dimmers 25A Electronic Voltage Regulator Module with Control Knob Adjustable Motor High Power Small Dimmer

Feature:
1. High Power Load Capacity: The 2000W SCR voltage regulator can withstand high-power loads, making it suitable for applications that require high-power supply regulation. It provides stable and reliable power output to meet the demands of high-power devices.
2. Wide Range of Regulation: The dimming dimmer offers a wide range of adjustment, allowing for precise voltage regulation according to specific requirements. Users can flexibly adjust the power output within a certain range to suit different application needs.
3. Strong Controllability: This motor speed controller utilizes SCR (Silicon Controlled Rectifier), also known as a thyristor, as the regulating element. By controlling the switching state of the thyristor, it achieves voltage regulation with excellent response speed and accurate control capability.
4. High Efficiency: The electronic voltage regulator module typically exhibits high efficiency during voltage regulation, reducing energy losses and heat generation. This helps save energy and improves the overall efficiency of the system.
5. Safety and Reliability: The 2000W thermostat small dimmer usually includes multiple protection features such as overload protection, over-temperature protection, and short-circuit protection. It can be used in various power regulation and control scenarios, including home appliances, industrial equipment, lighting systems, and more.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Use voltage: AC 220V
Maximum power: 2000W
Voltage regulation: AC 50-220V

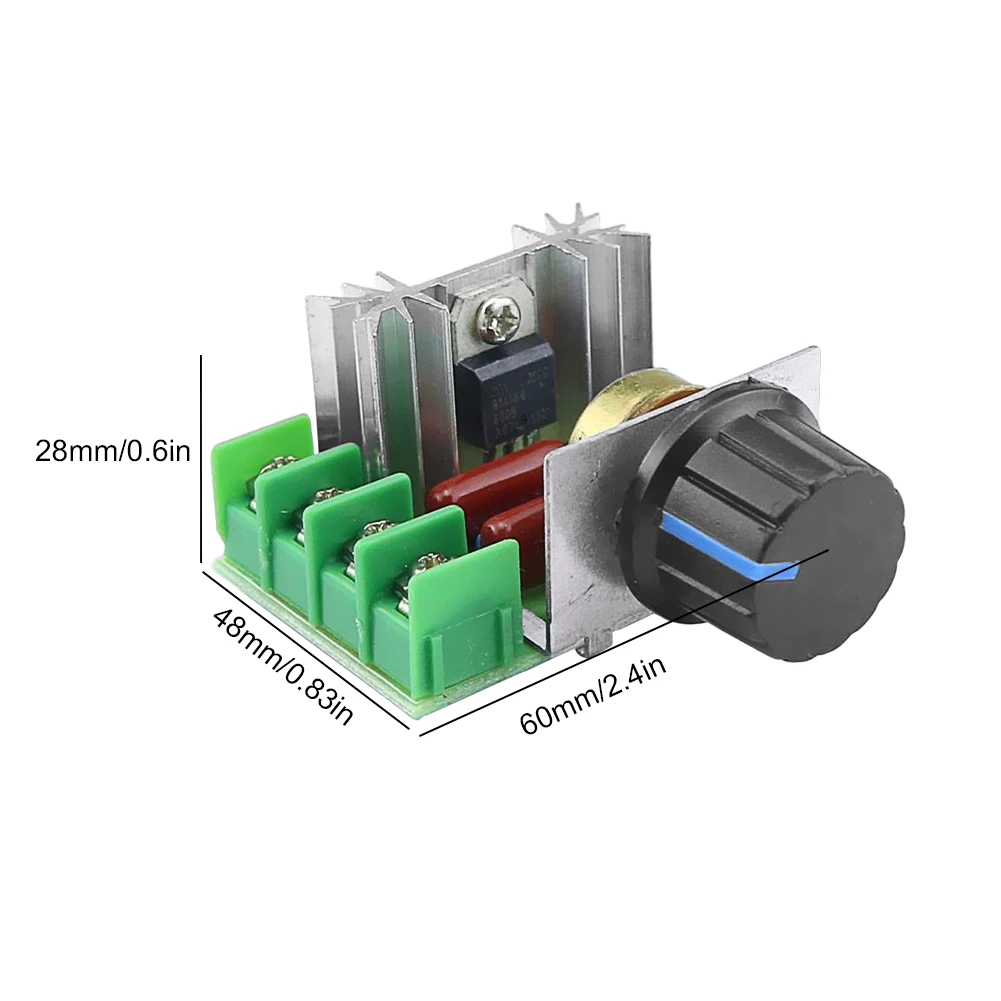

Specification size: circuit board 35x48mm/1.38×1.89inch
Size with knob: 48x60mm(knob direction)*28mm(height)/1.89×2.36×1.1inch
Weight: about 43g
Silicon control voltage up to 1200 volts / current 25A
The regulator with peak voltage absorption circuit to effectively protect high-power SCR, long life and more durable.
Connect this device in series with lamps or household appliances, and then rotate the knob for dimming, speed, voltage and temperature control.
As the power is very large, so the general household appliances or small factories will be enough to use.
The regulator uses two high-power silicon controlled, potentiometer has a nut, no need to add any components can be used, very convenient and practical.
Applicable appliances: electric stove, water heater, lamps, small motors, electric iron. etc

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
