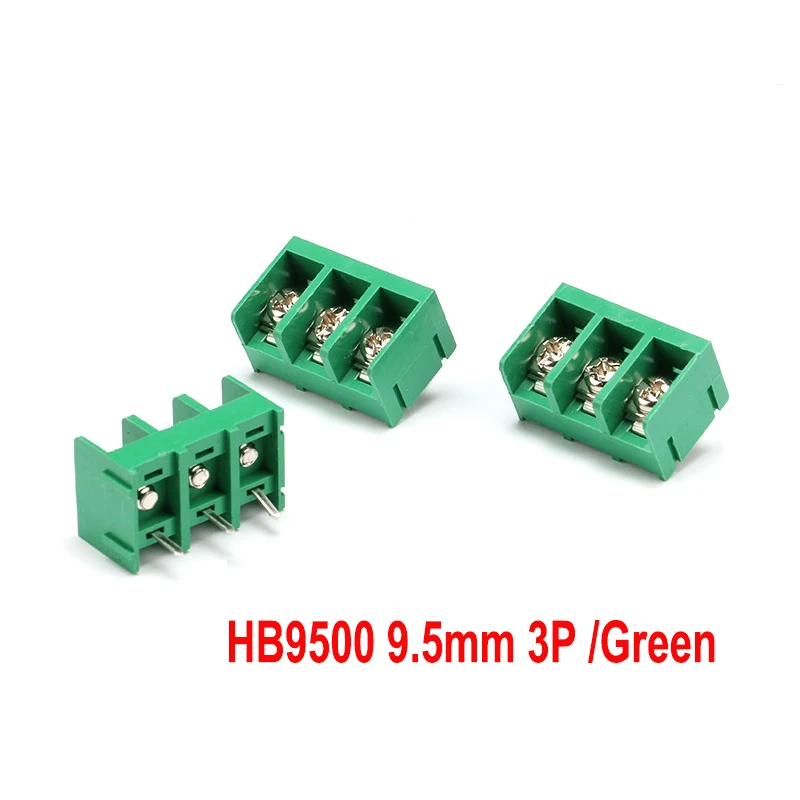

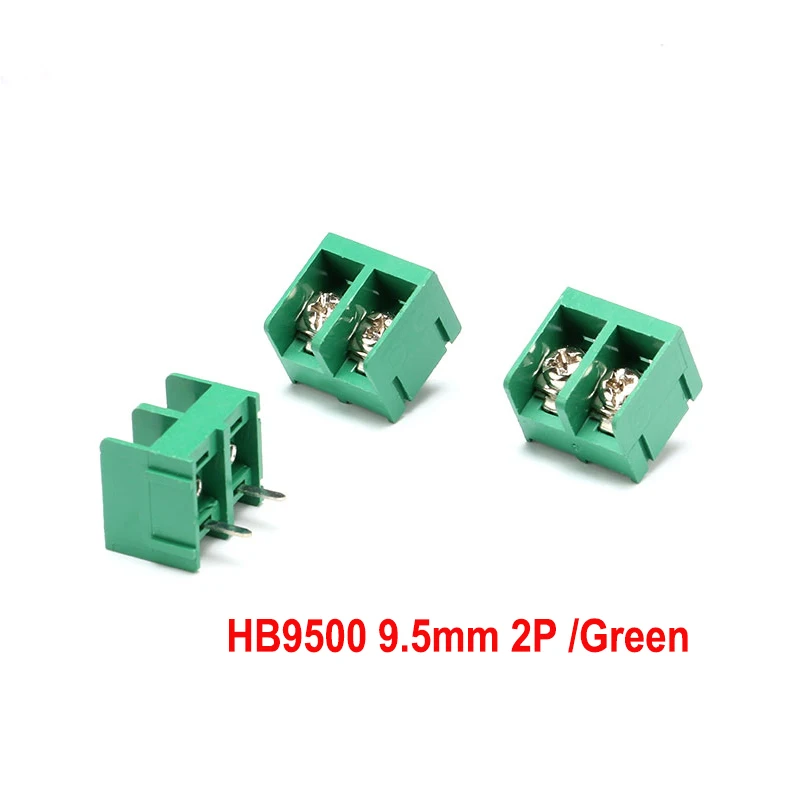

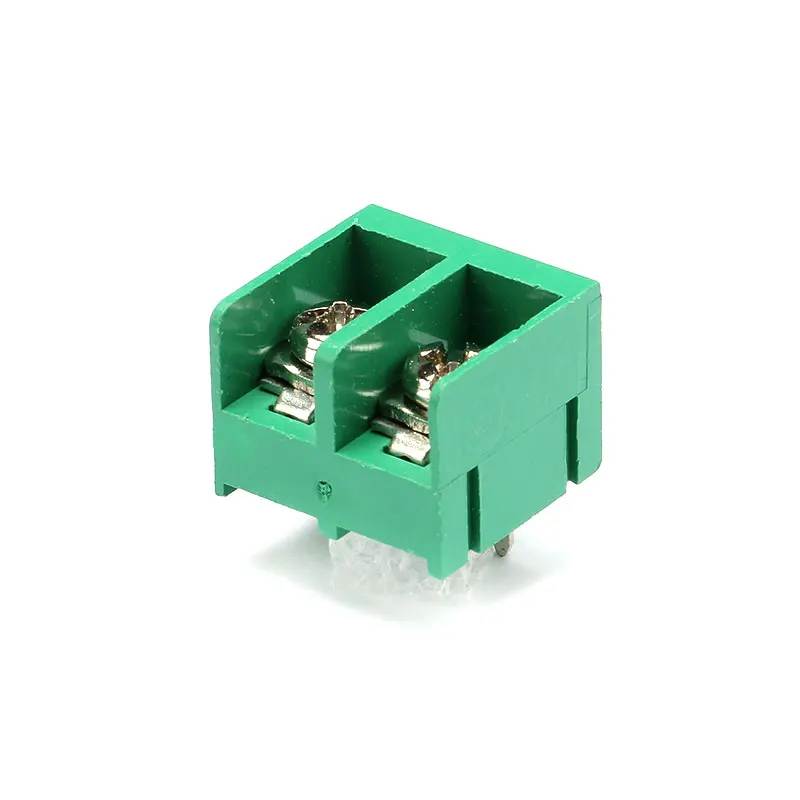

9.5mm Pitch B9500-9.5 2P 3P Fence Type Spliced 300V/30A PCB Screw Connector Terminal Block Connector Green
Payment Methods:
Description
technical parameter
Product name: HB9500-9.5

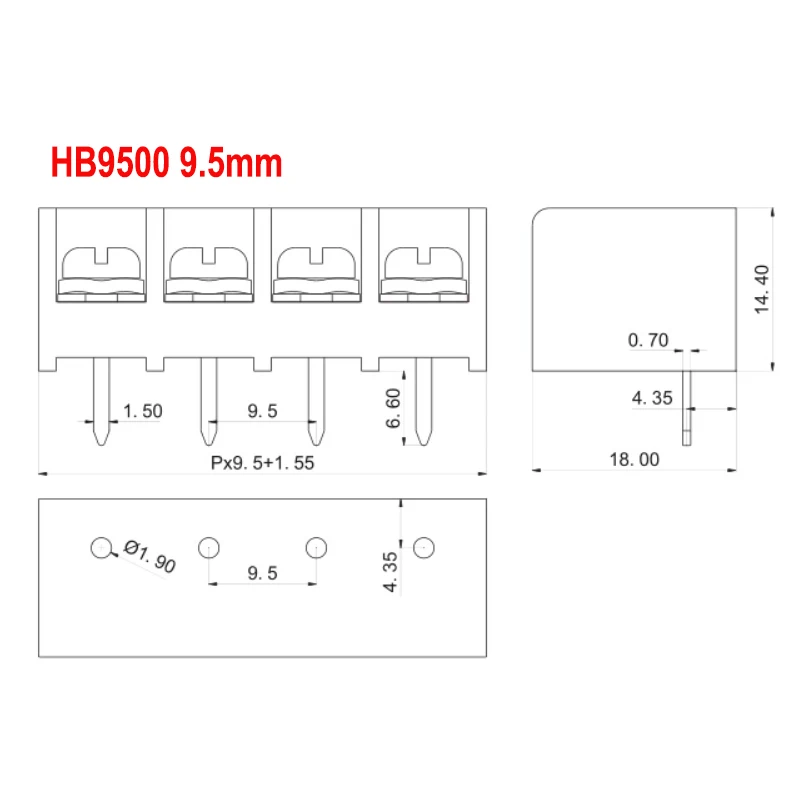

Pitch: 9.5mm(.374″)
Number of poles: 2-30P
electrical properties
Rated voltage: 300V/750V
Rated current: 30A/32A
Rated impulse voltage: AC2000V/1Min
Wire Diameter: 22-12AWG
Mechanical behavior
Ambient temperature: -40°C~+ 105°C
Maximum locking torque: 10Kg.cm
Material and Plating
Plastic parts; PA66.UL94V-0
Screws: M4, steel, galvanized
Terminals: Brass, tin plated
