Description
- Features:

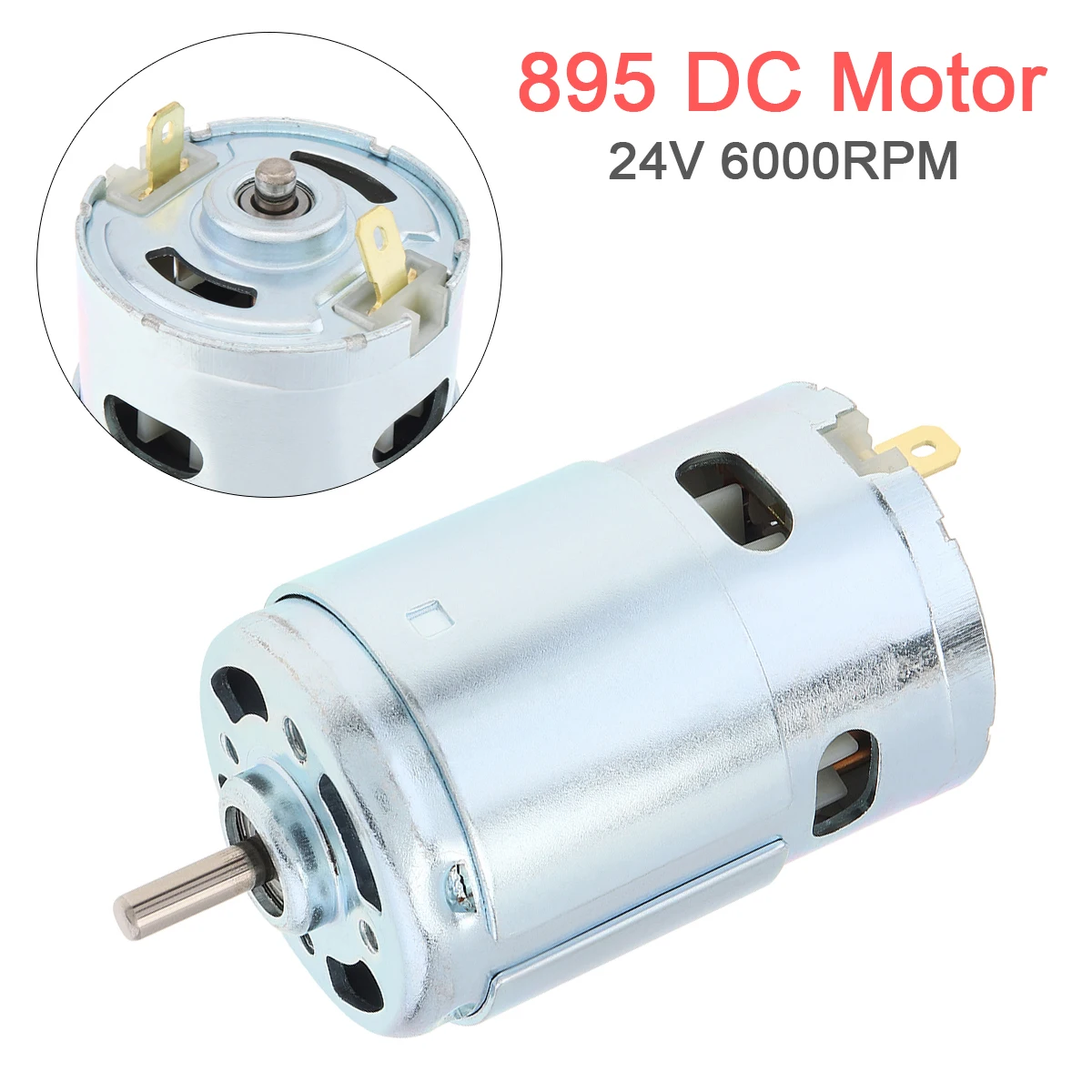

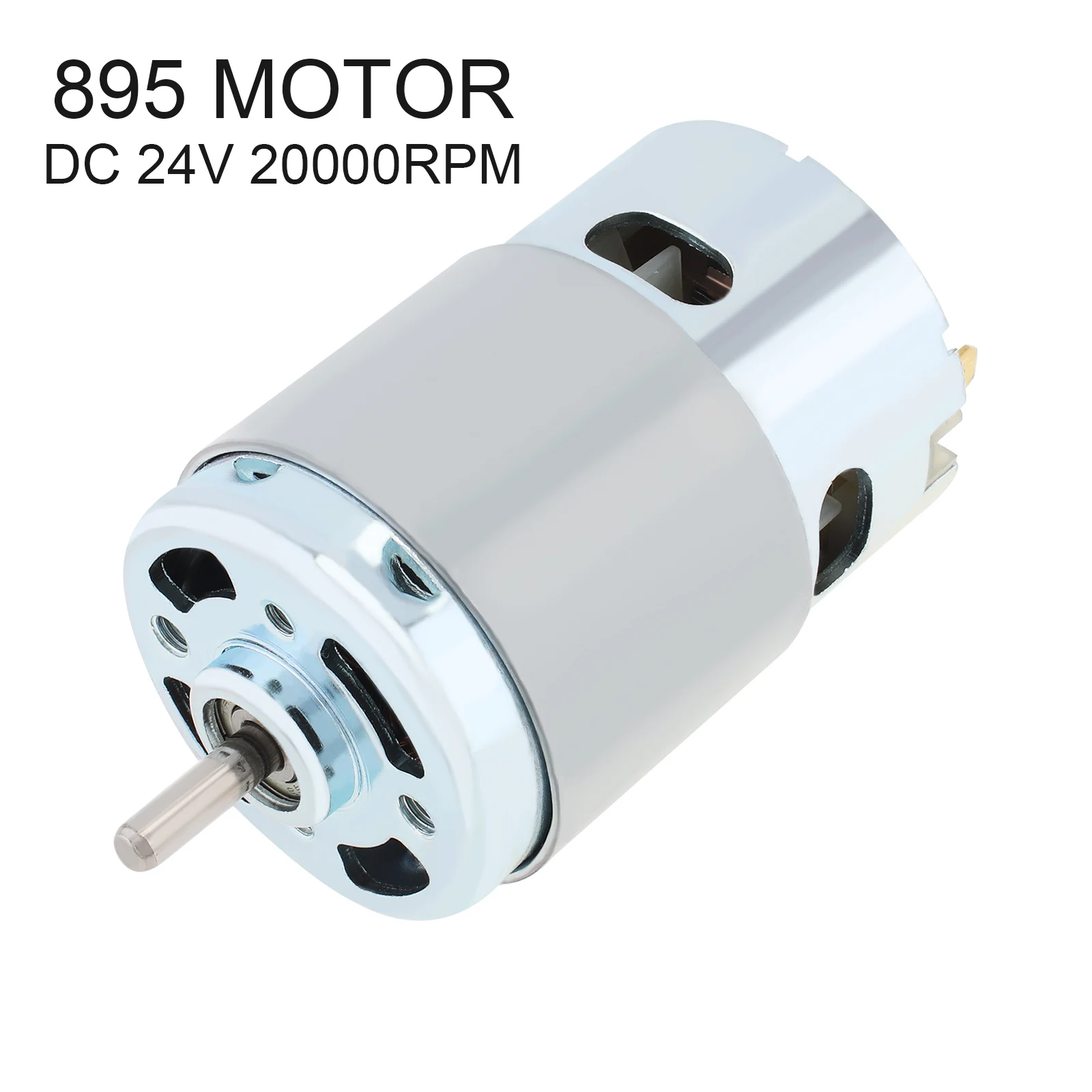

- – 895 DC motor, high speed, high power, sufficient power, low noise, and durable.
- – Adjustable speed, support forward and reverse rotation, power generation/power output two purposes.
- – Front and rear double ball bearings, with heat dissipation impeller, stable speed.
- – Pure copper coil, strong continuous torque output, the torque is more than twice that of the 775 motor.
– Rated voltage: DC12V -24V. (voltage can be used from 12 to 24V)
– It can also be used as a generator. The faster the speed is, the higher the voltage and current will be.
– Support positive inversion (using positive and negative switch or positive negative pole reverse connection).
– Widely used in micro: cutting machine, abrasive belt machine, lathe, milling machine, bench drill, electric hand drill, polishing machine, Buddha bead machine, lawn mower, wire saw, band saw, electric mill, engraving machine, scooter, etc. - Note:
Starting current should be more than 10A. It is recommended to use switching power supply or battery like power.
It is recommended to use 360W24V15A switching power supply, and can not directly use household 220V.
Because the shooting environment, lighting and angle are different, the color of the picture will be somewhat different. Please understand !
