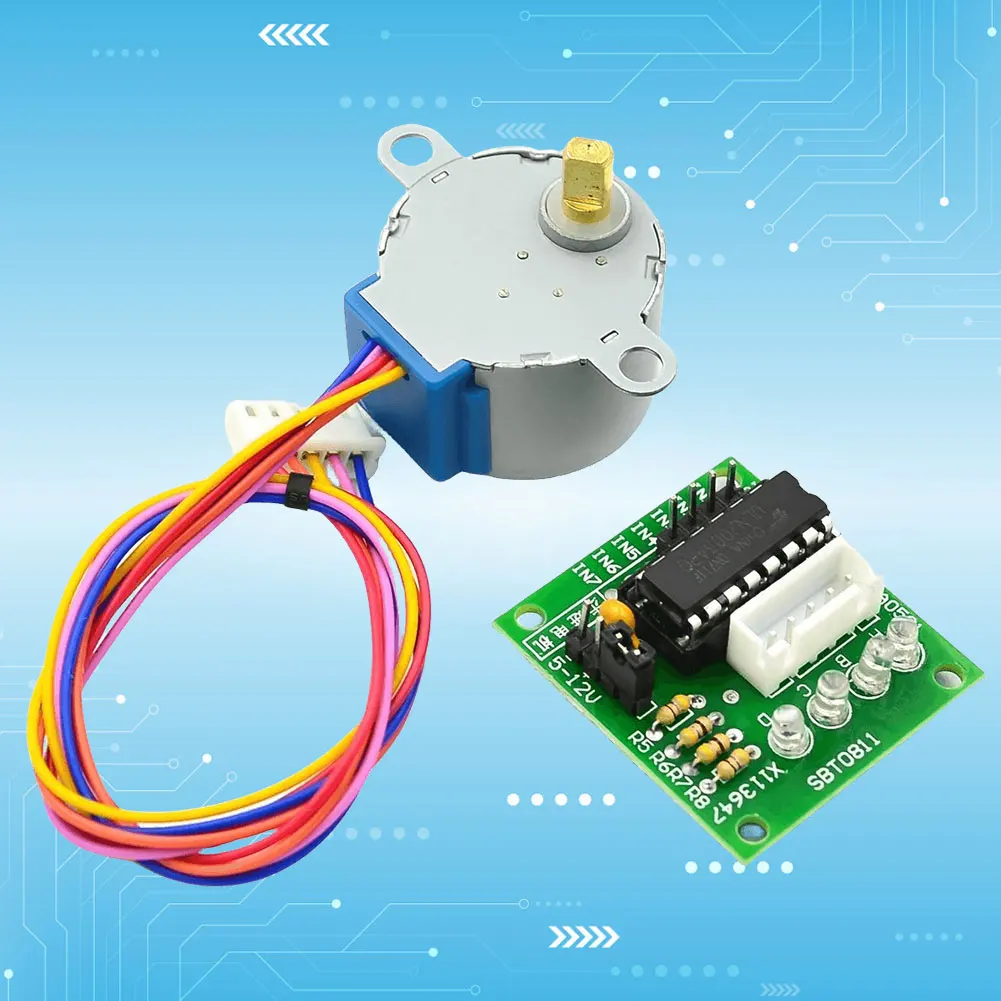

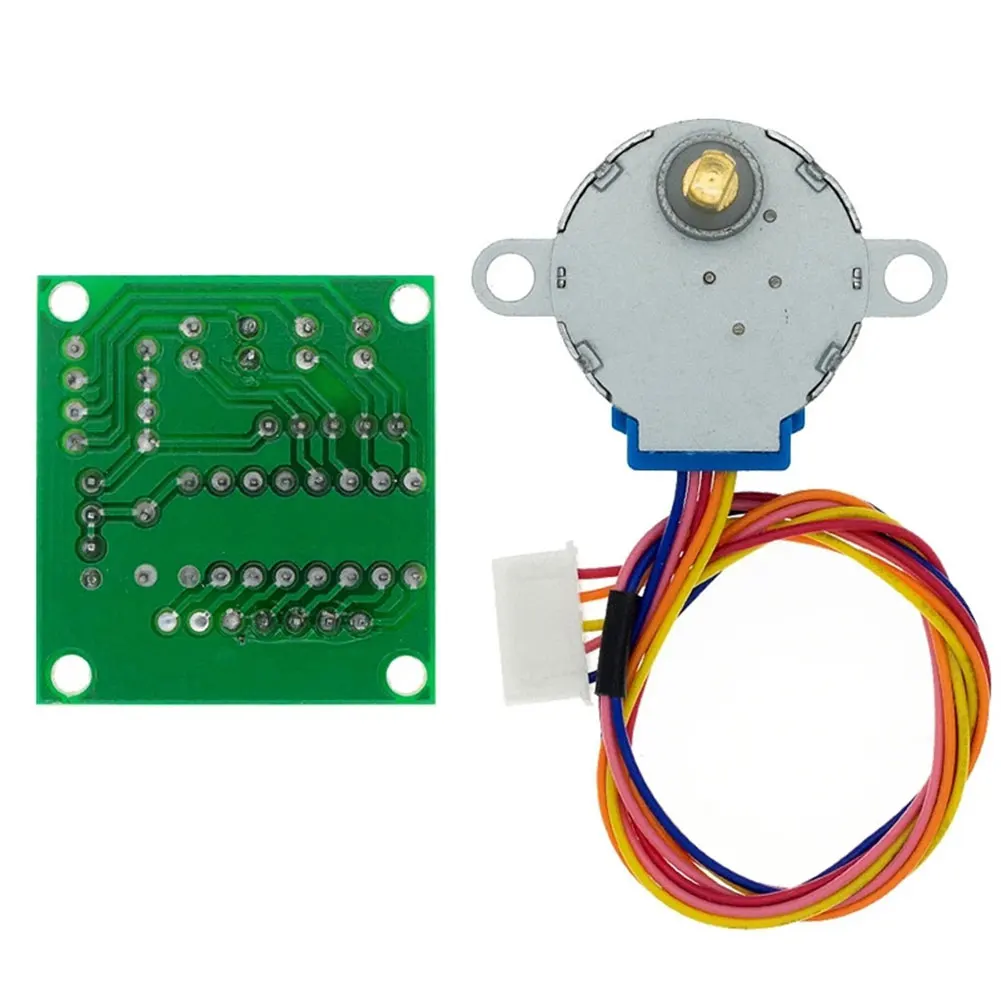

5V 4-Phase Driver Controller Board Multi-Channel Output 28BYJ-48 ULN2003 Stepper Motor Development Board for Arduino

5V 4-Phase Driver Controller Board Multi-Channel Output 28BYJ-48 ULN2003 Stepper Motor Development Board Electronic Components
Features:
1.Wide Compatibility: The 5V stepper motor is a common specification, making it highly compatible with the ULN2003 driver board. Whether used in DIY projects or industrial applications, this combination offers broad compatibility and versatility.
2.Easy to Use: The ULN2003 4-phase driver board features clear pin labeling and interface layout, ensuring ease of use and connectivity. It requires no complex external components or circuits; simply connect the appropriate power source and control signals to drive the load.
3.Low Voltage Operation: The DC 5V stepper motor can operate at lower voltages, providing convenience in power supply. Compared to other high-voltage stepper motors, the 5V variant has lower power requirements, making it more suitable for small electronic devices.
4.High Current Output Capability: The built-in ULN2003 chip in the 4-phase driver board offers a maximum output current of up to 500mA per channel. This capability enables it to drive higher current loads such as relays, stepper motors, and more.
5.Multiple Output Channels: The ULN2003 driver controller board typically features 7 output channels, corresponding to the 7 output pins of the ULN2003 chip. This allows users to control multiple loads simultaneously, providing greater flexibility and expandability.

Specification:
Origin: Mainland China
Condition: New

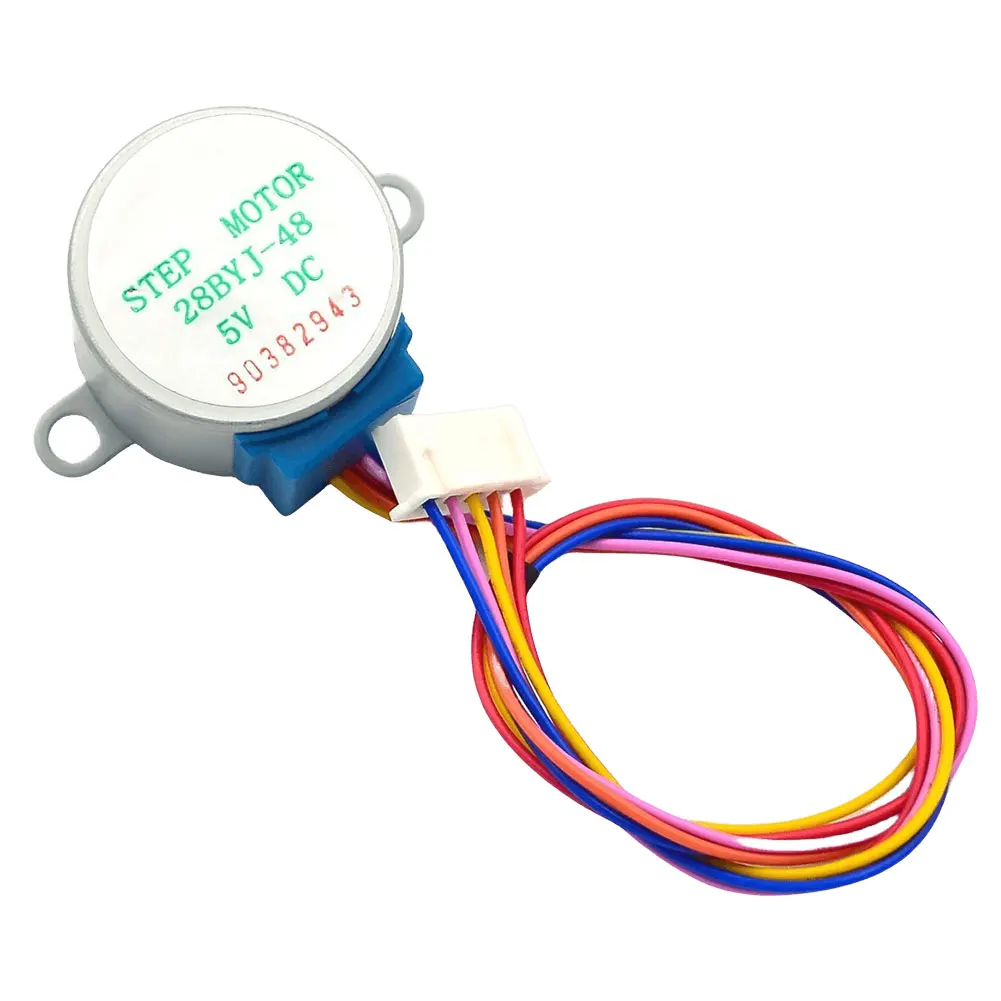

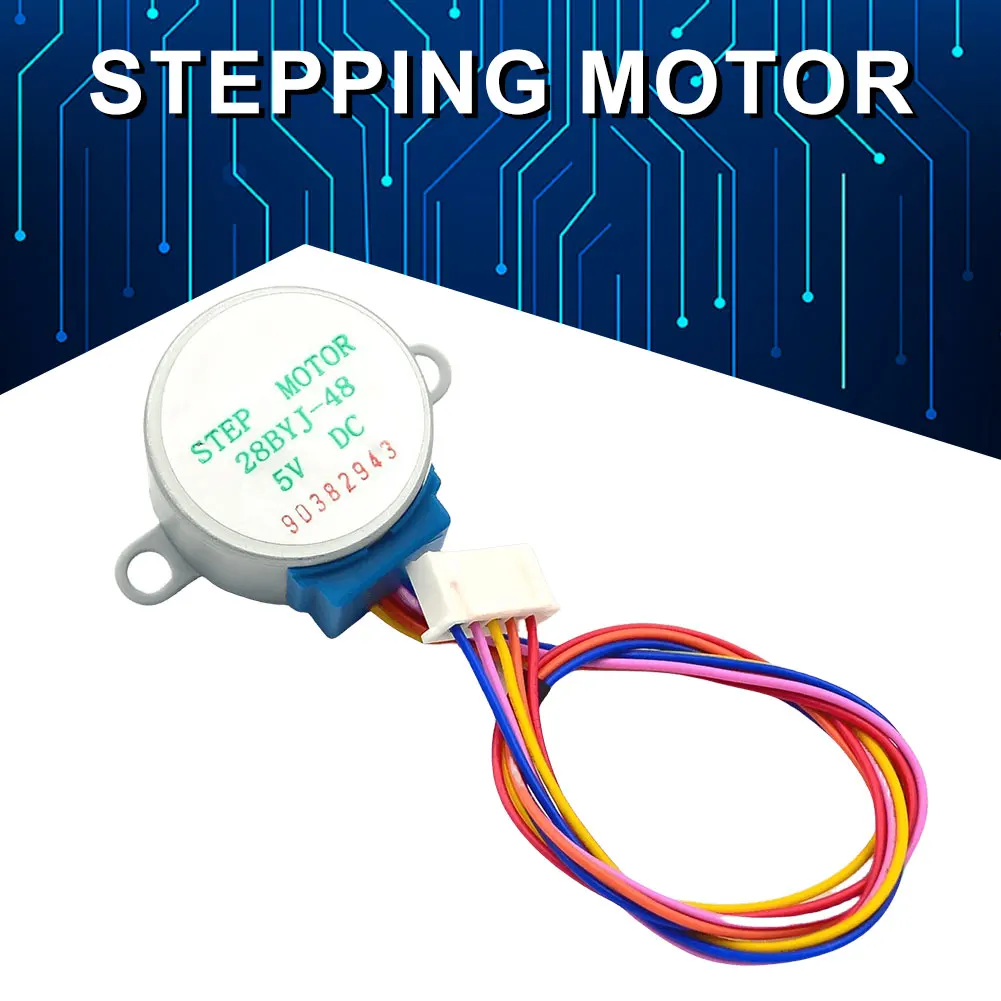

1.Stepping Motor
Constant Voltage: DC5V
Four-Phase Reduction Ratio: 1/64
Step Torque Angle: 5.625.64
Dc Resistance: 200±7%(25)
Insulation Resistance: >10m(500v)
Dielectric Strength: 600VAC/1ma/1s

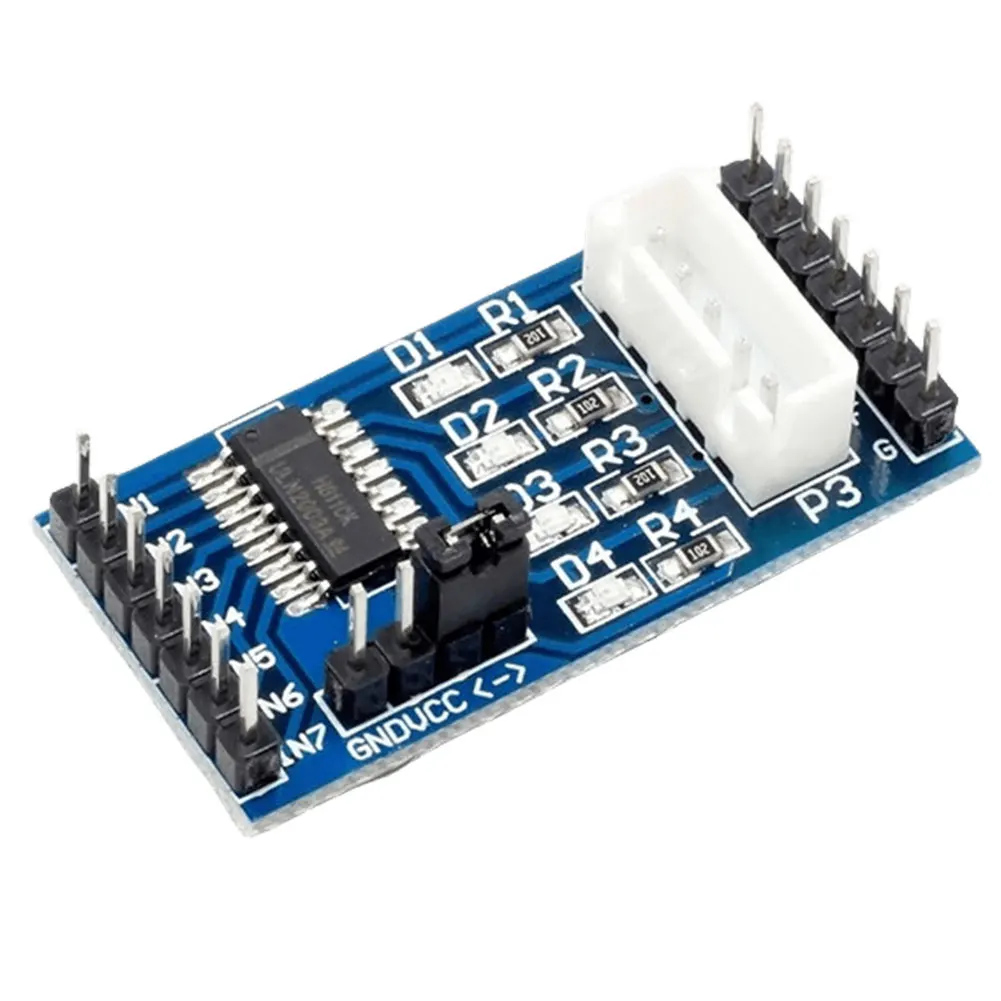

2.ULN2003 Driver Board
Input Voltage: 5v-12v
Maximum Output Current: 500mA
Input Interface: Ttl Logic Level Input Signal
Output Channels: 7 Output Channels
External Power Supply Interface: With External Power Supply Interface
Product Size:

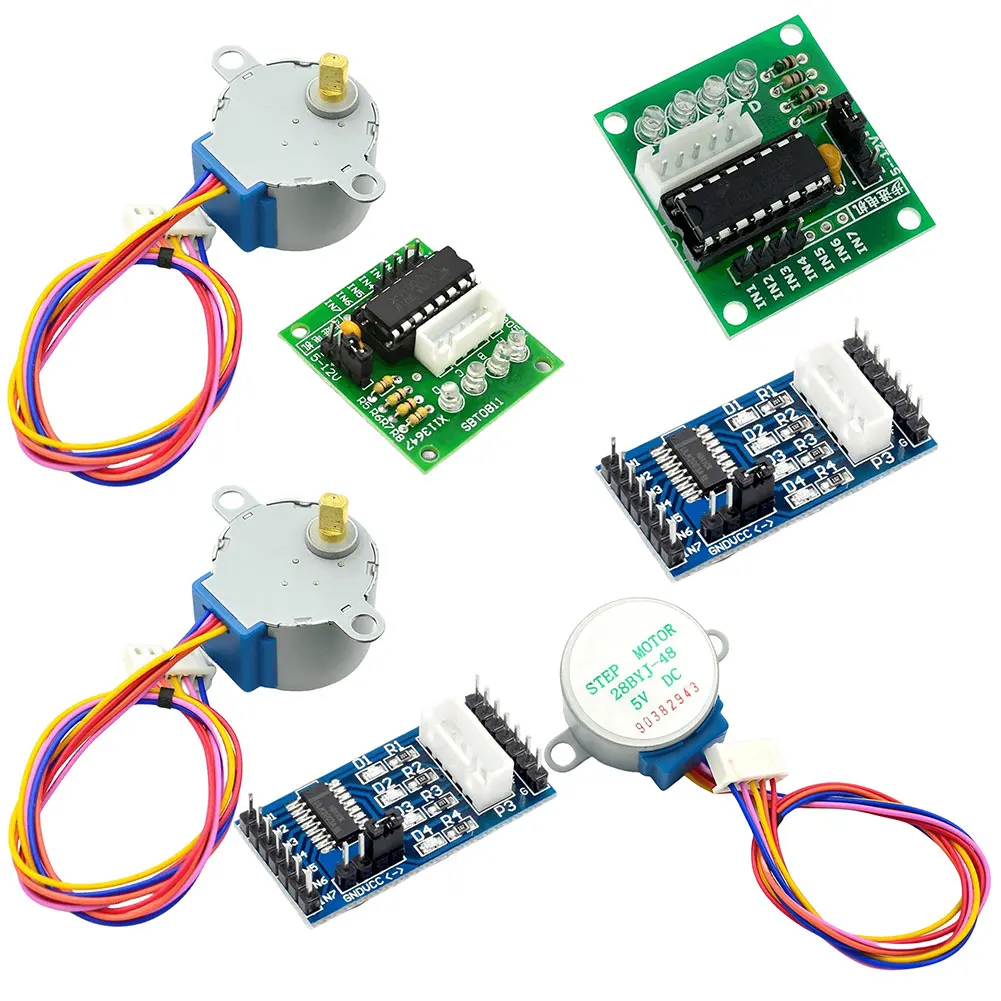

Green Board: 36*32*12mm/1.4*1.25*0.47in
Blue Board: 41*21*12mm/1.6*0.82*0.47in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
