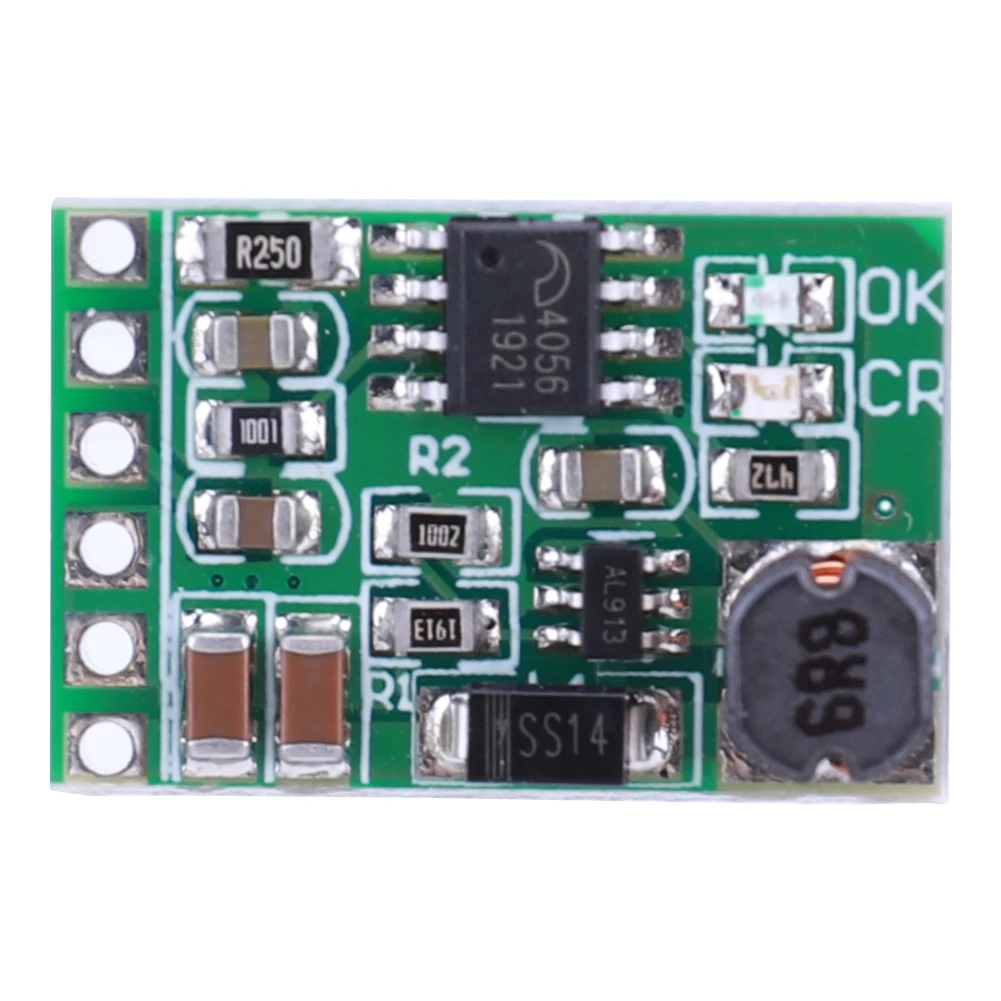

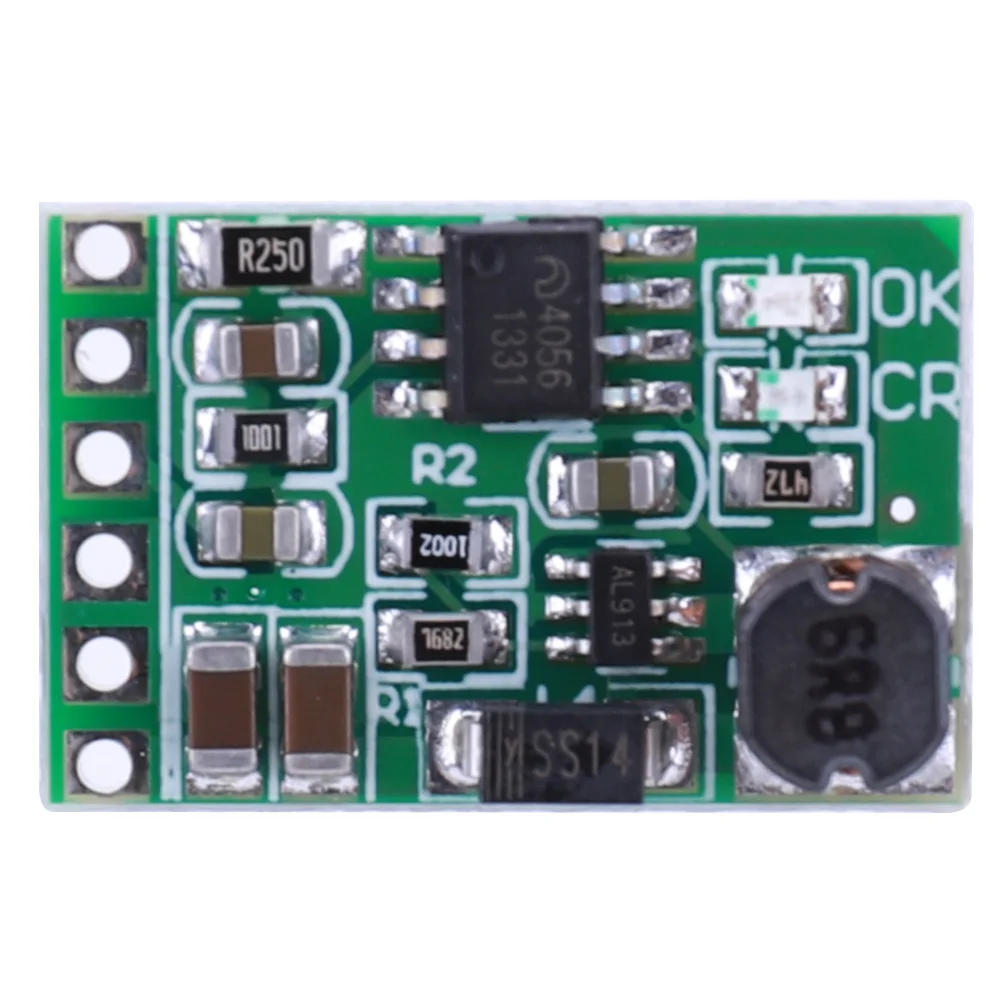

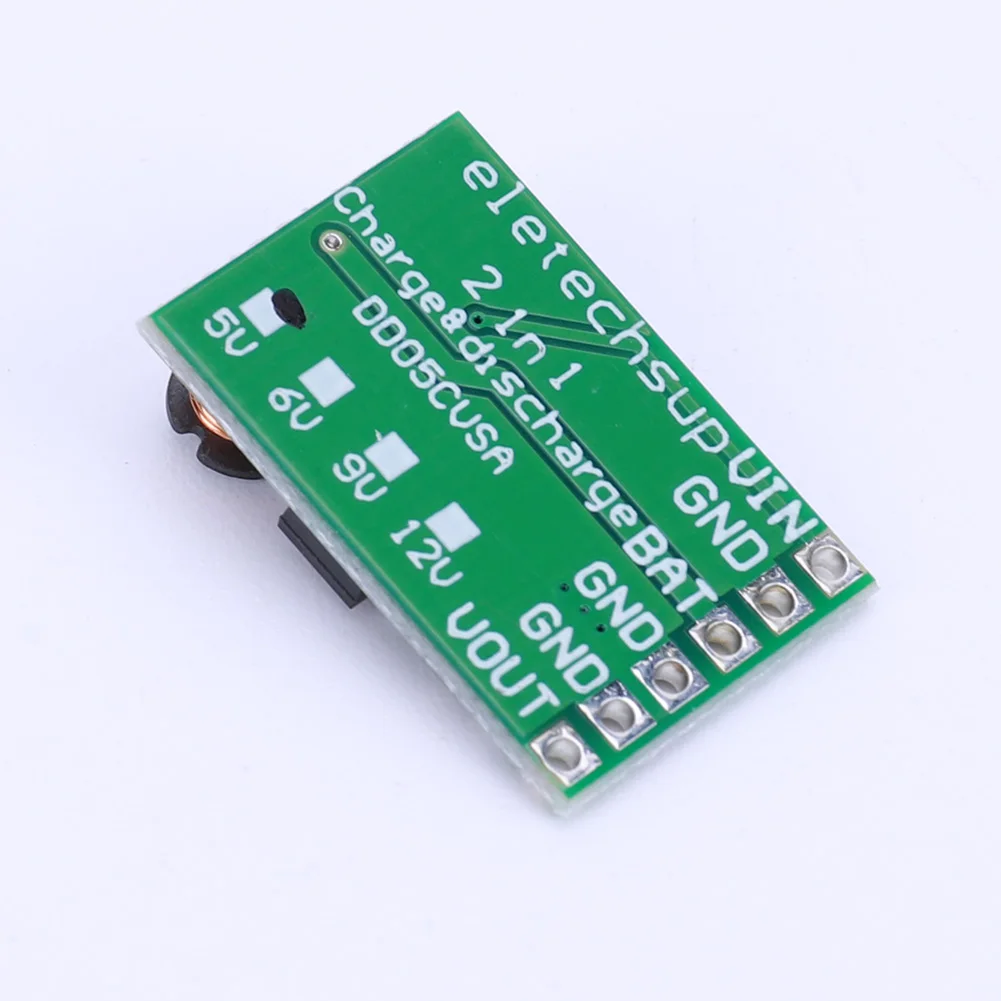

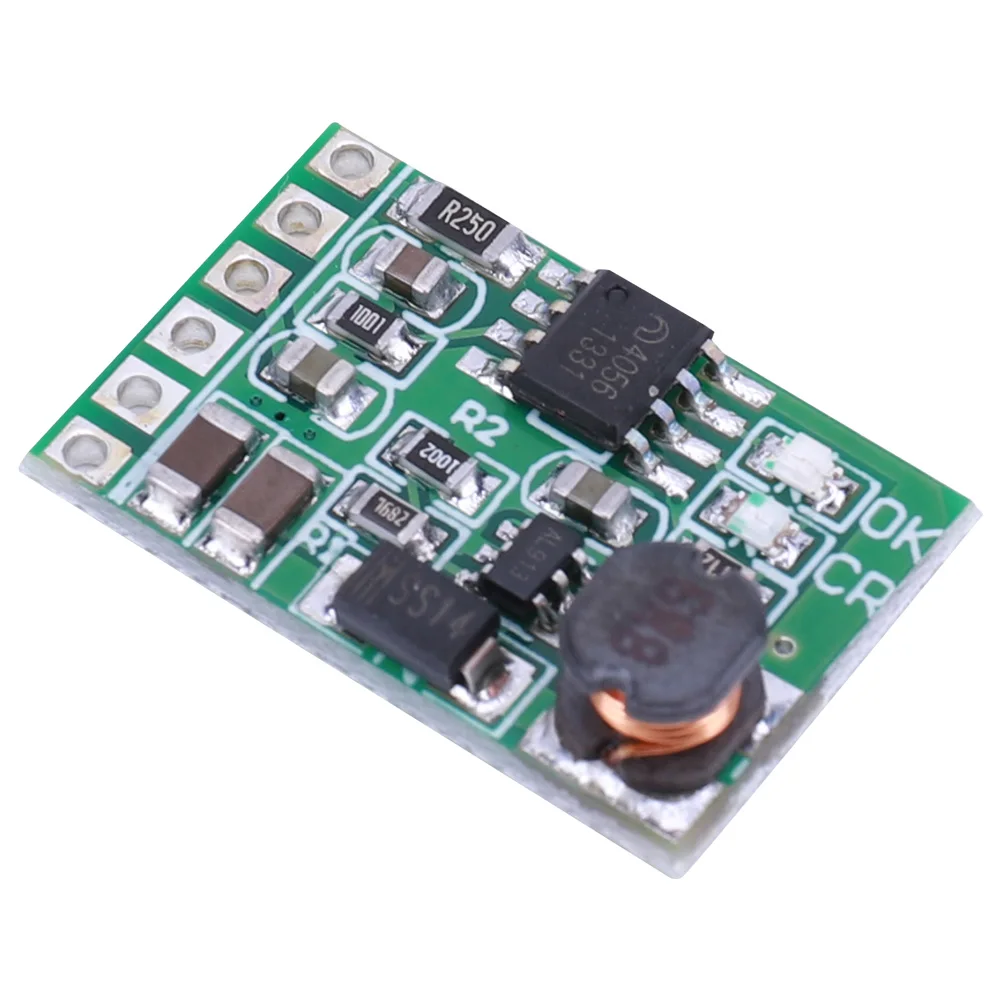

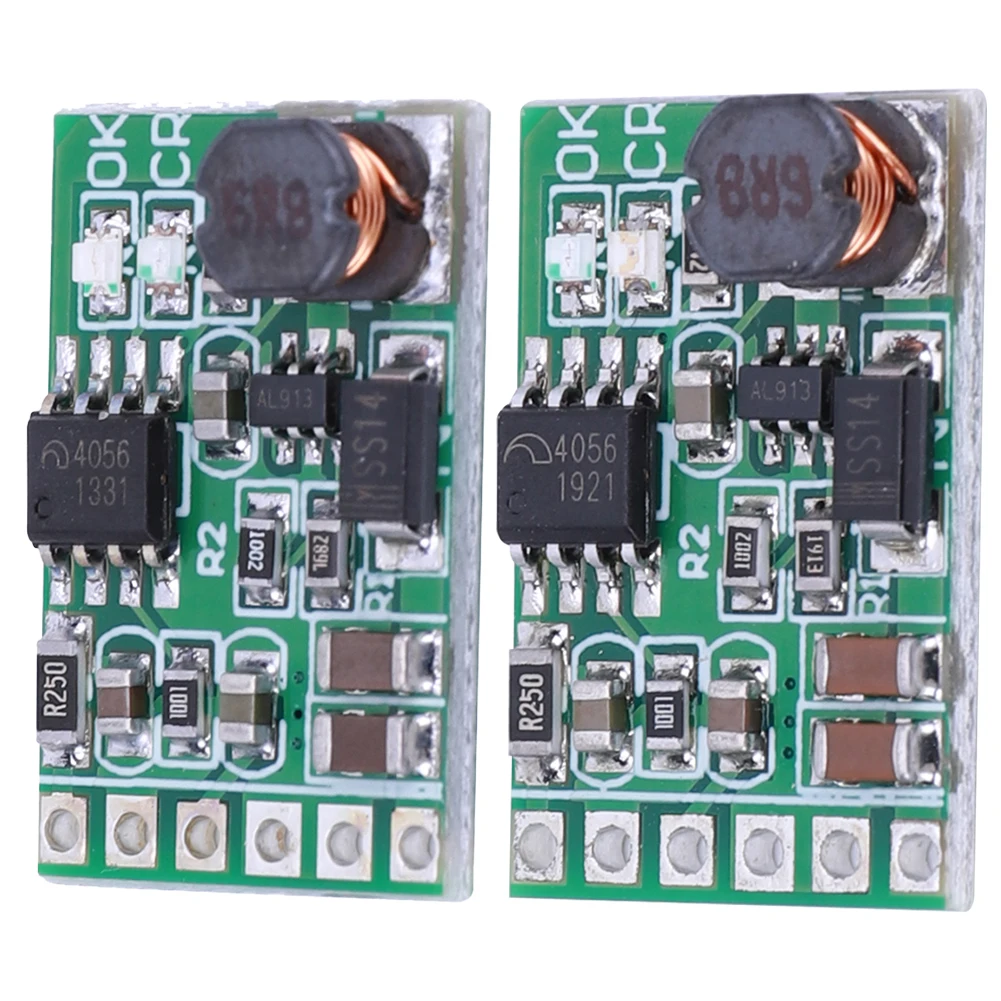

5V/12V Discharger Board Boost-out DC-DC Converter Step Up Module Lithium Battery Charger for DIYUPS Mobile Power 18650 Lithium

5V 12V Lithium Battery Charger Boost-out DC-DC Converter Step Up Module Charger Discharger for DIYUPS Mobile Power 18650 Lithium

Feature:

1.Versatility and Flexibility: The discharger board is highly versatile, making it suitable for a wide range of applications such as experiments, electronic design, and DIY projects. Its flexibility allows users to tailor its functionality to meet their specific needs and requirements.
2.Compact and Space-saving Design: The DC DC converter boost module features a compact size of 0.91×0.59×0.24 inches, enabling easy integration into space-constrained designs and projects. Its small form factor makes it ideal for applications where size and space-saving are crucial.
3.Efficient Power Conversion: The DC DC converter step-up module excels in efficiently converting power, although it lacks over-discharge protection for lithium batteries. With its effective step-up conversion capabilities, it ensures reliable voltage amplification for a variety of applications, maximizing power efficiency.
4.Durability and Reliability: The solar mobile power charger is designed to withstand extreme temperatures, with a storage temperature range of -65°C to +125°C. This robust temperature tolerance ensures its durability and reliability, making it suitable for outdoor and harsh environments.
5.Flexible Charging Options: The charger discharger supports a wide range of charging voltages, operating at DC 4.5V-8V (recommended DC 5V). This flexibility allows users to choose the most suitable charging voltage for their specific devices, providing convenience and compatibility.

Specification:
Origin: Mainland China
Product Description:
Charging voltage: DC 4.5V-8V (DC 5V recommended)
Charging current: 0-1A
Full charging voltage: 4.2V + -2%
LED indicator light: “OK” LED full charge or battery failure status indicator light;
“CR” LED indicator is the charging status indicator
(Boost) discharge current: 0-2A;
(Boost type) Discharge quiescent current: 450uA
() Discharge conversion efficiency: 78%-90%
(Boost) output current: 0-1.2A (5V), 0-0.5A0-0.5A (12V);
Working environment temperature: -40° to +85°
Storage temperature -65° to +125°
Size: 23x15x6mm/0.91×0.59×0.24inch

Application:
Battery powered devices
Lithium battery 18650 14500
Mobile phone diy
UPS power equipment DIY
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable device
Bluetooth-compatible application

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
