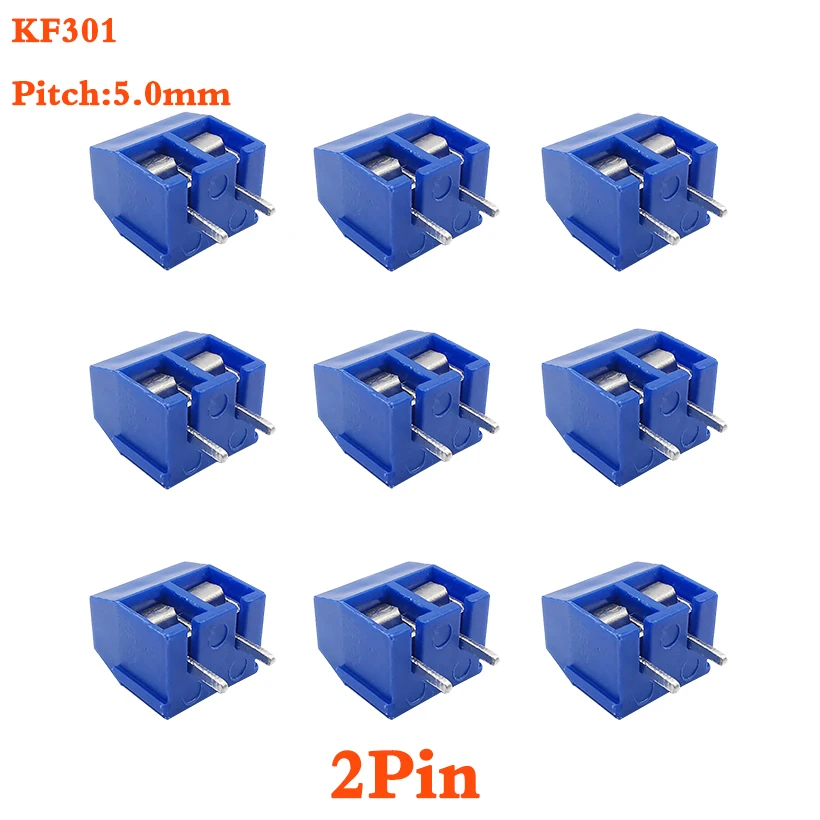

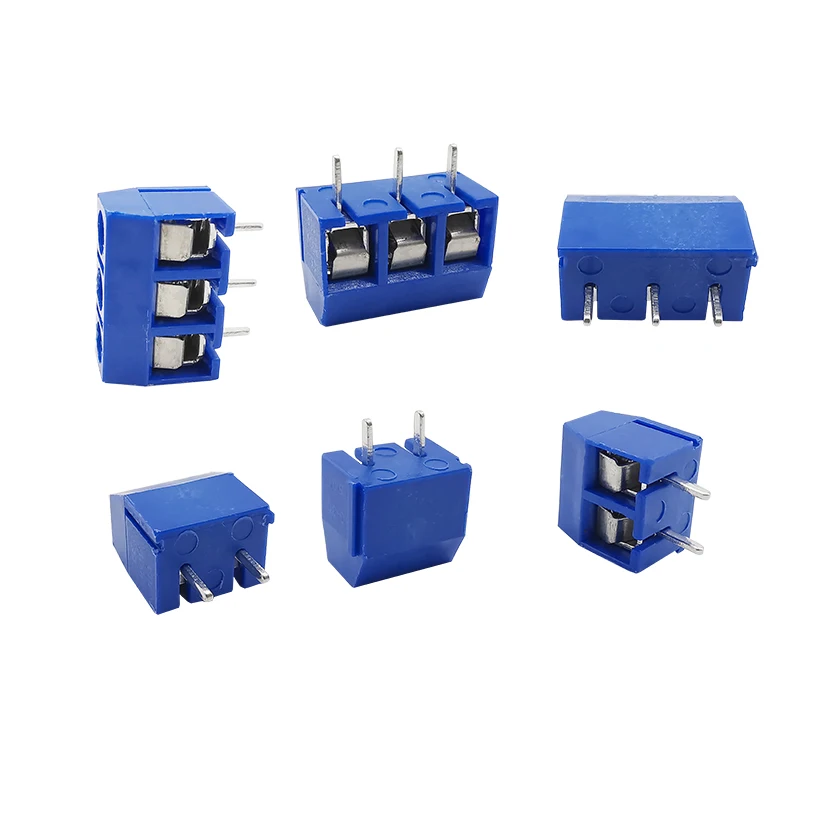

5.0mm Pitch KF301 2P 3P 4P 5mm Screw Wire Terminal Block KF301-2P KF301-3/4PStraight Pin Spliceable Plug-in PCB Cable Connector
Payment Methods:
Description
- Model Number: KF301 2P 3P 3P Screw Terminal Block Connector
- Origin: Mainland China
- Certification: none
- Material: Plastic
- Poles: 2P 3P 4P
- Pitch: 5.0mm
- Pin header: Copper,Tin plated
- Rated current: 16A
- Screws: M2.5 steel Zinc plated
- Rated voltage: 300V
- Insulation resistance: 5000MΩ/1000V
- Housing: PBT,UL94V-0
- Contact resistance: 20mΩ
- Torque: 0.5Nm(3.6lb.in)
- Temp.Range: -30Celsius to+120Celsius
- Strip length: 4.5-5mm
- MAX Soldering: +250Celsius for 5 Sec
- Withstanding Voltage: AC1500V/1Min
- Feature1: F301 2PIN 3PIN 4PIN PCB Connector
- Feature2: Plug-in Screw Terminal Block
- Feature3: 2 Pin 3 Pin 4Pin Spliceable PCB Terminal Block
- Feature4: PCB Screw Terminal Block Connector
Product Features:
Material: Plastic
Pitch: 5.0mm
Poles: 2P 3P 4P
Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Copper,Tin plated
Housing: PBT,UL94V-0
Electrical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 22-14AWG/2.5mm⊃2;
Mechanical
Temp.Range: -30°C~+120°C
MAX Soldering: +250°C for 5 Sec.
Torque: 0.5Nm(3.6lb.in)
Strip length: 4.5-5mm
