- Model Number: HC-056K.5.16B
- Protection Level: IP55
- Max. Current: 1A
- Max. Voltage: 250V
- LED: NO
- Switch Combination: 1NC
- Rated current: 0.5A/1A
- Rated voltage: 125VAC/250VAC
- contact resistance: ≤50MΩ
- insulation resistance: 100MΩ
- Product name: Pushbutton Switch
- Operation type: Automatic reset
- Material: PC Plastic

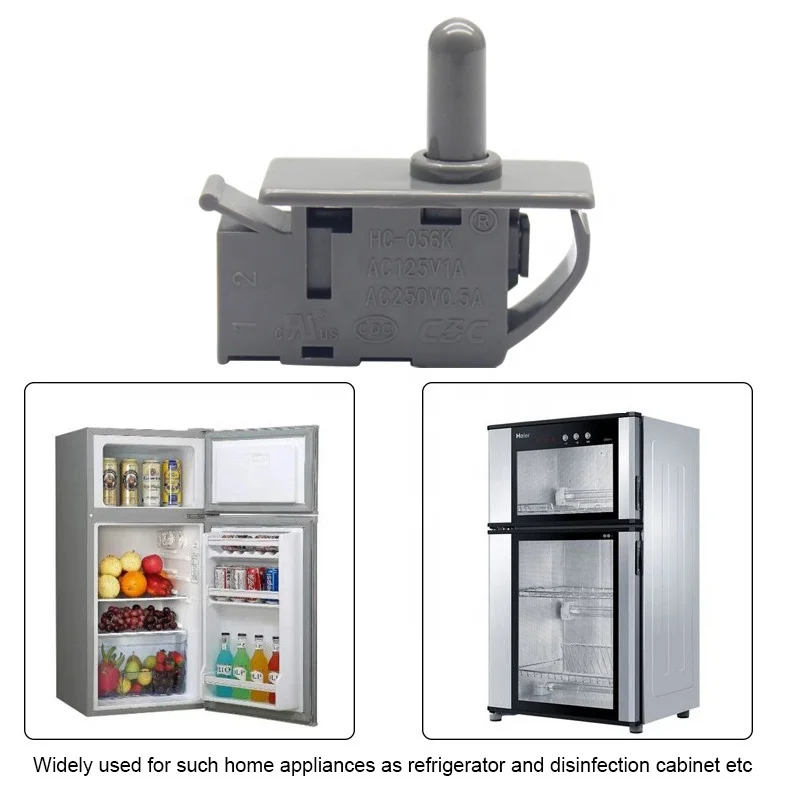

- Application: Home Appliance

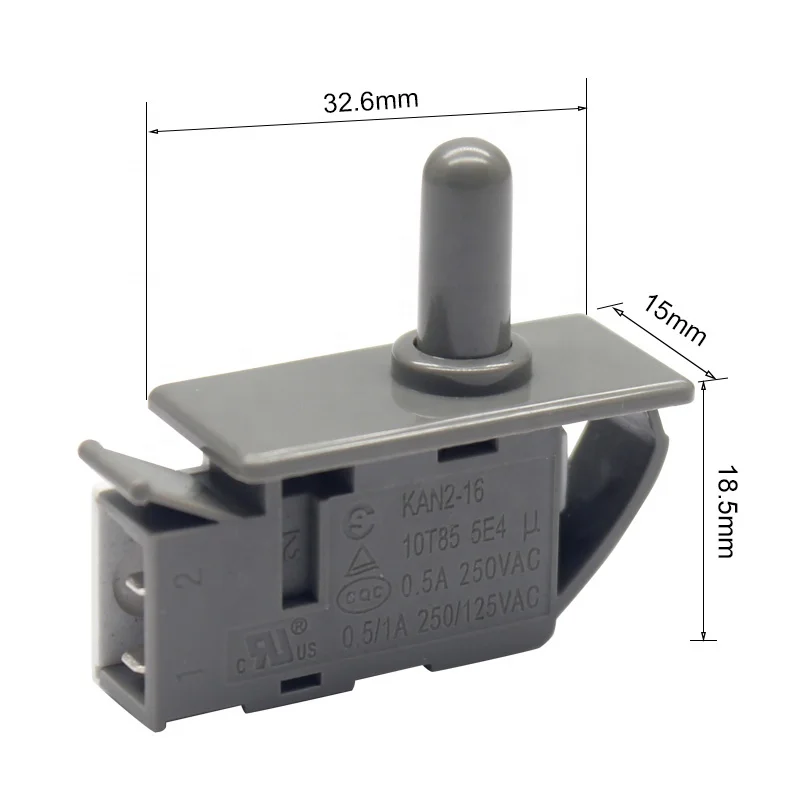

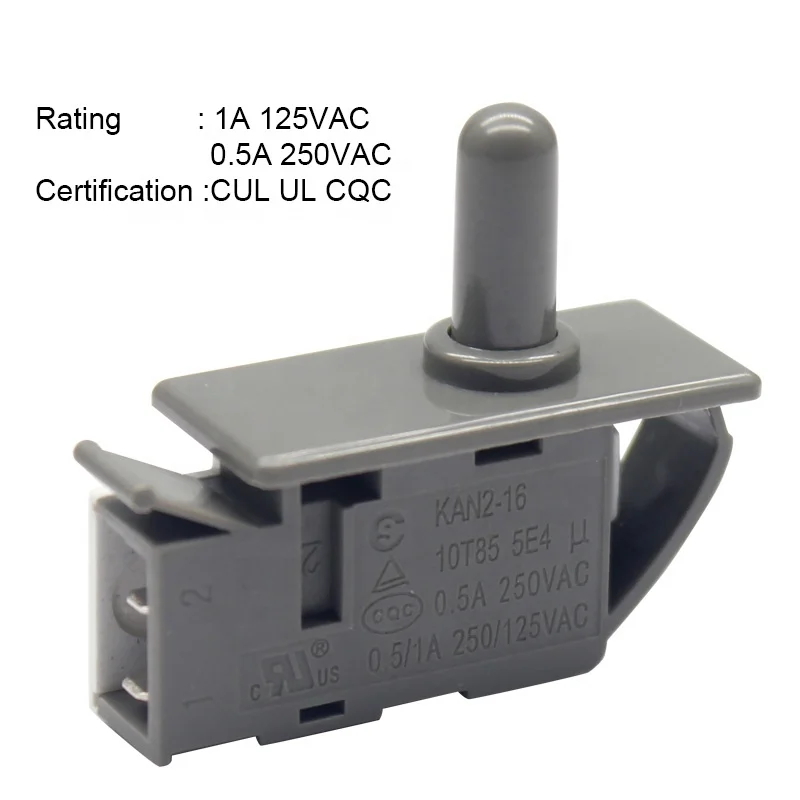

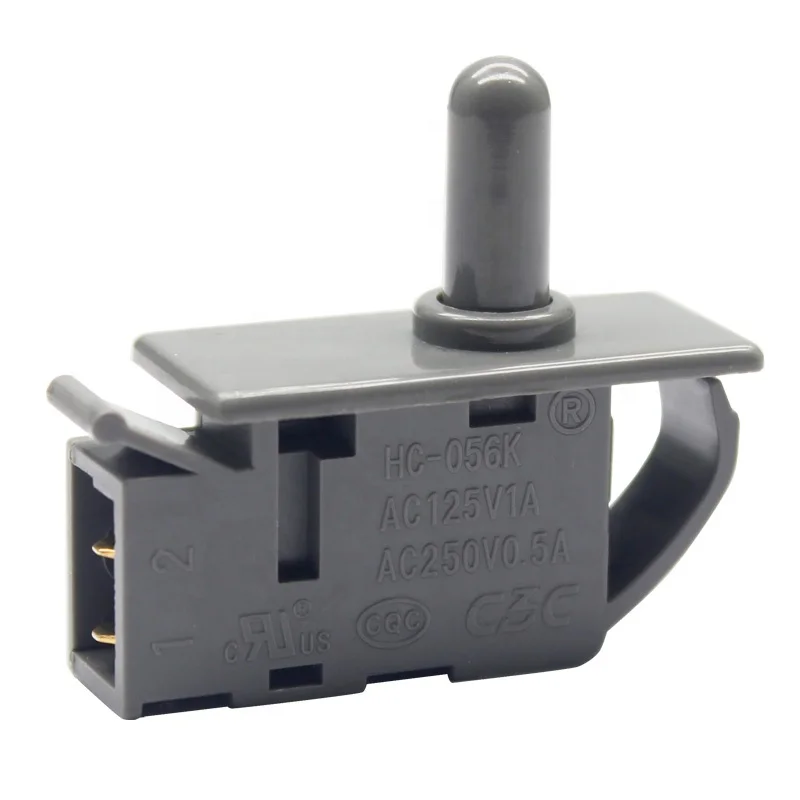

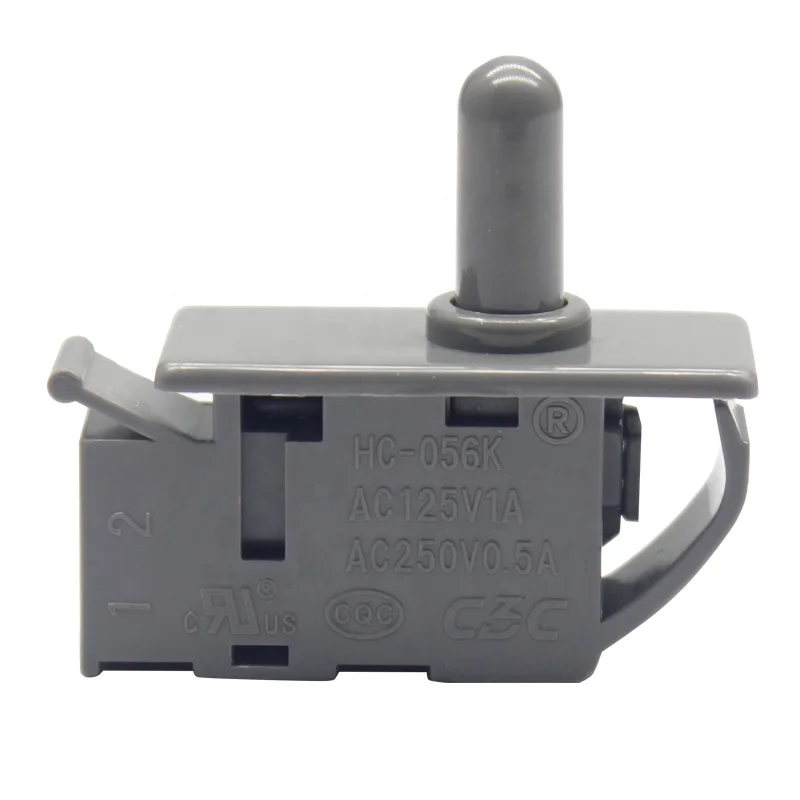

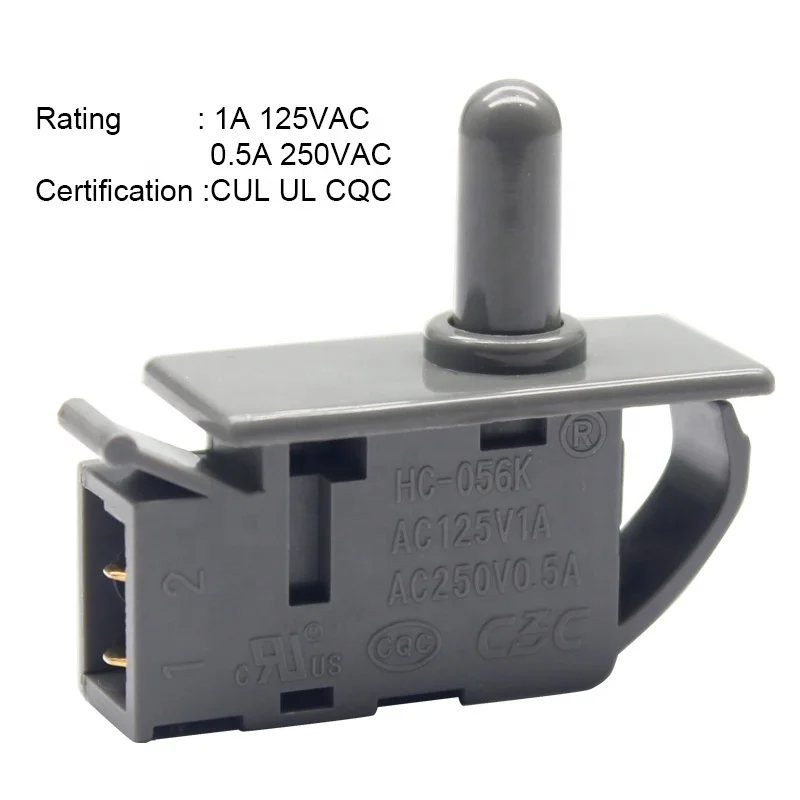

LG refrigerator spare parts door light control normally closing push button switch.
|
Rating
|
0.5A250V～ 1A125V～
|
|
Stroke
|
2～4mm
|
|
Operation force
|
＜450g
|
|
Contact resistance
|
≤50mΩ
|
|
Insulated resistance
|
e≥100MΩ,applying DC500V/1min.
|
|
Certification marks
|
UL CQC
|
Product Description
