- Output Interface: 5.5mm*2.5mm
- is_customized: Yes
- Connection: Plug In
- Usage: Switching
- Output Type: DC

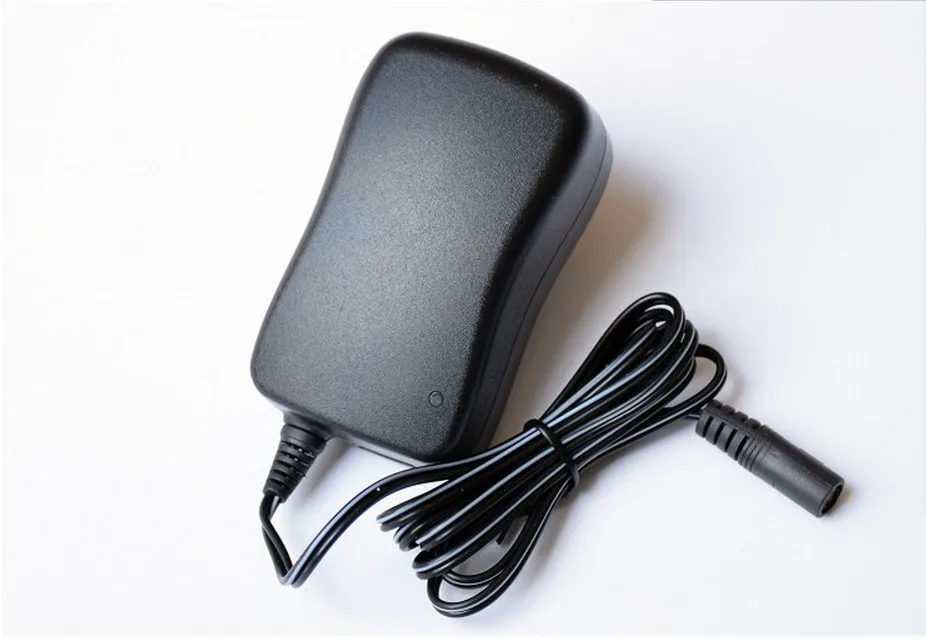

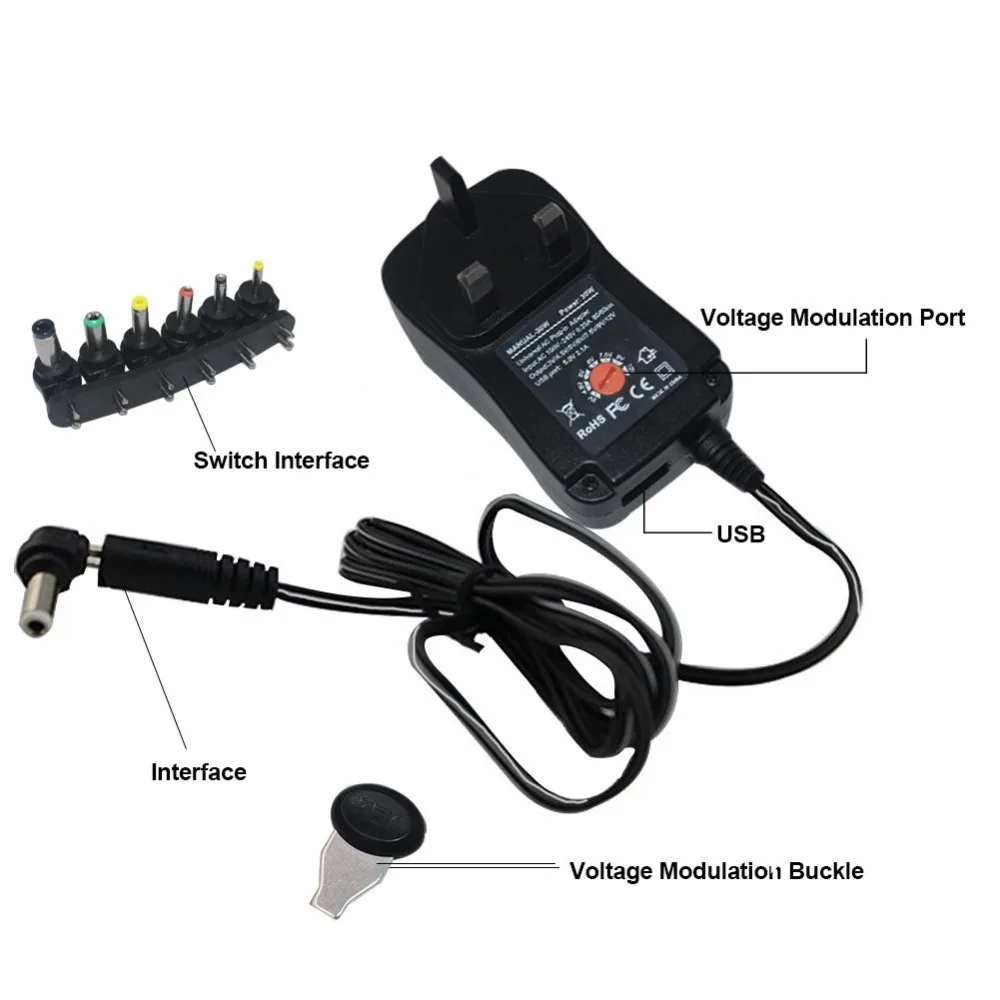

30W Multi Voltage Power Adapter 3v 4.5v 5v 6v 7.5v 9v 12v Power Supply with 6 DC Tips for Tablet PC Mobile Phone with extra USB Port
Product Description:
Input:100-240VAC 50-60Hz
Output Voltage: 3V 4.5V 5V 6V 7.5V 9V 12V

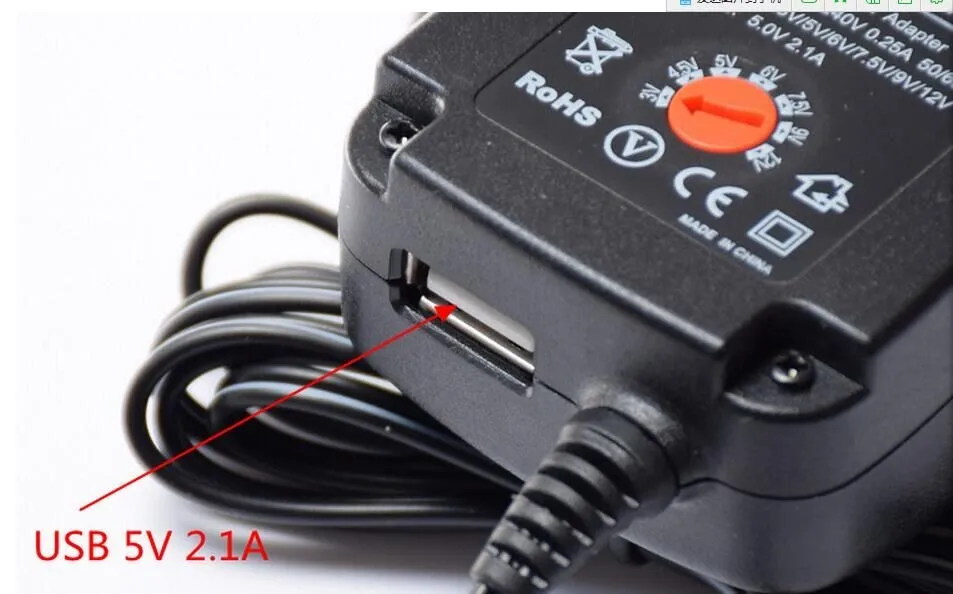

Extra USB output: 5V 2.1A

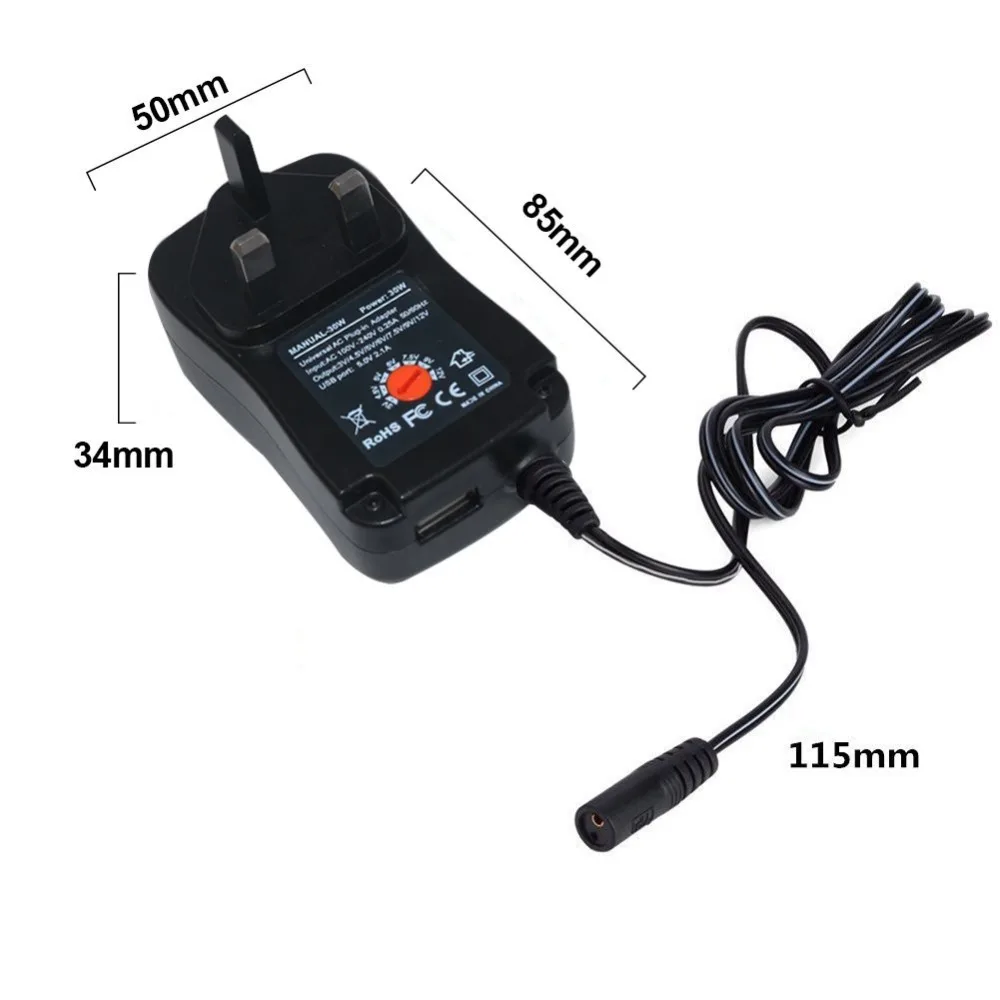

Length of the cable about: 115 cm
Output current max values:
3/4.5/5v DC – 600ma
6v DC- 500ma
7.5v DC – 480ma
9v DC – 400ma
12v DC – 300ma
1.15m Cable length approx
Plug: UK plug
Thermal fuse protection.
An LED indicator shows when the unit is powered.
6 Connection Tips Spec.
2.5*0.7mm, 3.0*1.1mm, 3.5*1.35mm, 4.0*1.7mm, 5.0*2.1mm, 5.5*2.5mm
Features:
Our Adapter is designed for use with most low power electronic products such as CD Players, PDA, Radios, MP3 Players, Calculators, hand held games, toys and other devices requiring a DC adapter and current load in below 600mA.
Output voltages: 3V, 4.5V, 5V, 6V, 7.5V, 9V and 12V.

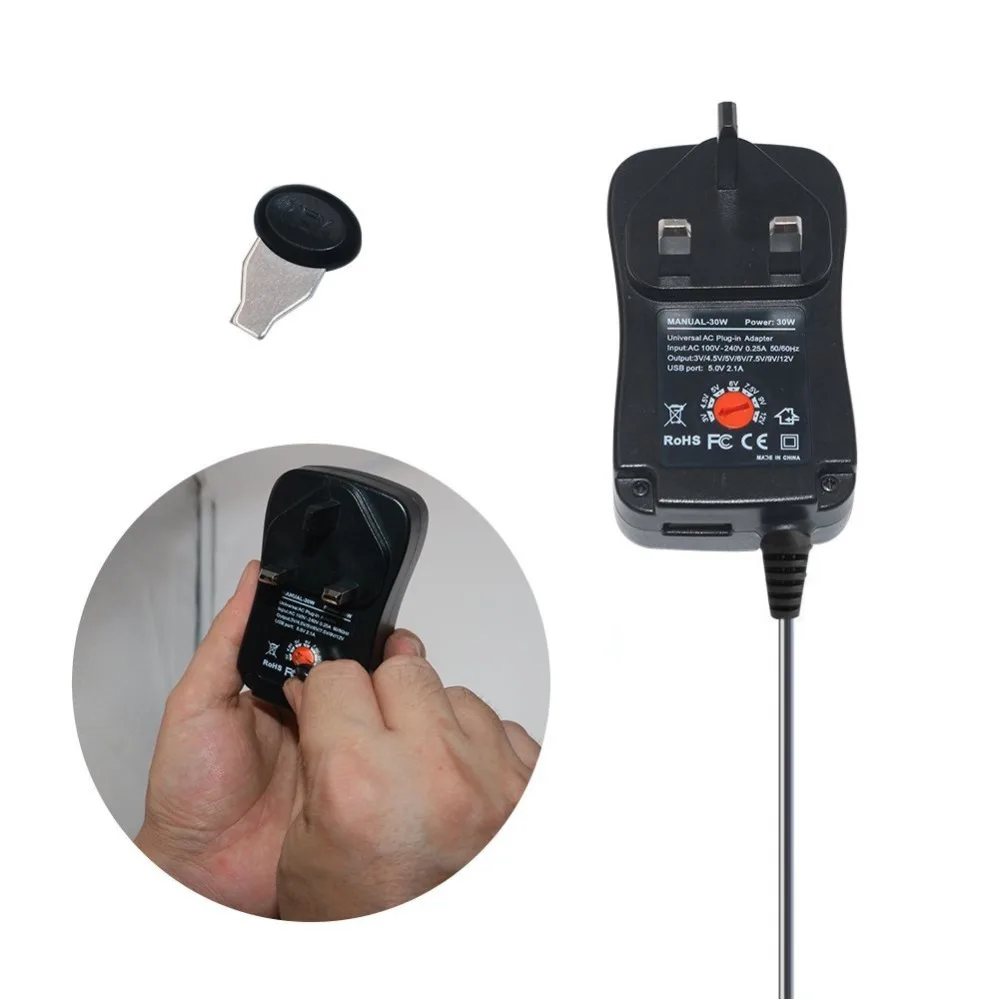

The adapter will power equipment requiring a single DC supply voltage up to a current consumption of 600mA. Please make sure you use the correct DC output setting before turning the power on. The DC output voltages supplied by this adapter are clearly marked by the voltage selector switch. Check the voltage requirements of your equipment/appliance that you require this adapter for, by referring to the manufacturer’s manual/handbook.
