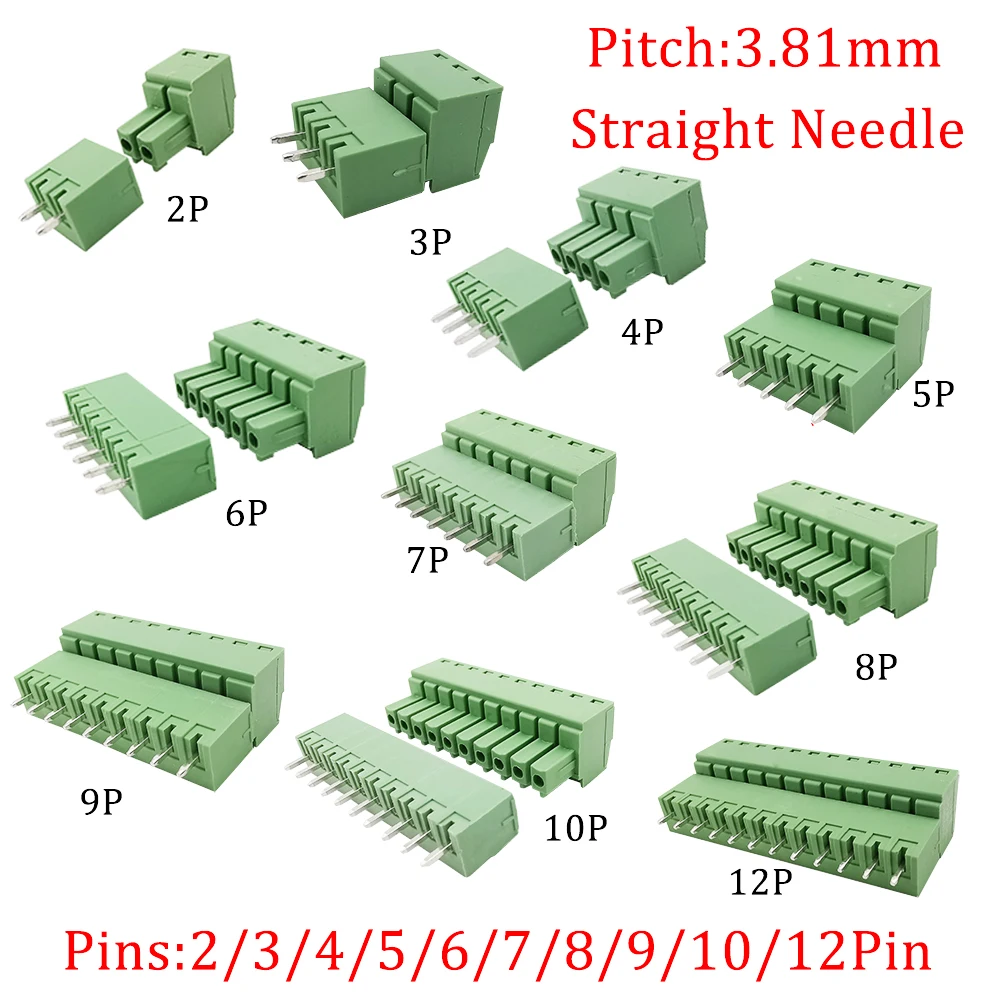

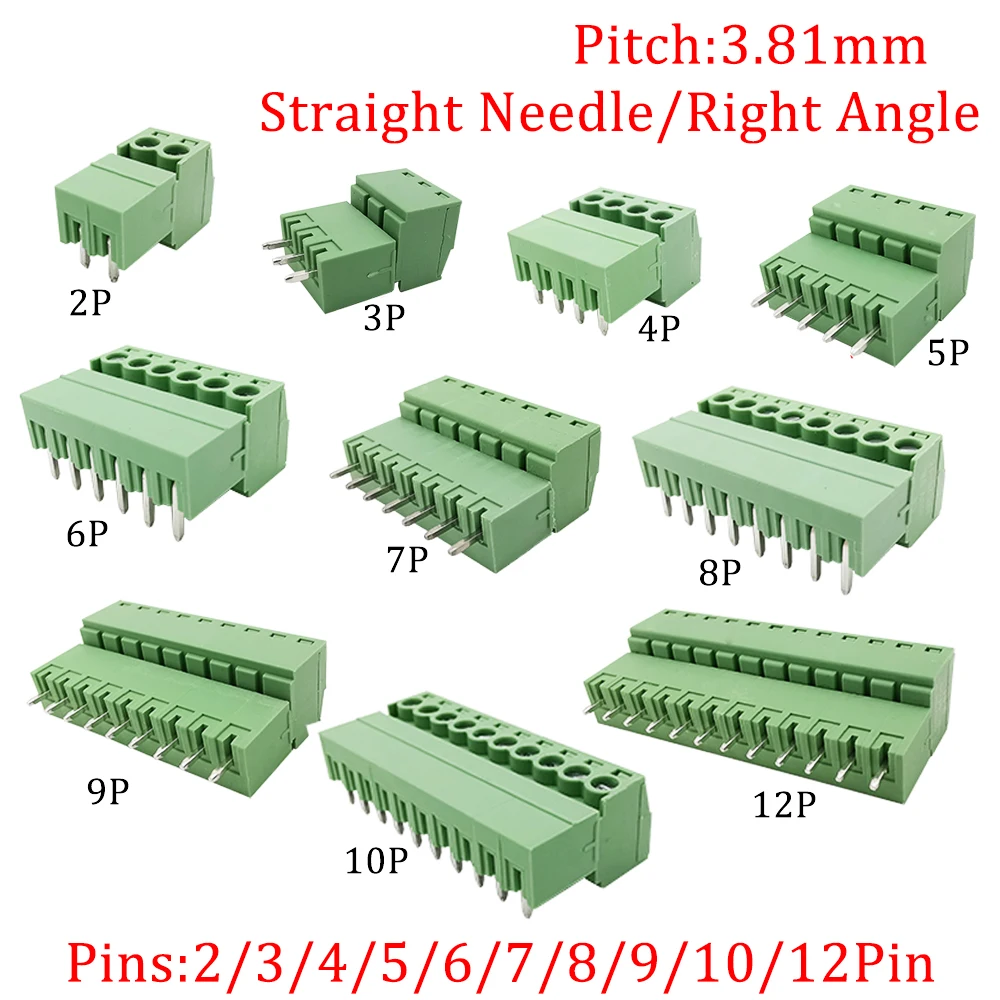

3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket
Payment Methods:
Description
- Model Number: 15EDG 3.81mm KF2EDG PCB Screw Terminal Block
- Origin: Mainland China
- Certification: none

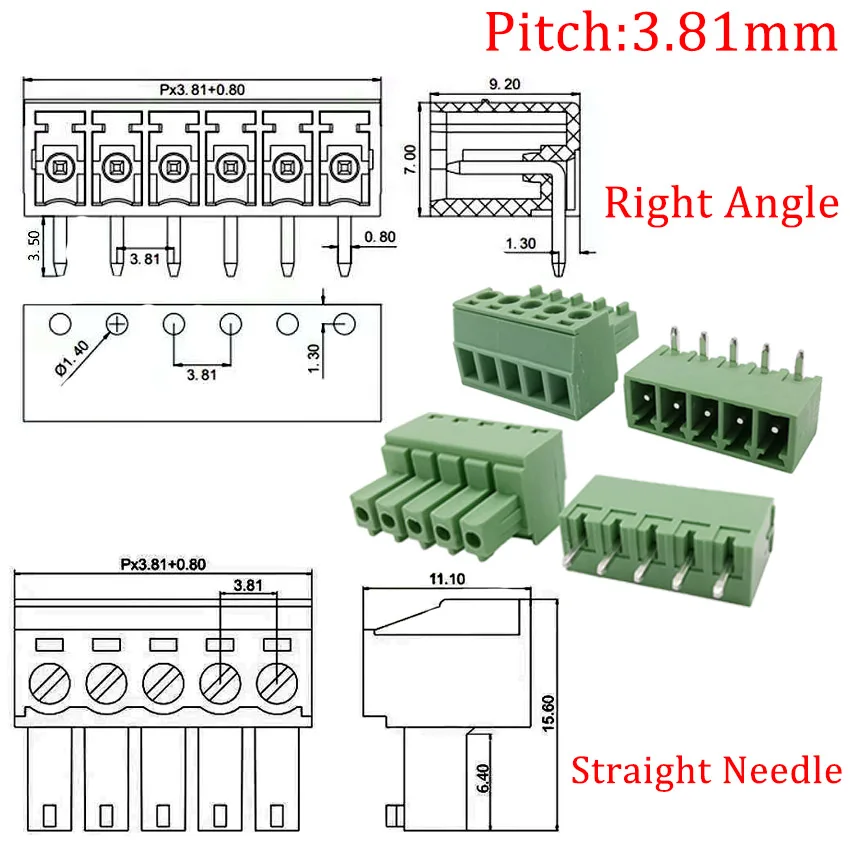

- Pitch: 3.81mm
- Pin: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin
- Screw: M2, Steel. Zinc plated
- Contact: Phosphor bronze Ni plated
- Wire cage: Brass, Ni plated
- Housing: PA66 UL94V-0
- Rated voltage: 125V
- Rated current: 8A
- Wire range: 28-16A WG
- Temperature range: -40C-+105C
- Torque: 0.2 Nm
- Strip length: 7mm

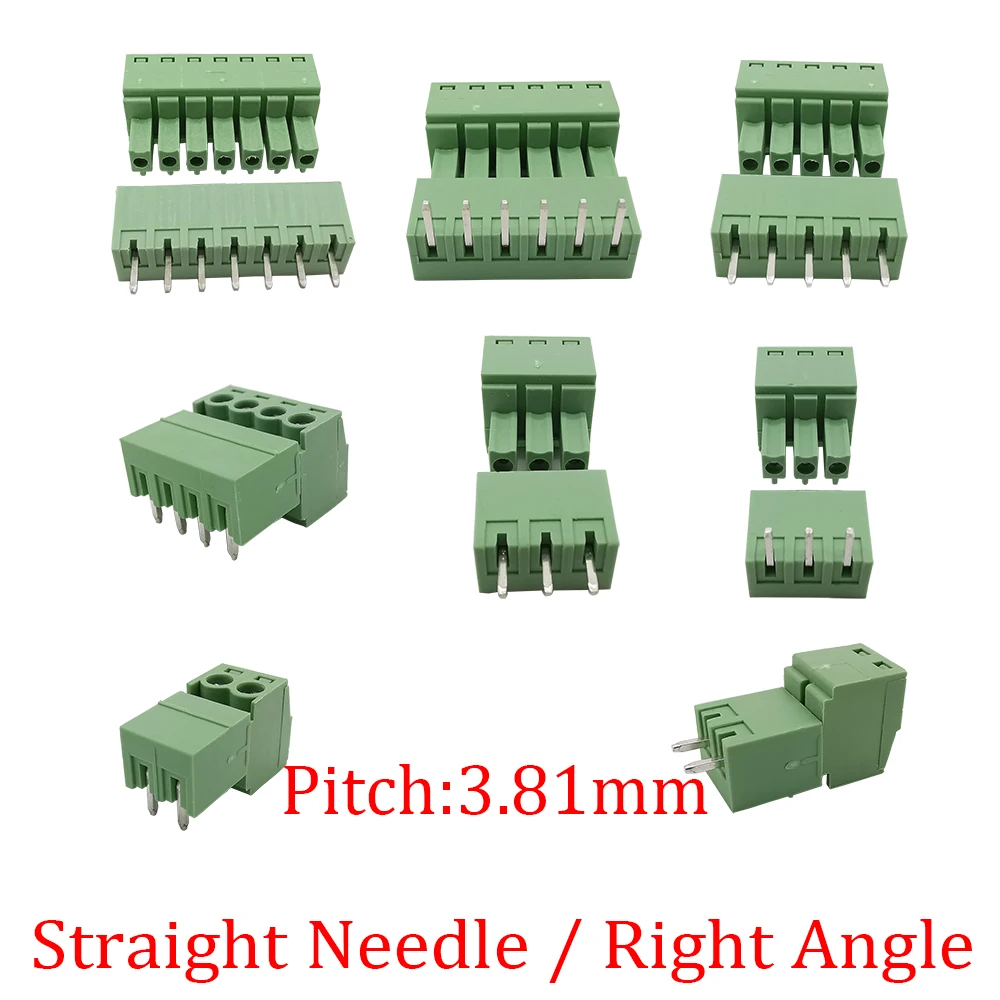

- Style: Straight Needle/Right Angle Header Socket
- Type: Splice
- Feature: 15EDGK 3.81mm Straight Needle PCB Screw Terminal
- Feature 1: KF2EDG 3.81mm Right Angle Header Socket
- Feature 2: PCB Screw Terminal Curved needle seat
- Feature 3: Plug in PCB terminal Block
Features:
Name:KF2EDG 3.81mm 2-12 PIN PCB Screw Terminal
Pitch: 3.81mm
Style:Straight Needle/Right Angle Header Socket
Pin: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin
Screw: M2, Steel. Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass, Ni plated
Housing: PA66 UL94V-0
Rated voltage: 125V
Rated current. 8A
Wire range: 28-16AWG
