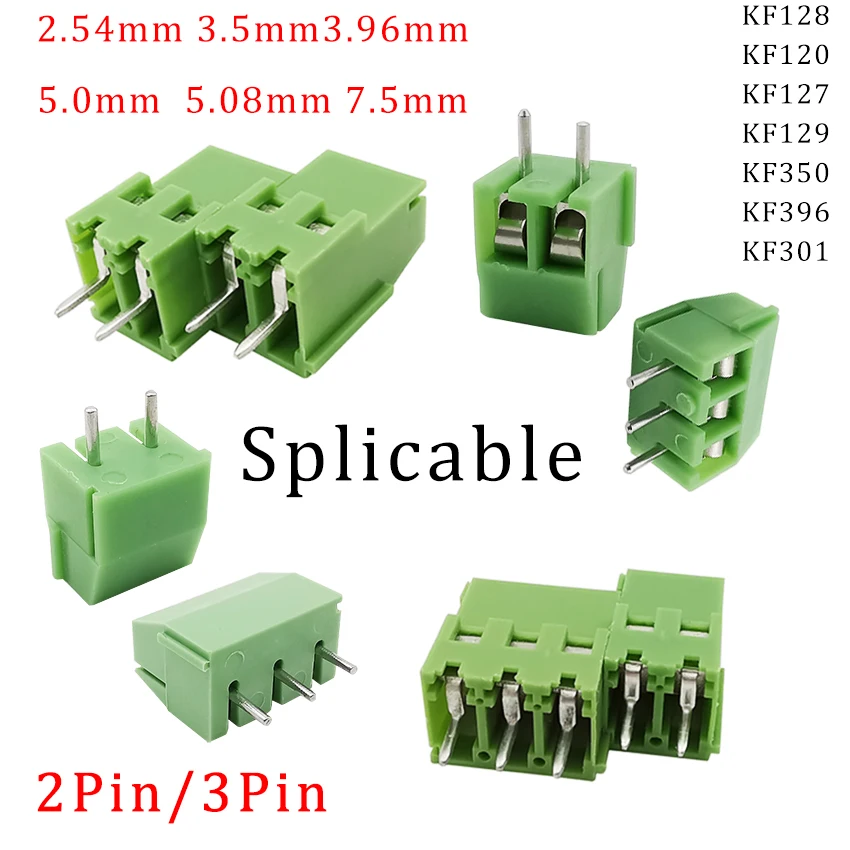

- Model Number: Screw PCB Terminal Block
- Origin: Mainland China
- Certification: none
- Color: Green,Blue
- Type: PCB Terminal Blocks
- Style: Splicable Screw Terminal
- Pin: 2Pin,3Pin,4Pin
- Pitch: 2.54mm,3.5mm,3.96mm,5.0mm,5.08mm,7.5mm
- Type 1: KF127 5.0mm PCB Screw Block
- Type 2: KF129 5.08mm Splice Terminal Block
- Type 3: KF120 2.54mm 2-4Pin PCB Connector
- Type 4: KF128 2.54MM terminal block screw
- Type 5: KF396 3.96MM pcb connector terminals
- Type 6: KF350 3.5MM Splice Terminal wire connector
- Type 7: KF128 7.5mm screw terminal wire connector
- Type 8: KF301 5.0MM Pitch PCB Screw Terminals Blocks Connector
Product Describle:
Type:KF128-2.54mm,KF120-2.54mm,KF350-3.5mm,KF639-3.96mm,KF127-5.0mm,KF129-5.08mm,KF301-5.0mm,KF128-7.5mm
Pitch:2.54mm,3.5mm,3.96mm,5.0mm,5.08mm,7.5mm
Pin: 2Pin 3Pin 4Pin
Quantity:10Pcs/Lot x 2P/3P/4P Screw Terminal Block Wire Connector
KF128-2.54mm-2P/3P/4Pin
Rated Voltage: 150V
Rated Current: 6A
Wire Range: 26-18 AWG
Color: Green
Pitch: 2.54mm/0.1″
Pin: 2Pin 3Pin 4Pin
Type:No-Splicing
KF350-3.5mm-2P/3P
Specifications:
Product Name: Terminal Blocks
Position: 2P 3P
Rated Value: AC300V 10A
Terminal Pitch: 3.96mm/0.16inch
Material: Plastic,Metal
Main Color: Silver Tone, Green Descriptions:
– 2 Positions, 3.96mm pitch, screw PCB terminal blocks connector.
– PCB terminal is widely used in almost all electronic equipment, such as small electronic watches, calculators, general computer, communication electronics equipment,etc.
– Easy to install and detach.
KF396-3.96mm-2P/3P
Specifications:
Product Name: Terminal Blocks
Position: 2P 3P
Rated Value: AC300V 10A
Terminal Pitch: 3.96mm/0.16inch
Material: Plastic,Metal
Main Color: Silver Tone, Green
Descriptions:
– 2 Positions, 3.96mm pitch, screw PCB terminal blocks connector.
– PCB terminal is widely used in almost all electronic equipment, such as small electronic watches, calculators, general computer, communication electronics equipment,etc.
– Easy to install and detach.
KF127-5.0MM-2P/3P
Name:KF127 5.0mm 2Pin/3Pin PCB Screw Block Connector
Pins:2Pin,3Pin
Supply Voltage: 300v
Type: Voltage Regulator
WIRE DIAMETER: 26-14AWG
KF129-5.08MM-2P/3P
Name: KF129 5.08MM 2Pin/3Pin Straight Pin Terminal
Type: KF129 5.08MM Terminals
Pitch: 5.08mm
Pin: 2Pin 3Pin
Rated voltage: 300V
Wire range: 28-12AWG
KF128-7.5MM-2P/3P
Name：KF128 7.5mm Pitch 2/3Pin Screw Pcb Terminal Connector
Pin: 2/3Pin
Pitch: 7.5mm
Color: Green
Rated Voltage/Current: 300V/10A
