IntroductionWhen it comes to the world of robotics and el...
• High Load Capacity :This load cell amplifier has a high load capacity of up to 20,000 kg, making it suitable for measuring heavy weights and forces.
• Versatile Usage :The product is versatile in its usage, it can be used to measure force, pressure, displacement, strain, and torque, making it a multi-purpose sensor.
• Digital Output :The load cell amplifier produces a digital output, ensuring accurate and precise measurements every time.
• Durable Material :Made from robust metal, this load cell amplifier is designed to withstand high loads and long-term use.
• Theory of Hall Sensor :Based on the theory of Hall sensor, this product provides reliable and accurate measurements, making it an essential tool for various applications.
• Two-Pack :This pack comes with two load cell amplifiers, providing you with more options and flexibility in your measurements.

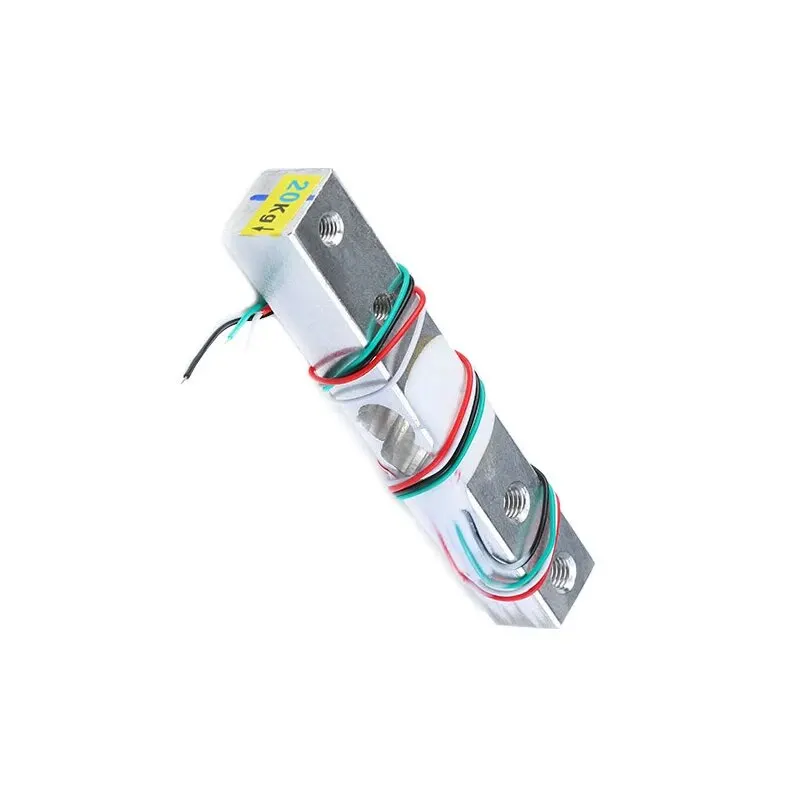

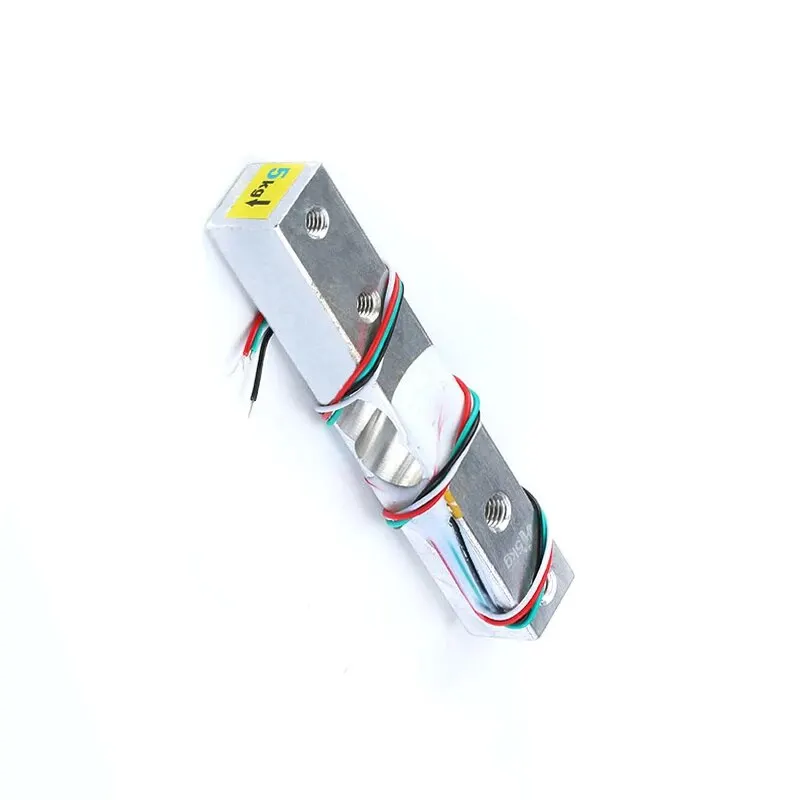

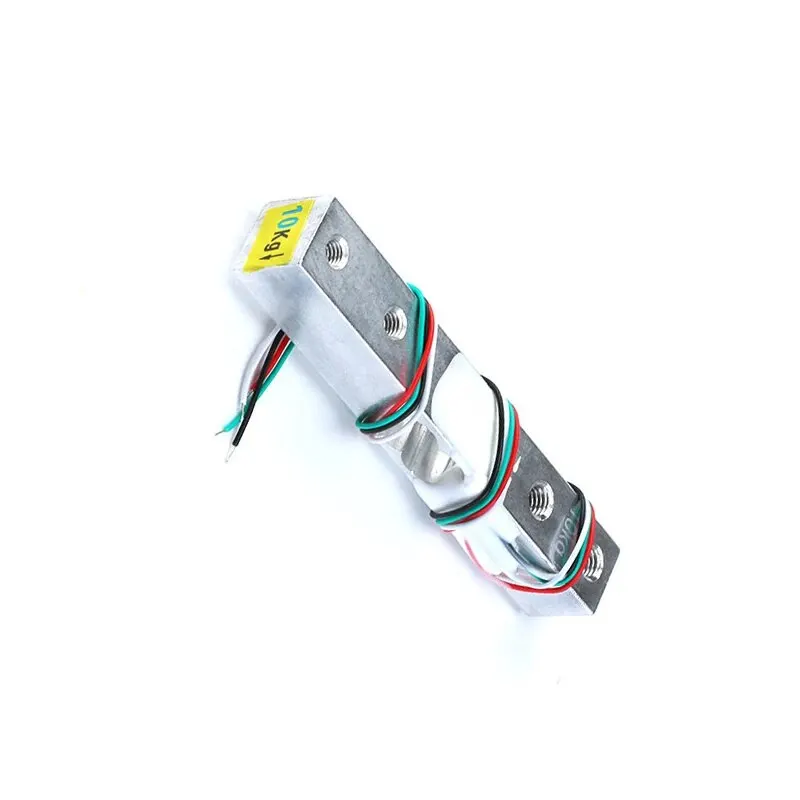

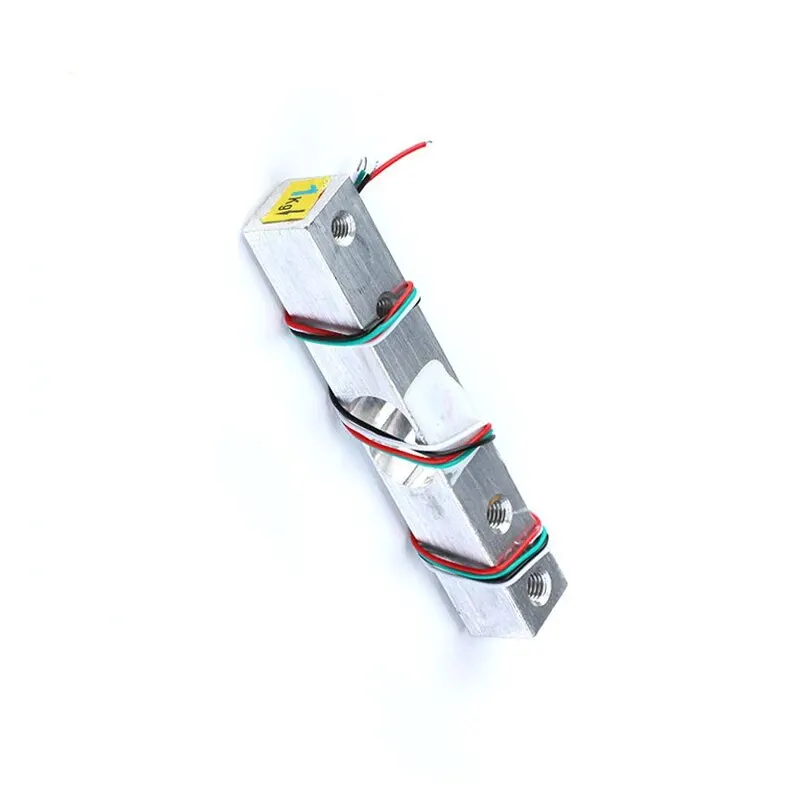

2pcs 1/5/10/20KG Load Cell Amplifier Weighing Sensor Module Used to Measure Force Pressure Displacement Strain Torque Acceleration
Features:
• 💎【1KG/5KG/10KG/20KG Load Cell Amplifier】: used to measure force, pressure, displacement, strain, torque, acceleration.
• ⚡【Voltage】：2.6 ~ 5.5V
• 🥇This module uses 24 high precision A/D converter chip hx711.
• 🥉Support Widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields
• The surface is anodized to make the product more lustrous and durable.Secondly, the product is protected by silica gel, which can protect against corrosion, moisture and aging.
• Widely used for electronic scales and balance material scales, jewelry scales and control system.
• Wire connection: red (exc +), Black (exc-) ,Green (Sen +), White (Sen-); sensitivity (MV/v):0.7 +/-0.15, error: +/-0.05 F.S.
Specifications:
-Differential input voltage : ±40mV ( Full-scale differential input voltage is ± 40mV )
-Data accuracy : 24 bit ( A/D converter chip )
-Refresh frequency: 80 Hz
-Operating Voltage : 5V DC (2.6V ~ 5.5V)
-Operating current : <10 mA
-Operation supply voltage range: 2.7V ~ 5.5V
-Operation temperature range: -40 ~ +85℃
